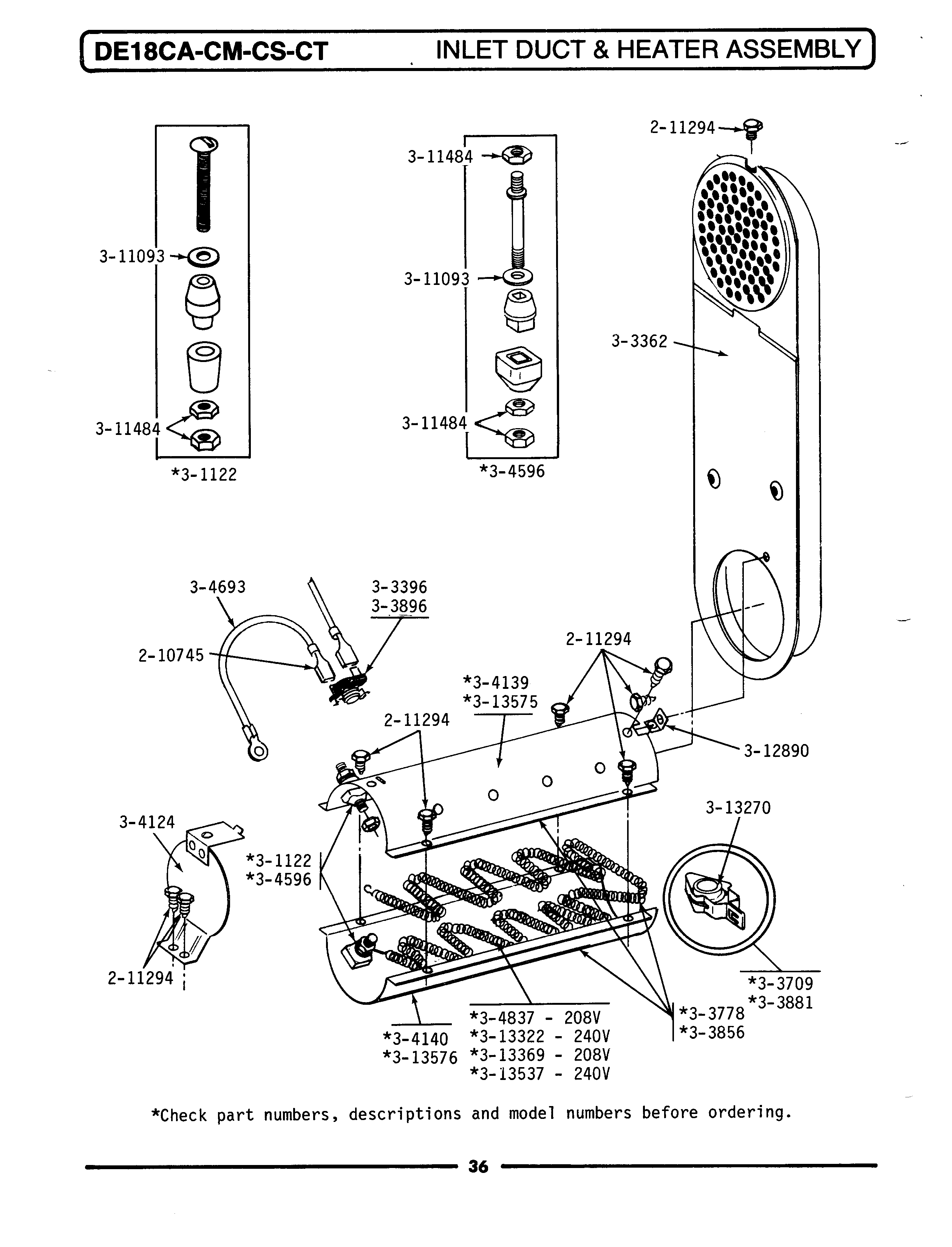

DE18CM 13 – INLET DUCT & HEATER ASSEMBLY

Products

Position	Product
001	MAY 210745
002	WP90767 Whirlpool Screw
003	Y304596 Whirlpool Terminal Insulator Assembly
004	MAY Y303362
005	WP303396 Whirlpool Thermostat
006	MAY 303709
007	MAY Y303778
008	MAY Y303856
009	WPY303881 Whirlpool Clip and Insulator
010	WP303896 Whirlpool High Limit Thermostat
011	MAY 304124
015	WPY304693 Whirlpool Wire Jumper
016	W10116793 Whirlpool Element
017	WP311093 Whirlpool Washer 7
018	WP112432 Whirlpool Nut Assembly
019	MAY Y312890
021	HEATER ELEMENT
022	DOWEL PIN FOR HANDLE
023	MAY Y313537
024	MAY Y313575
025	MAY Y313576
