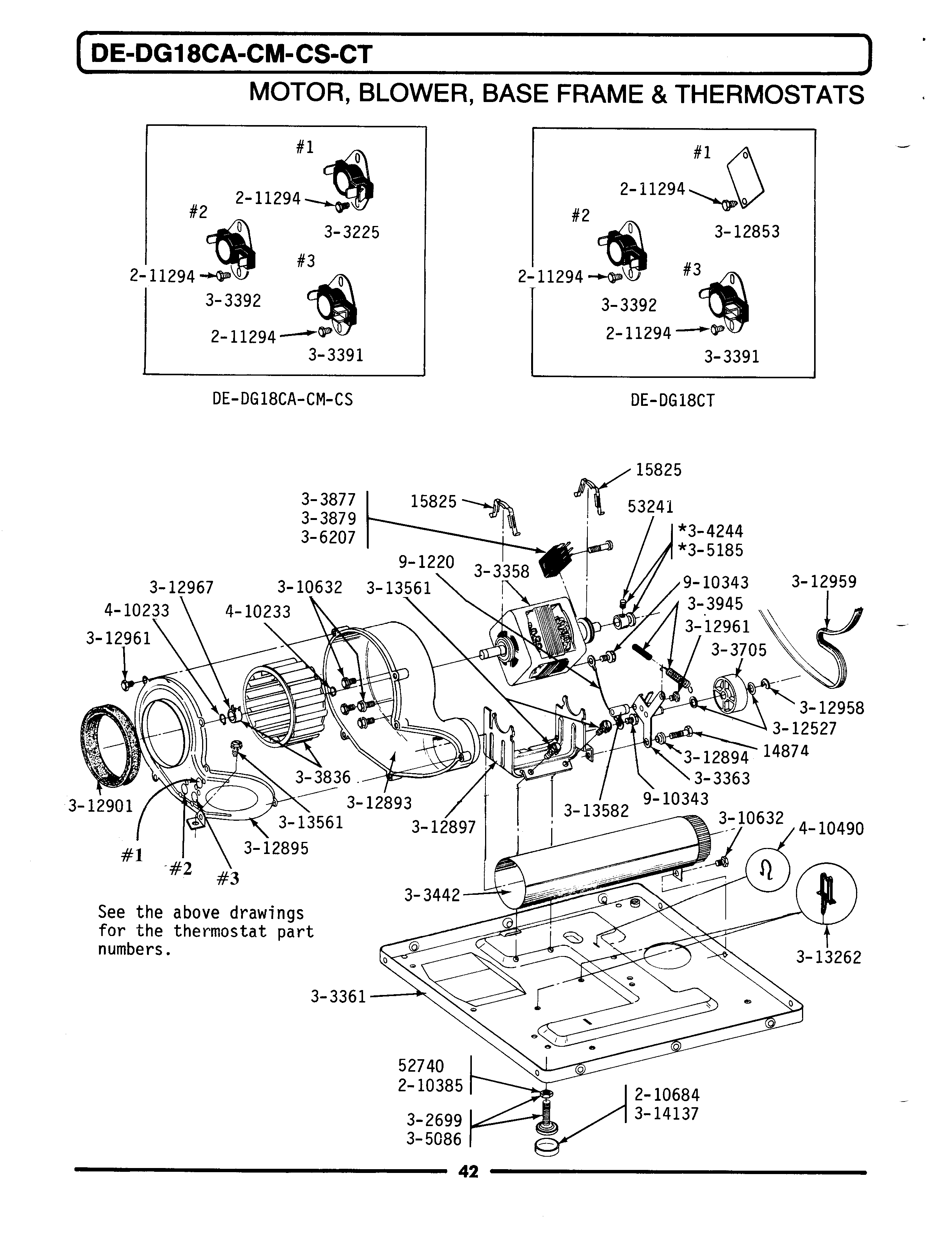

DE18CM 14 – MOTOR, BLOWER, BASE FRAME & THERMOSTATS

Products

PositionProduct
001WPY014874 Whirlpool Screw
002WPY015825 Whirlpool Motor Clip
003WP62739 Whirlpool Nut
004MAY Y053241
005WP210385 Whirlpool Lock Nut
006WP210684 Whirlpool Dishwasher Leveling Leg Pad
007WP90767 Whirlpool Screw
008LEG, ADJUSTABLE (W/NUT)—S
009PART NOT USED
010W10410999 Whirlpool Dryer Drive Motor
011MAY Y303361
012WP6-3033630 Whirlpool Dryer Idler Arm Assembly
013WP33303391 Whirlpool Thermostat
014WP694674 Whirlpool Cycling Thermostat
015MAY Y303442
016WP6-3037050 Whirlpool Idler Pulley
017Y303836 Whirlpool Dryer Blower Wheel
018MAY Y303877
019MAY Y303879
020MAY Y303945
021WP6-3042440 Whirlpool Motor Pulley
022MAY Y304245
023W10176519 Whirlpool Leveling Feet
024MAY Y305185
026MAY Y310632
027MAY Y312527
028MAY Y312893
029SLEEVE, IDLER ARM —-S
030MAY Y312895
031DOWEL PIN FOR HANDLE
032WPY312901 Whirlpool Blow Seal
033WP354987 Whirlpool C-Clip
034WPY312959 Whirlpool Dryer Drum Belt
035WPW10116751 Whirlpool Screw
036WP312967 Whirlpool Clamp
037MAY Y313262
038MAY Y313561
039WPW10116756 Whirlpool Spacer
040WPY314137 Whirlpool Rubber Foot
041WP9703438 Whirlpool Snap Retaining Ring
042MAY 410490
043MAY 901220
044MAY 910343
