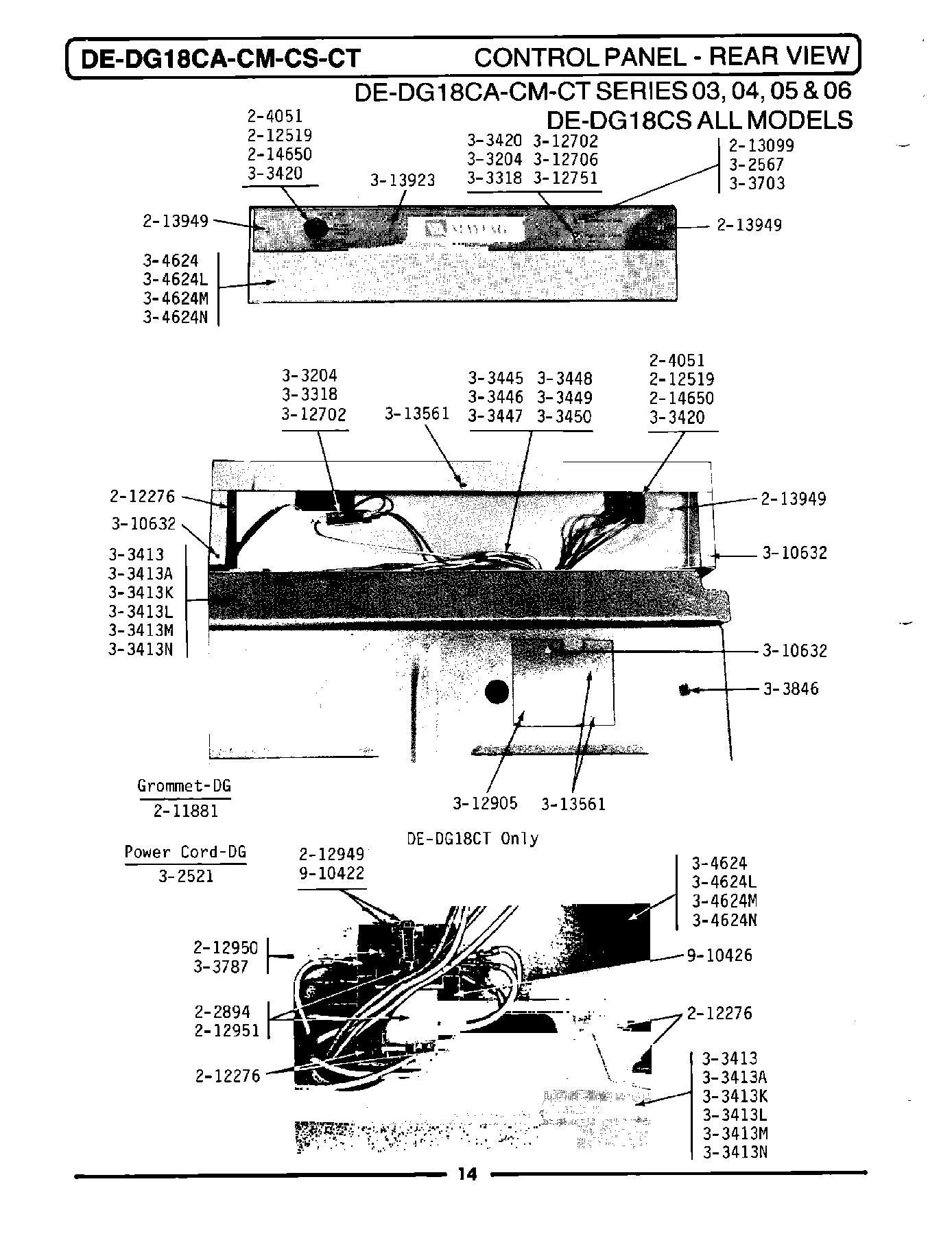

DE18CT 05 – CONTROL PANEL-REAR VIEW (SERIES 03)
Products
| Position | Product |
|---|---|
| 001 | MAY 202894 |
| 002 | MAY 204051 |
| 003 | GROMMET |
| 004 | MAY 212276 |
| 005 | MAY 212519 |
| 006 | SCREW, BUSHINGS |
| 007 | MAY 212950 |
| 008 | MAY 212951 |
| 009 | MAY 213099 |
| 010 | WP355214 Whirlpool Screw |
| 011 | SCREW FOR 2-4051 KNOB |
| 013 | MAY Y303318 |
| 017 | MAY Y303420 |
| 019 | MAY Y303787 |
| 024 | MAY Y310632 |
| 025 | PART NOT USED |
| 027 | MAY Y312702 |
| 028 | MAY Y312706 |
| 029 | WPW10139799 Whirlpool Washer |
| 030 | MAY Y312905 |
| 031 | MAY Y313561 |
| 034 | DOWEL PIN FOR HANDLE |
