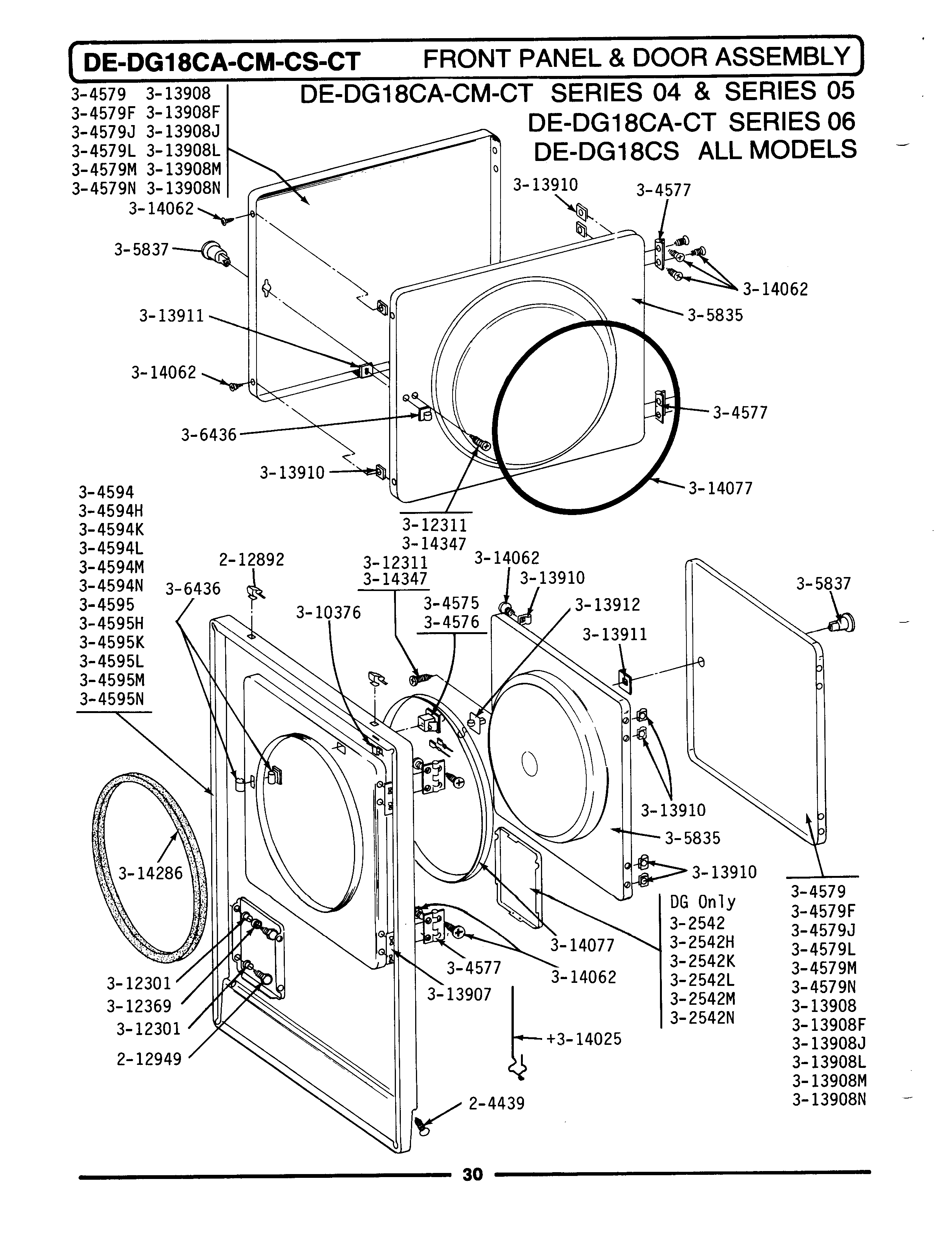

DE18CT 10 – FRONT PANEL & DOOR ASSEMBLY

Products

Position	Product
001	SCREW & FSTNER ASSY (FT. PNL)
002	MAY 212982
003	W10169313 Whirlpool Door Switch Kit
004	MAY Y304577
005	MAY Y304579
013	306436 Whirlpool Washer Dryer Door Catch and Plastic Strike
014	MAY Y310376
016	LABEL, LINT SCREEN INSTR.
017	MAY Y313907
018	MAY Y313908
021	CLIP, DOOR LINER
022	MAY Y313911
023	MAY Y313927
024	LATCH, ACCESS DOOR
026	MAY 314077
029	DOWEL PIN FOR HANDLE
