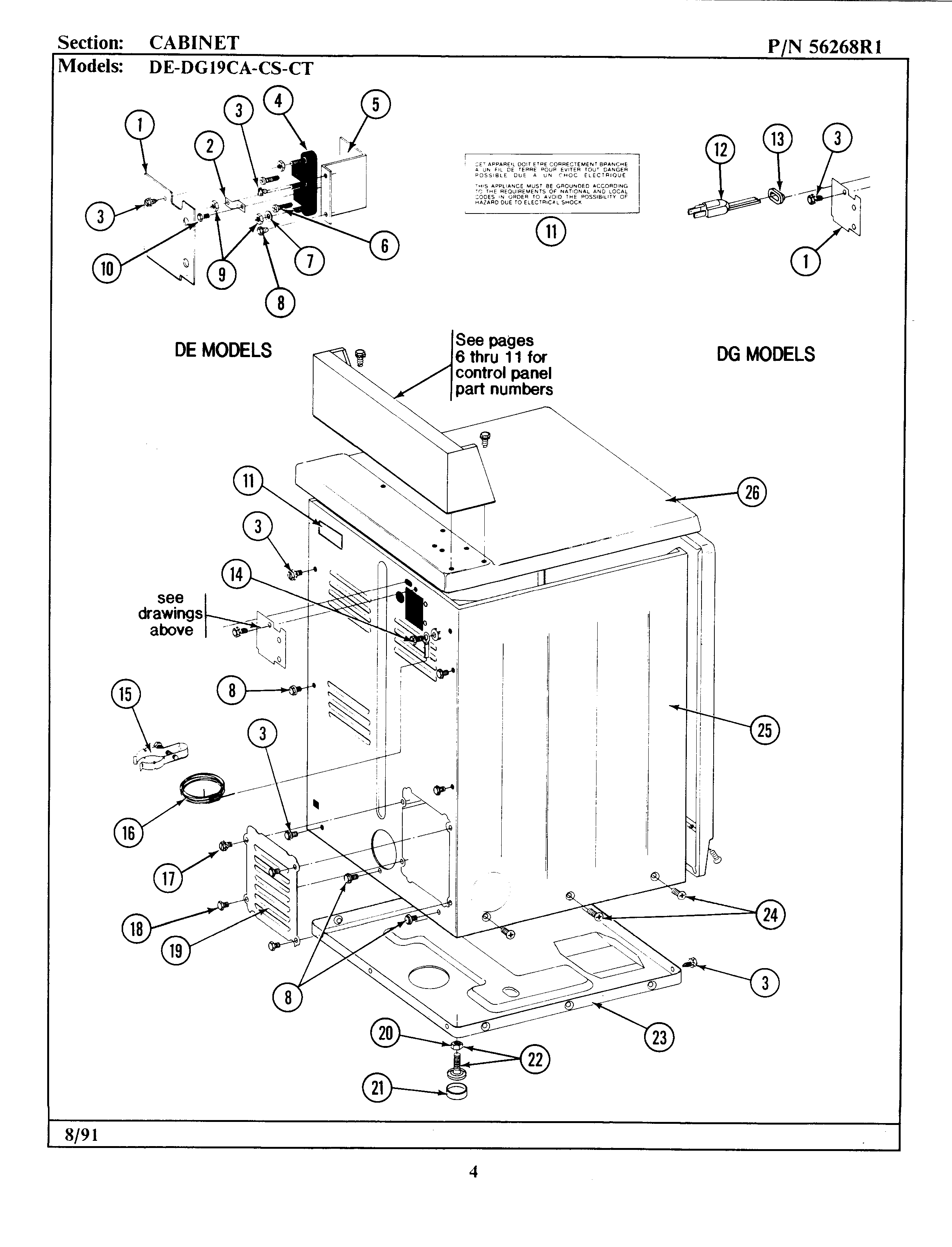

DE19CA 02 – CABINET-REAR

DE19CA 02 – CABINET-REAR

Written by

in

DE19CA 02 – CABINET-REAR

Products

PositionProduct
001MAY Y312905
002PART NOT USED
003MAY Y313561
004PART NOT USED
005PART NOT USED
006SCREW, No.10-24 X 3/4 INCH—–O
007WPY311270 Whirlpool Washer TE
008MAY Y310632
009WP112432 Whirlpool Nut Assembly
010PART NOT USED
011INSTRUCTION LABEL
012MAY 302521
013GROMMET
015MAY 301548
016WP311155 Whirlpool Wire Assembly
017MAY Y313559
018WP90767 Whirlpool Screw
019MAY Y312951
020WP62739 Whirlpool Nut
021WPY314137 Whirlpool Rubber Foot
022W10176519 Whirlpool Leveling Feet
023MAY Y303361
024213007 Whirlpool Screw #12
026DOWEL PIN FOR HANDLE
026MAY Y305190
