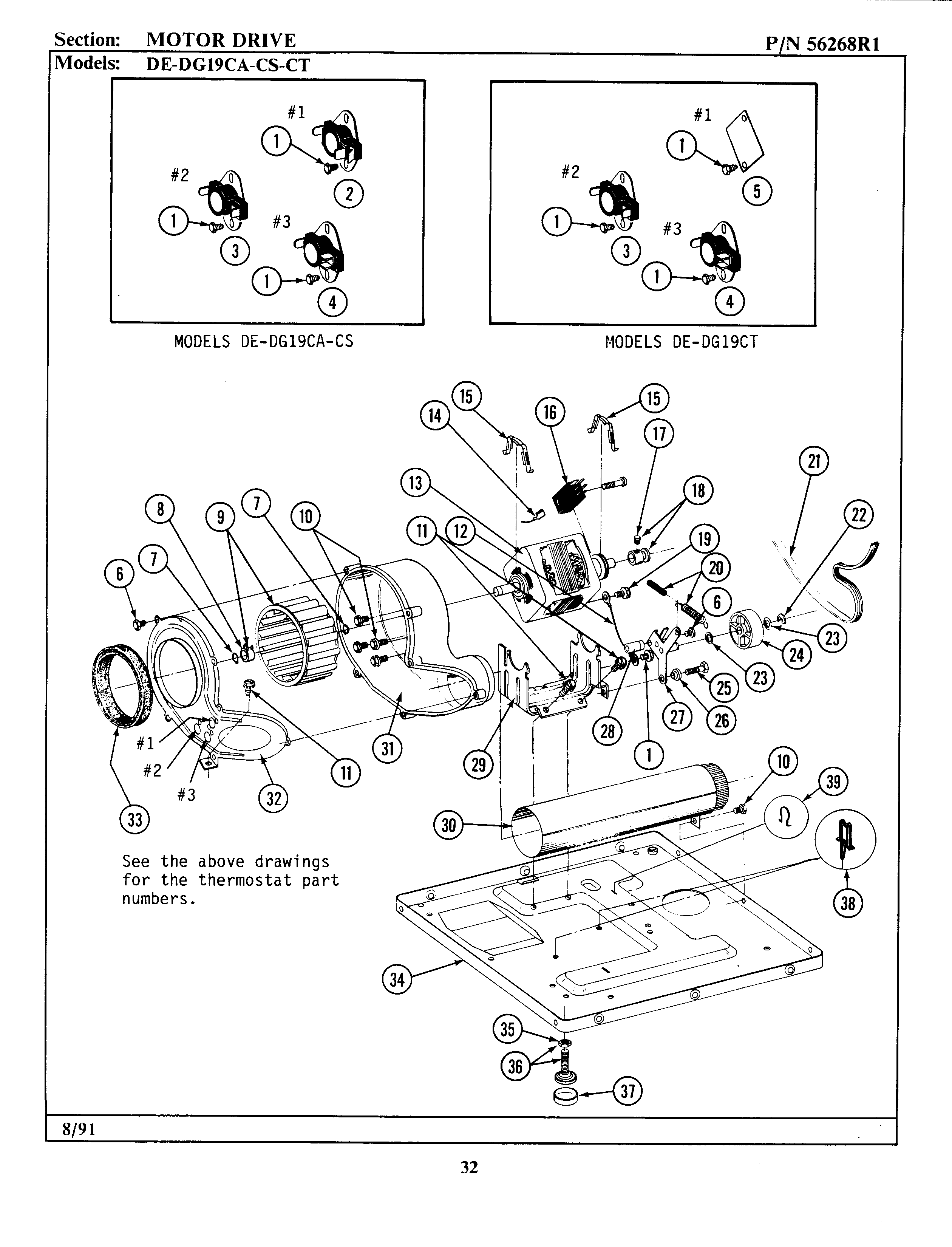

DE19CA 07 – MOTOR DRIVE

Products

Position	Product
001	WP90767 Whirlpool Screw
002	PART NOT USED
003	WP694674 Whirlpool Cycling Thermostat
004	WP33303391 Whirlpool Thermostat
005	MAY Y312853
006	WPW10116751 Whirlpool Screw
007	WP9703438 Whirlpool Snap Retaining Ring
008	WP312967 Whirlpool Clamp
009	Y303836 Whirlpool Dryer Blower Wheel
010	MAY Y310632
011	MAY Y313561
012	MAY 901220
013	W10410999 Whirlpool Dryer Drive Motor
015	WPY015825 Whirlpool Motor Clip
016	MAY Y303879
016	MAY Y303877
016	MAY 306207
017	MAY Y053241
018	MAY Y305185
019	MAY 910343
020	MAY Y303945
021	WPY312959 Whirlpool Dryer Drum Belt
022	WP354987 Whirlpool C-Clip
023	MAY Y312527
024	WP6-3037050 Whirlpool Idler Pulley
025	WPY014874 Whirlpool Screw
026	SLEEVE, IDLER ARM —-S
027	WP6-3033630 Whirlpool Dryer Idler Arm Assembly
028	WPW10116756 Whirlpool Spacer
029	DOWEL PIN FOR HANDLE
030	MAY Y303442
031	MAY Y312893
032	COVER FOR BLOWER HOUSING
033	WPY312901 Whirlpool Blow Seal
034	MAY Y303361
035	WP62739 Whirlpool Nut
036	W10176519 Whirlpool Leveling Feet
037	WPY314137 Whirlpool Rubber Foot
038	MAY Y313262
039	MAY 410490
