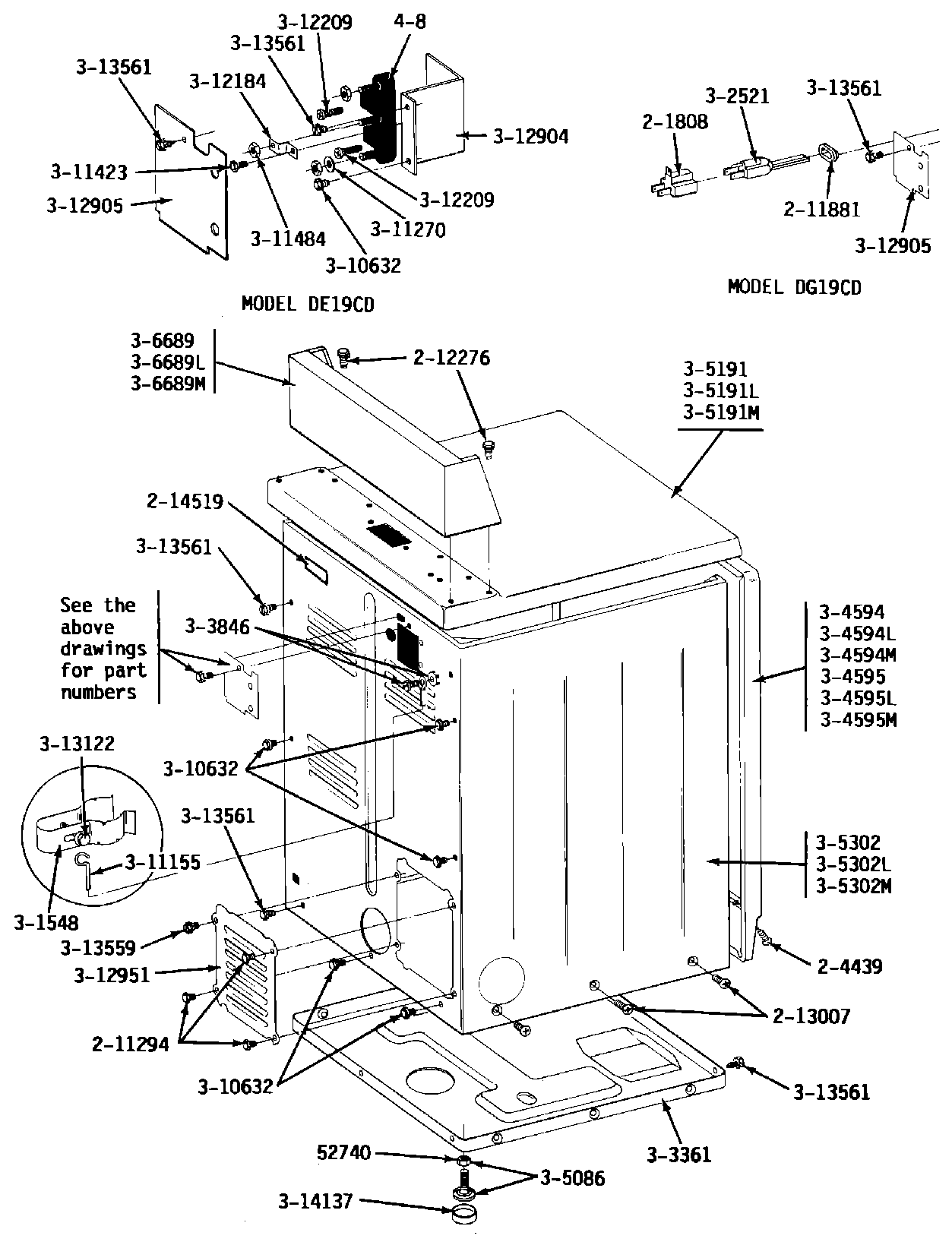

DE19CD 02 – REAR VIEW

DE19CD 02 – REAR VIEW

Written by

in

DE19CD 02 – REAR VIEW

Products

PositionProduct
001WP62739 Whirlpool Nut
002MAY Y201808
003SCREW & FSTNER ASSY (FT. PNL)
004WP90767 Whirlpool Screw
006MAY 212276
007213007 Whirlpool Screw #12
009MAY 301548
011MAY Y303361
019W10176519 Whirlpool Leveling Feet
020MAY Y305191
028DOWEL PIN FOR HANDLE
029MAY Y310632
030WP311155 Whirlpool Wire Assembly
031WPY311270 Whirlpool Washer TE
032PART NOT USED
033WP112432 Whirlpool Nut Assembly
034PART NOT USED
035SCREW, No.10-24 X 3/4 INCH—–O
036PART NOT USED
037MAY Y312905
038MAY Y312951
039MAY 313122
040MAY Y313559
041MAY Y313561
042WPY314137 Whirlpool Rubber Foot
043PART NOT USED
