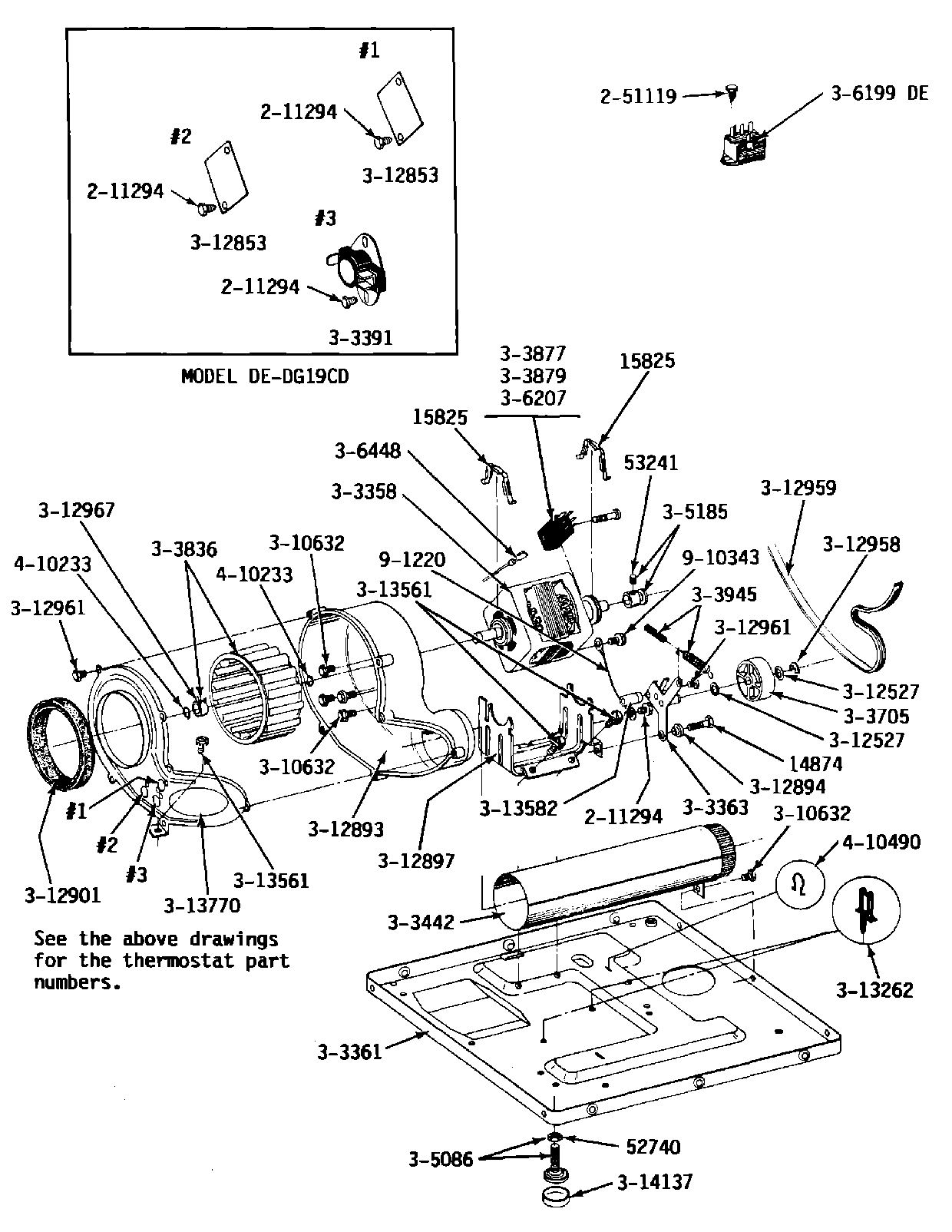

DE19CD 06 – MOTOR, BLOWER, BASE FRAME & THERMOSTATS

DE19CD 06 – MOTOR, BLOWER, BASE FRAME & THERMOSTATS

Written by

in

DE19CD 06 – MOTOR, BLOWER, BASE FRAME & THERMOSTATS

Products

PositionProduct
001WPY014874 Whirlpool Screw
002WPY015825 Whirlpool Motor Clip
003WP62739 Whirlpool Nut
004MAY Y053241
005WP90767 Whirlpool Screw
006W10410999 Whirlpool Dryer Drive Motor
007MAY Y303361
008WP6-3033630 Whirlpool Dryer Idler Arm Assembly
009WP33303391 Whirlpool Thermostat
010MAY Y303442
011WP6-3037050 Whirlpool Idler Pulley
012Y303836 Whirlpool Dryer Blower Wheel
013MAY Y303877
014MAY Y303879
015MAY Y303945
016W10176519 Whirlpool Leveling Feet
017MAY Y305185
020MAY 306199
021WP3177991 Whirlpool Screw
022MAY Y310632
023MAY Y312527
024MAY Y312853
025MAY Y312893
026SLEEVE, IDLER ARM —-S
027DOWEL PIN FOR HANDLE
028WPY312901 Whirlpool Blow Seal
029WP354987 Whirlpool C-Clip
030WPY312959 Whirlpool Dryer Drum Belt
031WPW10116751 Whirlpool Screw
032WP312967 Whirlpool Clamp
033MAY Y313262
034MAY Y313561
035WPW10116756 Whirlpool Spacer
036COVER FOR BLOWER HOUSING
037WPY314137 Whirlpool Rubber Foot
038WP9703438 Whirlpool Snap Retaining Ring
039MAY 410490
040MAY 901220
041MAY 910343
