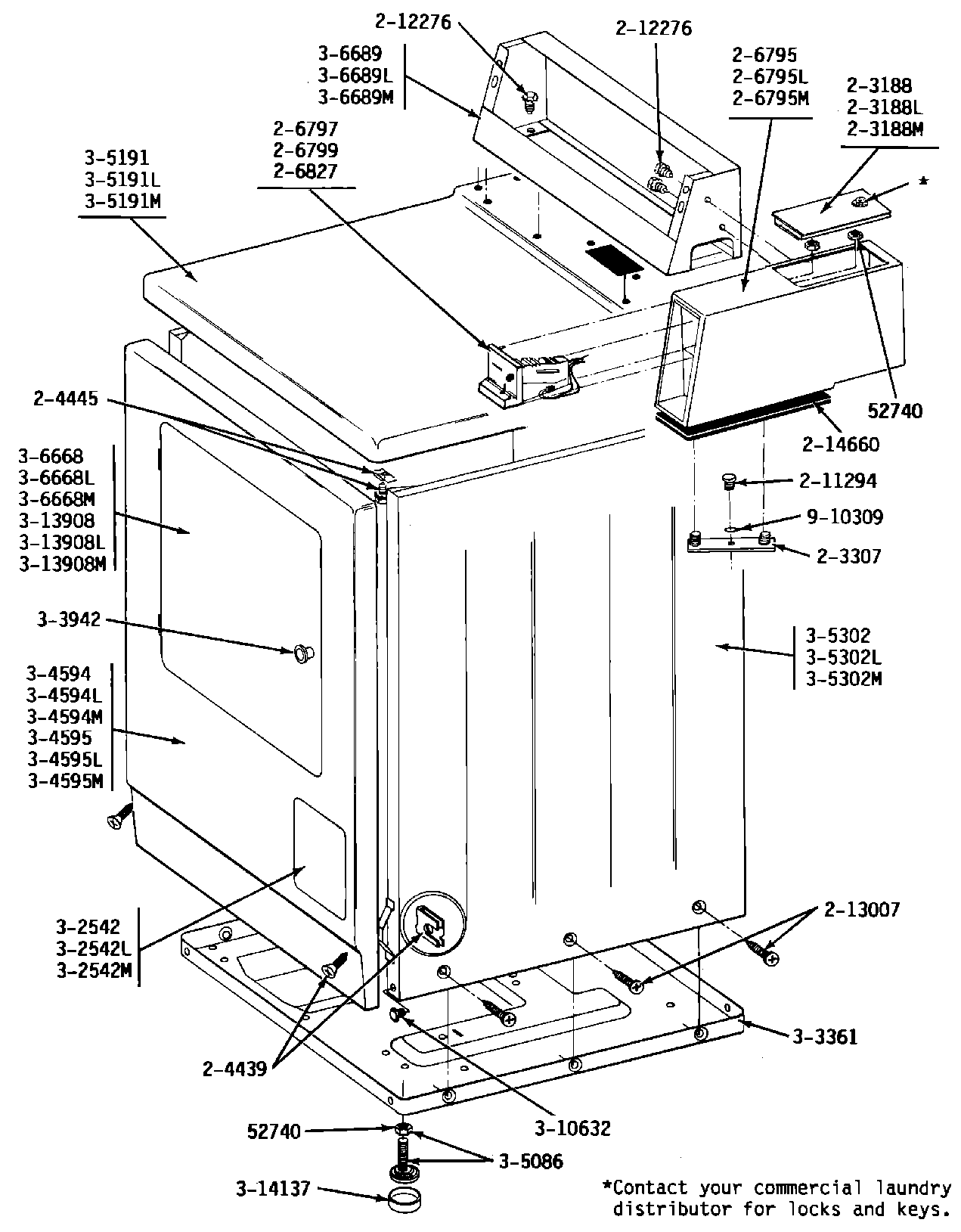

DE19CD 07 – FRONT VIEW

DE19CD 07 – FRONT VIEW

Written by

in

DE19CD 07 – FRONT VIEW

Products

Position	Product
001	WP62739 Whirlpool Nut
002	MAY 203188
003	ACCESS DOOR-ALMOND
004	MAY 203188M
006	SCREW & FSTNER ASSY (FT. PNL)
007	MAY 204445
008	MAY 206795
009	MAY 206795L
012	MAY 206799
014	WP90767 Whirlpool Screw
015	MAY 212276
016	213007 Whirlpool Screw #12
017	MAY 214660
018	MAY Y303361
023	W10176519 Whirlpool Leveling Feet
024	MAY Y305191
030	DOOR
036	MAY Y310632
037	MAY Y313908
039	DOWEL PIN FOR HANDLE
040	WPY314137 Whirlpool Rubber Foot
041	MAY 910309
