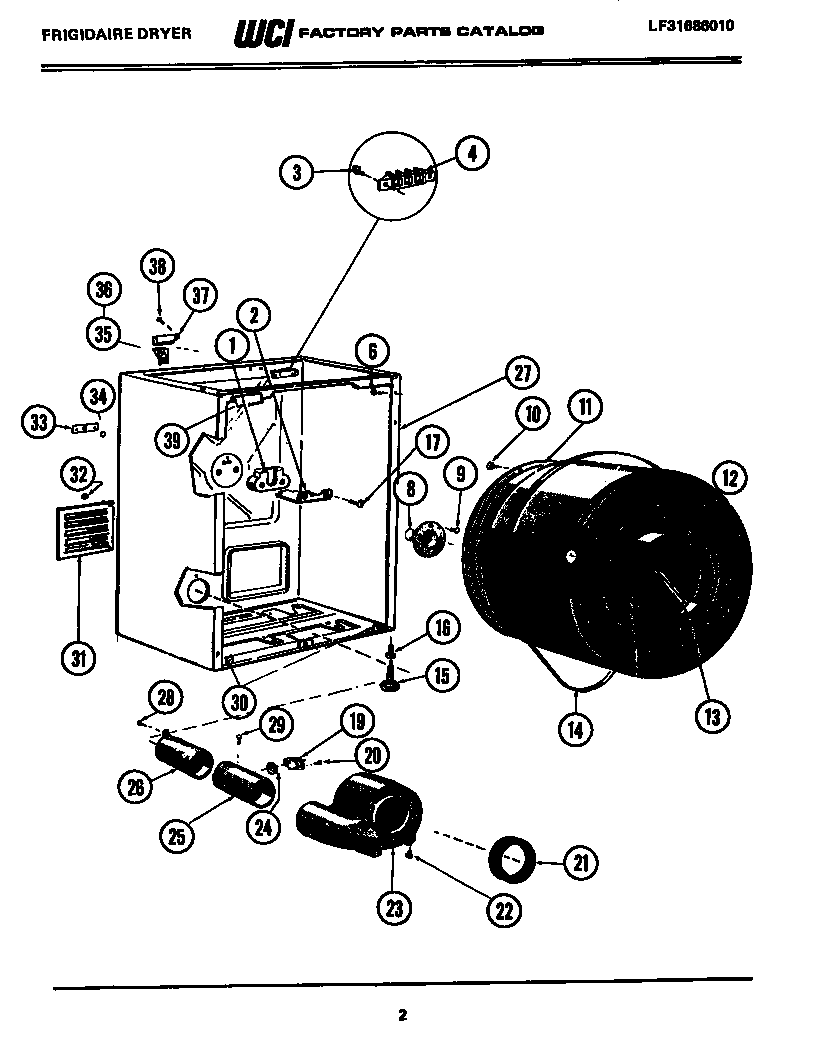

DE2000D-L1 02 – CABINET AND COMPONENT PARTS

Products

Position	Product
*18602	WCI 08027416
1	131825900 Frigidaire Dryer Rear Drum Bearing Support Cup White
2	131724301 Frigidaire Dryer Drum Bearing Bracket
3	WCI 08015309
4	134101400 Frigidaire Dryer Kit Terminal Block
8	5303931781 Frigidaire Shaft
9	WCI 08015361
10	WCI 08015311
11	3204254 Frigidaire Baffle Assembly
12	WCI 08015433
13A	WCI 08015426
13B	SCREW
13	WCI 08015427
14	5303281154 Frigidaire Dryer Belt (Flat Style)
15	WCI 08027409
16	WCI 08027411
17	131205400 Frigidaire Screw
19	WCI 08027446
21	134417000 Frigidaire Seal
22	WCI 08015296
23	WCI 08015248
24	WCI 08015417
25	WCI 08027408
26	WCI 08015262
27	WCI 08027414
27	WCI 08027413
28	SCREW
30	WCI 08027412
31	WCI 08015170
32	SCREW (2)
33	5303281020 Frigidaire Ball Clip
34	5303281019 Frigidaire Ball Assembly
35	WCI 08015216
36	WCI 08002881
37	WCI 08027447
38	WCI 08015285
39	WCI 08027415
