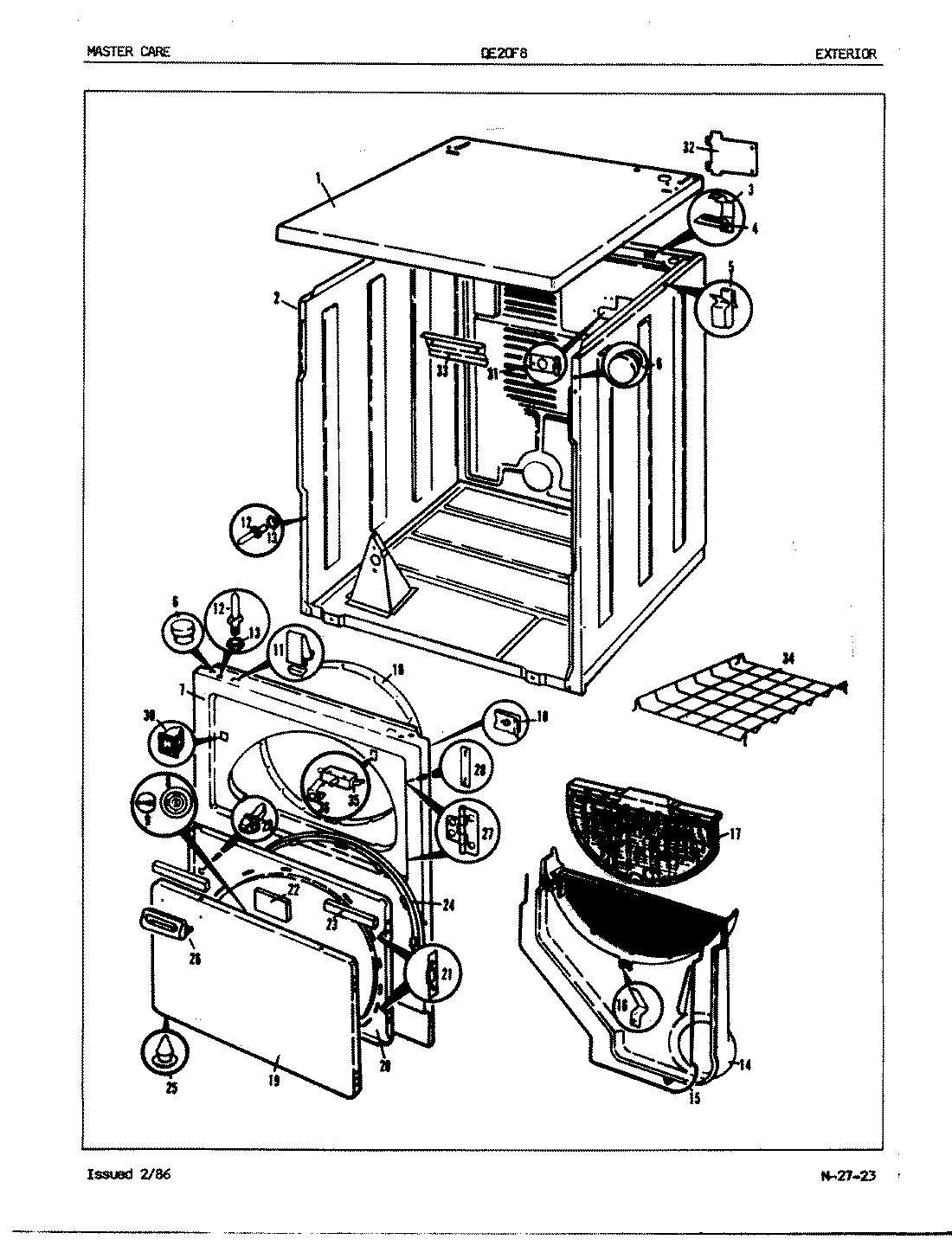

DE20F8AM 05 – EXTERIOR (REV. A-H)

Products

Position	Product
1	MAY 53-0124-24
2	MAY 53-0667-24
3	MAY 63-5712
4	WP90767 Whirlpool Screw
4	MAY 33-0930
5	MAY 25-3034
6	MAY 33-2653
7	MAY 53-0126-24
10	WP489478 Whirlpool Refrigerator Screw
10	MAY 25-7817
11	WP25-7220 Whirlpool Cabinet Clip
12	MAY 63-6148
13	MAY 25-0224
13	MAY 53-0200
14	MAY 53-0917
15	MAY 53-0204
16	MAY 53-0123
17	WP53-0701 Whirlpool Lint Screw
17	WP53-0918 Whirlpool Lint Filter
18	MAY 53-0282
19	MAY 53-0154-24
20	MAY 53-0740
20	MAY 53-0104
21	MAY 53-0119
22	MAY 53-0251
23	MAY 53-0252
24	WP31001529 Whirlpool Door Seal
24	MAY 25-7770
25	MAY 25-3534
26	MAY 53-0116
26	MAY 25-7810
27	MAY 53-0122
28	LA-1003 Whirlpool Dryer Door Catch and Metal Strike
28	W10756178 Whirlpool Screw
28	MAY 53-0121
29	MAY 73-0033
30	MAY 53-0882
31	WP489483 Whirlpool Screw
31	MAY 53-0135
32	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
32	MAY 53-0136
33	MAY 25-3457
33	MAY 53-0133
34	MAY 53-0772
34	MAY LA-1005
35	MAY 53-0148
36	MAY 63-5990
