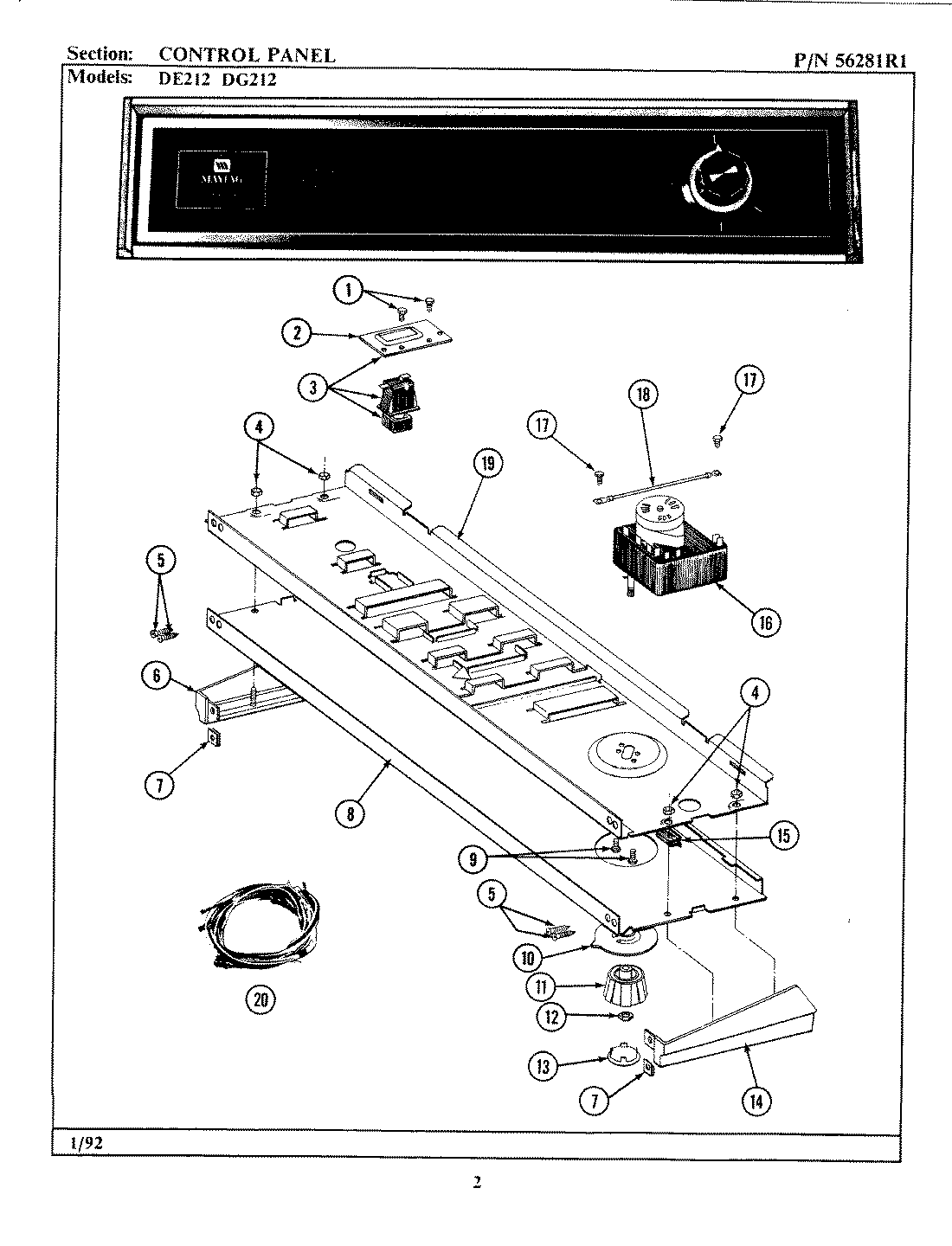

DE212 01 – CONTROL PANEL

DE212 01 – CONTROL PANEL

Written by

in

DE212 01 – CONTROL PANEL

Products

Position	Product
1	WPW10139210 Whirlpool Screw
2	BRACKET FOR START SWITCH
3	SWITCH, PUSH/TO/START W/BKT
4	MAY 214872
5	MAY 210932
6	MAY 214815
7	MAY 214894
8	MAY 306380
8	MAY 305880
9	MAY 910708
10	MAY 314422
11	MAY 314421
12	W10155650 Whirlpool Nut
13	MAY 215164
14	MAY 214816
15	MAY 214897
16	TIMER
17	WP90767 Whirlpool Screw
18	MAY 204807
19	BACK UP PLATE
20	MAY 305337
20	MAY 306813
20	MAY 306819
