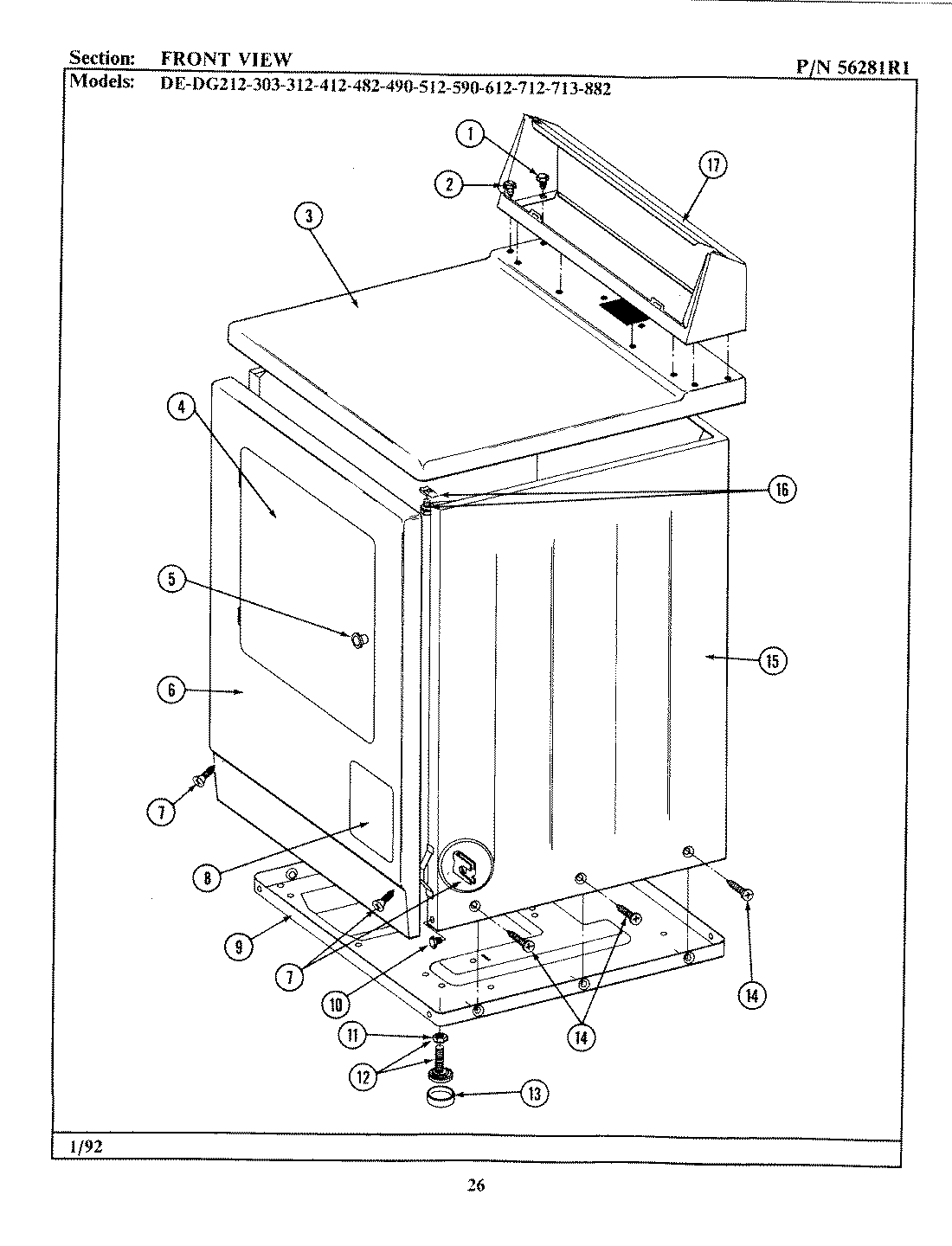

DE212 04 – FRONT VIEW

DE212 04 – FRONT VIEW

Written by

in

DE212 04 – FRONT VIEW

Products

PositionProduct
1MAY 211194
2MAY Y313559
3TOP COVER ASSY. (WHT)
4DOOR
5MAY 303942
6MAY 304595
7SCREW & FSTNER ASSY (FT. PNL)
9MAY Y303361
10MAY Y310632
11WP62739 Whirlpool Nut
12W10176519 Whirlpool Leveling Feet
13WPY314137 Whirlpool Rubber Foot
14213007 Whirlpool Screw #12
15MAY 305302
16MAY 204445
17MAY Y305193
