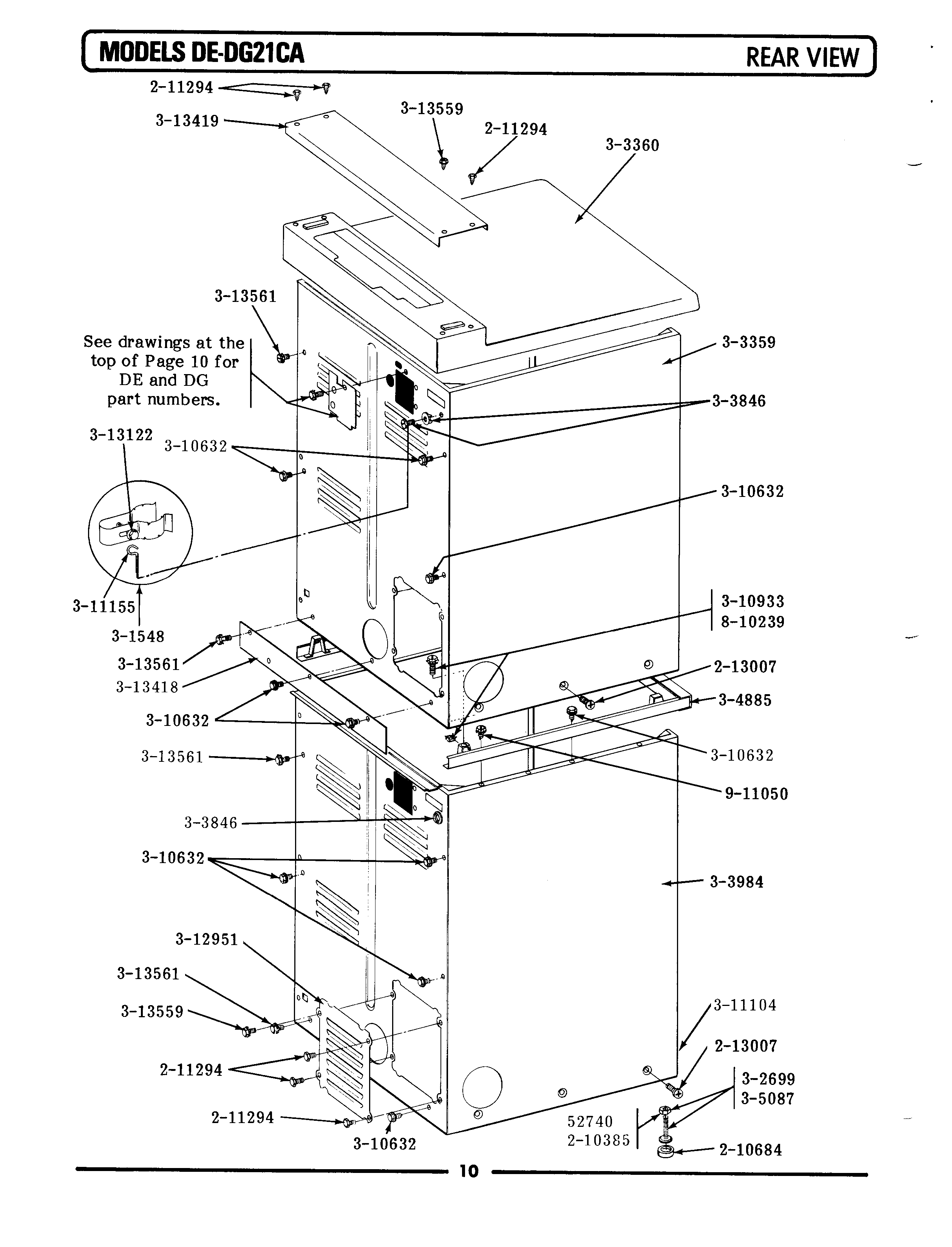

DE21CA 02 – REAR VIEW

Products

Position	Product
001	WP62739 Whirlpool Nut
002	WP210385 Whirlpool Lock Nut
003	WP210684 Whirlpool Dishwasher Leveling Leg Pad
004	WP90767 Whirlpool Screw
005	GROMMET
006	213007 Whirlpool Screw #12
007	MAY 301548
008	LEG, ADJUSTABLE (W/NUT)—S
014	MAY Y305087
015	MAY Y310632
016	MAY 310933
018	WP311155 Whirlpool Wire Assembly
019	WPY311270 Whirlpool Washer TE
020	PART NOT USED
021	WP112432 Whirlpool Nut Assembly
022	PART NOT USED
023	SCREW, No.10-24 X 3/4 INCH—–O
024	PART NOT USED
025	MAY Y312905
026	MAY Y312951
027	MAY 313122
030	MAY Y313559
031	MAY Y313561
032	PART NOT USED
033	DOWEL PIN FOR HANDLE
034	MAY 911050
