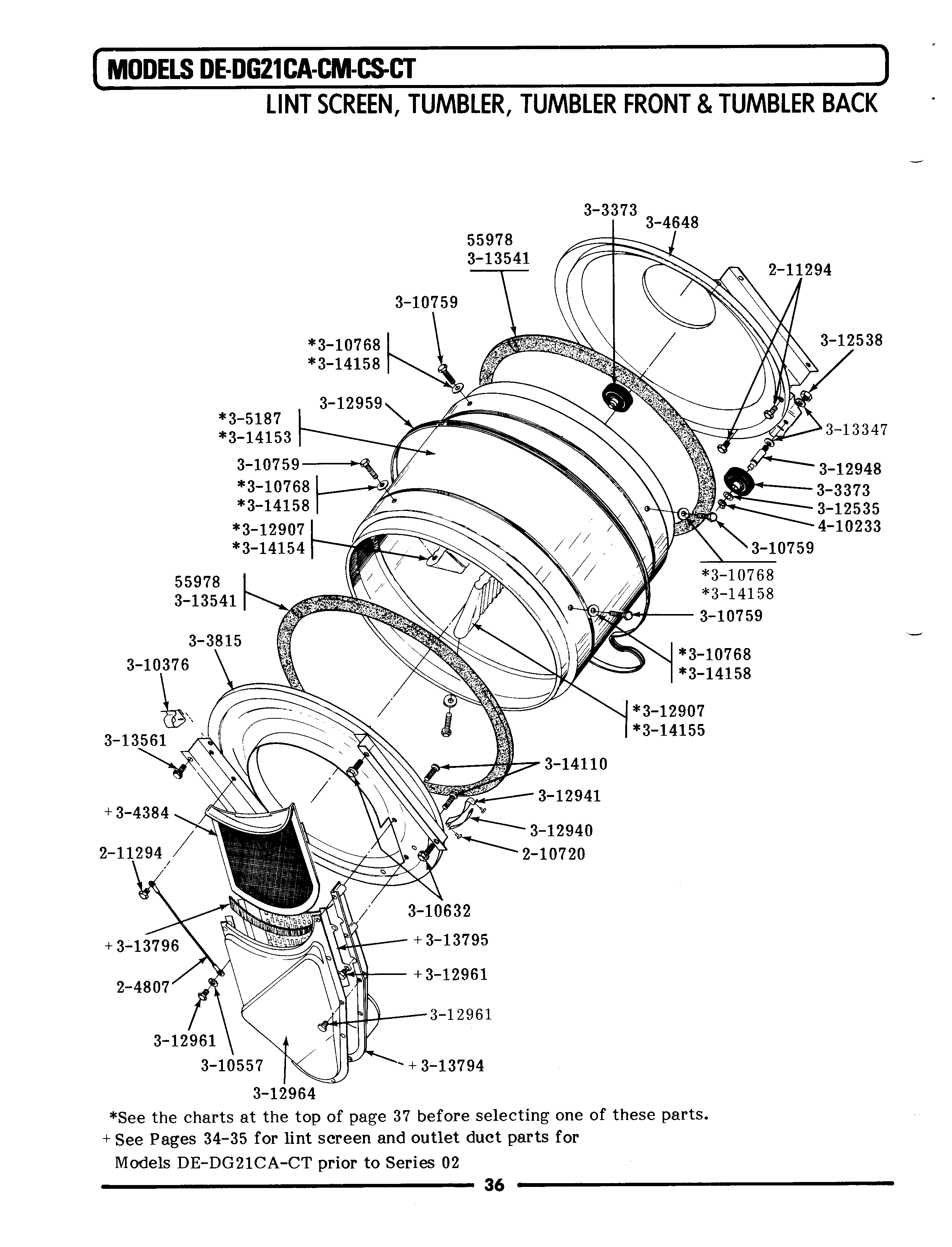

DE21CA 05 – LINT SCREEN, TUMBLER (FRONT & BACK)

DE21CA 05 – LINT SCREEN, TUMBLER (FRONT & BACK)

Written by

in

DE21CA 05 – LINT SCREEN, TUMBLER (FRONT & BACK)

Products

PositionProduct
001MAY Y053241
002MAY Y055978
003MAY 204807
004WP210720 Whirlpool Rivet
005WP90767 Whirlpool Screw
006MAY Y303373
007MAY Y303815
008WP6-3042440 Whirlpool Motor Pulley
009MAY Y304648
010MAY Y305185
011MAY 305187
012MAY Y310376
013MAY 310557
014MAY Y310632
015MAY Y310759
017WP312535 Whirlpool Washer
018MAY 312538
019MAY Y312907
020MAY 312940
021MAY 312941
022WP6-3129480 Whirlpool Roller Shaft
023WPY312959 Whirlpool Dryer Drum Belt
024WPW10116751 Whirlpool Screw
025MAY Y312964
027MAY Y313541
028MAY Y313561
029MAY Y313794
030SCREW, INLET DUCT —-S
031MAY Y314153
032DOWEL PIN FOR HANDLE
033MAY 314155
034MAY 314158
035WP9703438 Whirlpool Snap Retaining Ring
