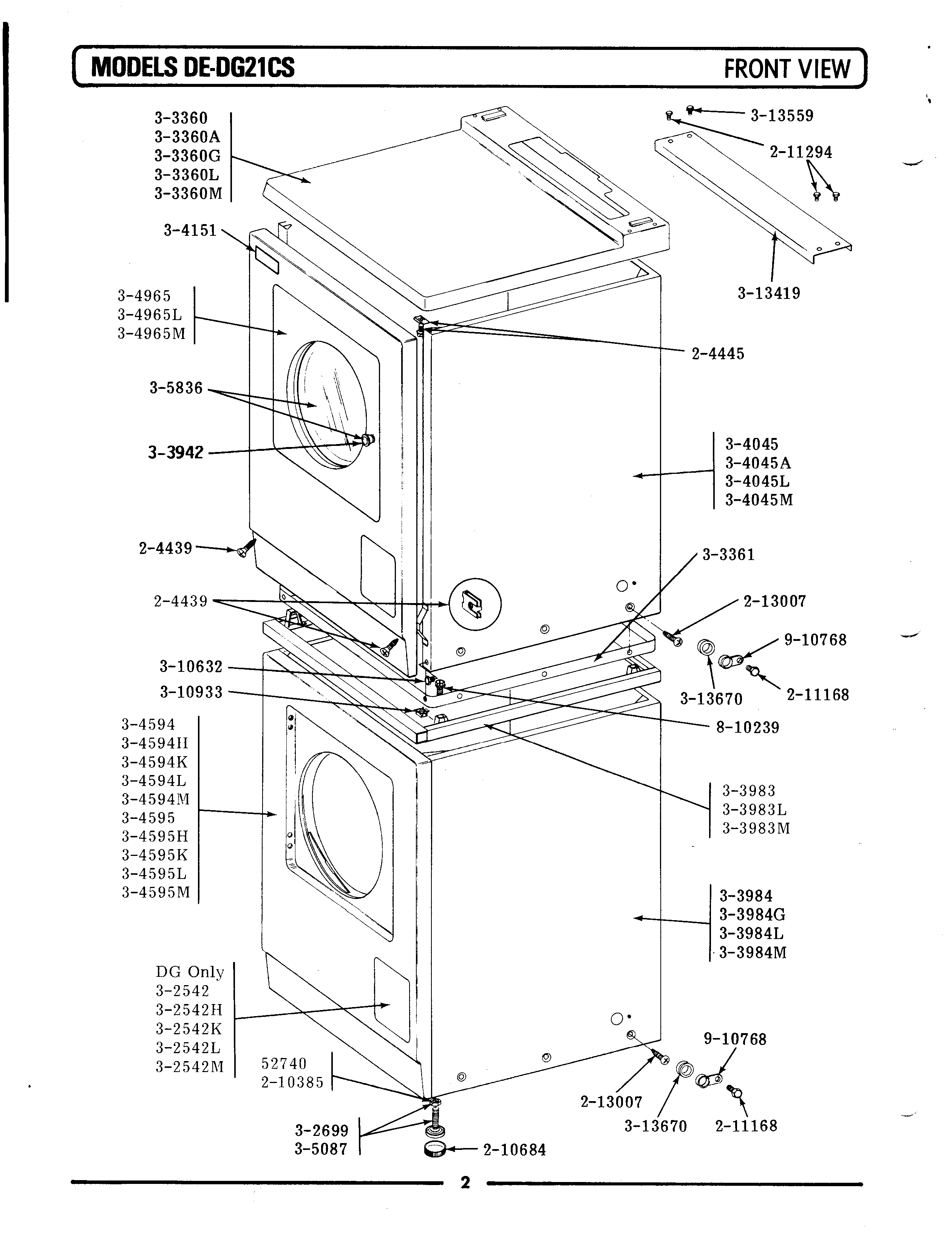

DE21CM 01 – FRONT VIEW

DE21CM 01 – FRONT VIEW

Written by

in

DE21CM 01 – FRONT VIEW

Products

PositionProduct
001WP62739 Whirlpool Nut
002SCREW & FSTNER ASSY (FT. PNL)
003MAY 204445
004WP210385 Whirlpool Lock Nut
005WP210684 Whirlpool Dishwasher Leveling Leg Pad
006WPW10139210 Whirlpool Screw
007WP90767 Whirlpool Screw
008213007 Whirlpool Screw #12
009LEG, ADJUSTABLE (W/NUT)—S
011MAY Y303361
015MAY 304045
018MAY Y305087
019MAY Y310632
020MAY 310933
022MAY Y313559
023MAY 33001303
024DOWEL PIN FOR HANDLE
025CABLE STRAP-HARNESS TO BASE
