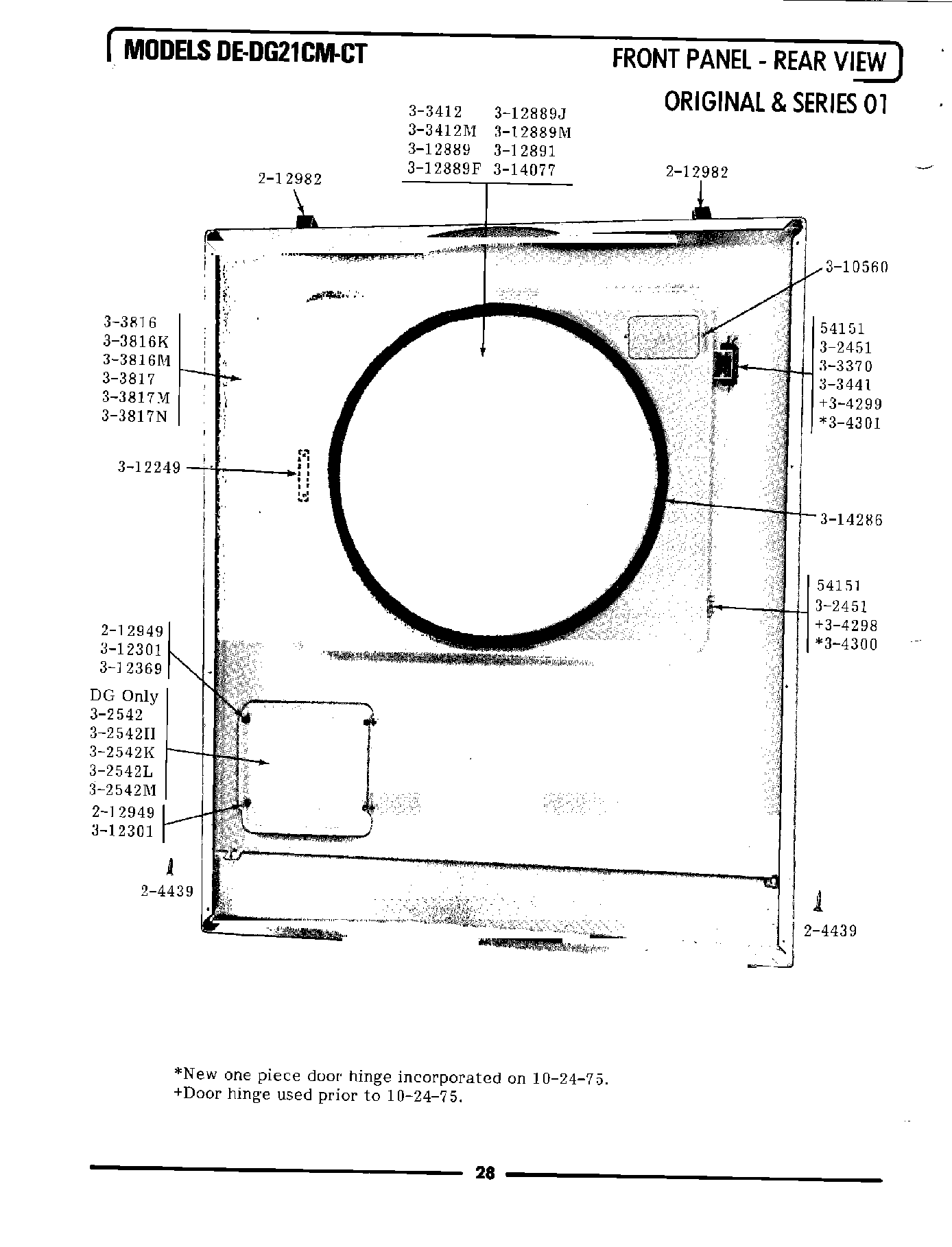

DE21CM 06 – FRONT PANEL-REAR VIEW
Products
| Position | Product |
|---|---|
| 002 | SCREW & FSTNER ASSY (FT. PNL) |
| 003 | SCREW, BUSHINGS |
| 004 | MAY 212982 |
| 006 | MAY Y303441 |
| 009 | MAY Y304298 |
| 013 | MAY 310560 |
| 016 | SLEEVE, ACCESS DOOR RUBBER |
| 018 | MAY Y312891 |
| 019 | LABEL, LINT SCREEN INSTR. |
| 020 | MAY Y313927 |
| 021 | MAY 314077 |
| 022 | DOWEL PIN FOR HANDLE |
