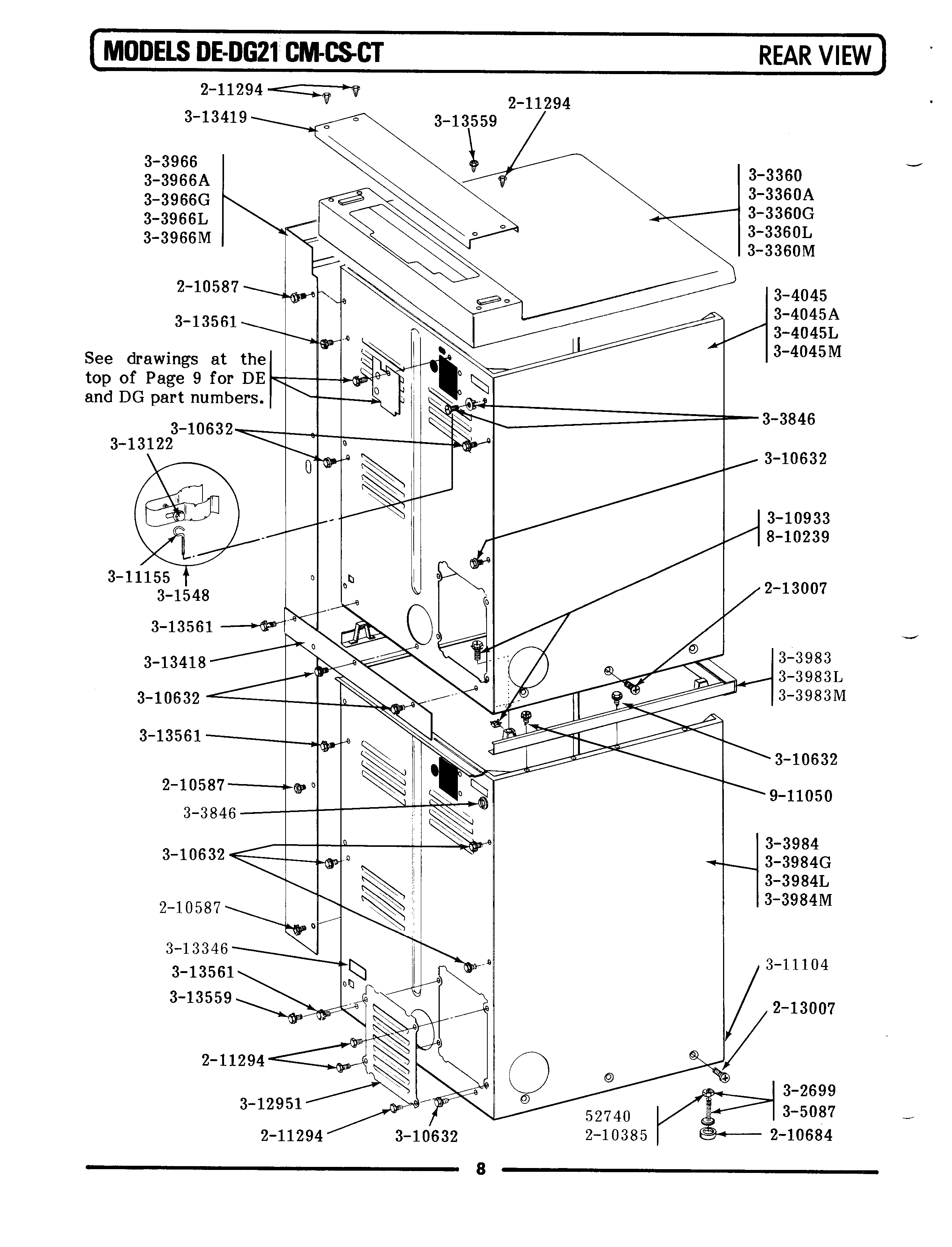

DE21CS 02 – REAR VIEW

Products

Position	Product
001	WP62739 Whirlpool Nut
002	WP210385 Whirlpool Lock Nut
003	WP210684 Whirlpool Dishwasher Leveling Leg Pad
005	WP90767 Whirlpool Screw
006	213007 Whirlpool Screw #12
007	MAY 301548
008	LEG, ADJUSTABLE (W/NUT)—S
014	MAY 304045
015	MAY Y305087
016	MAY Y310632
017	MAY 310933
019	WP311155 Whirlpool Wire Assembly
020	WPY311270 Whirlpool Washer TE
021	PART NOT USED
022	WP112432 Whirlpool Nut Assembly
023	PART NOT USED
024	SCREW, No.10-24 X 3/4 INCH—–O
025	PART NOT USED
026	MAY Y312905
027	MAY Y312951
028	MAY 313122
032	MAY Y313559
033	MAY Y313561
034	PART NOT USED
035	DOWEL PIN FOR HANDLE
036	MAY 911050
