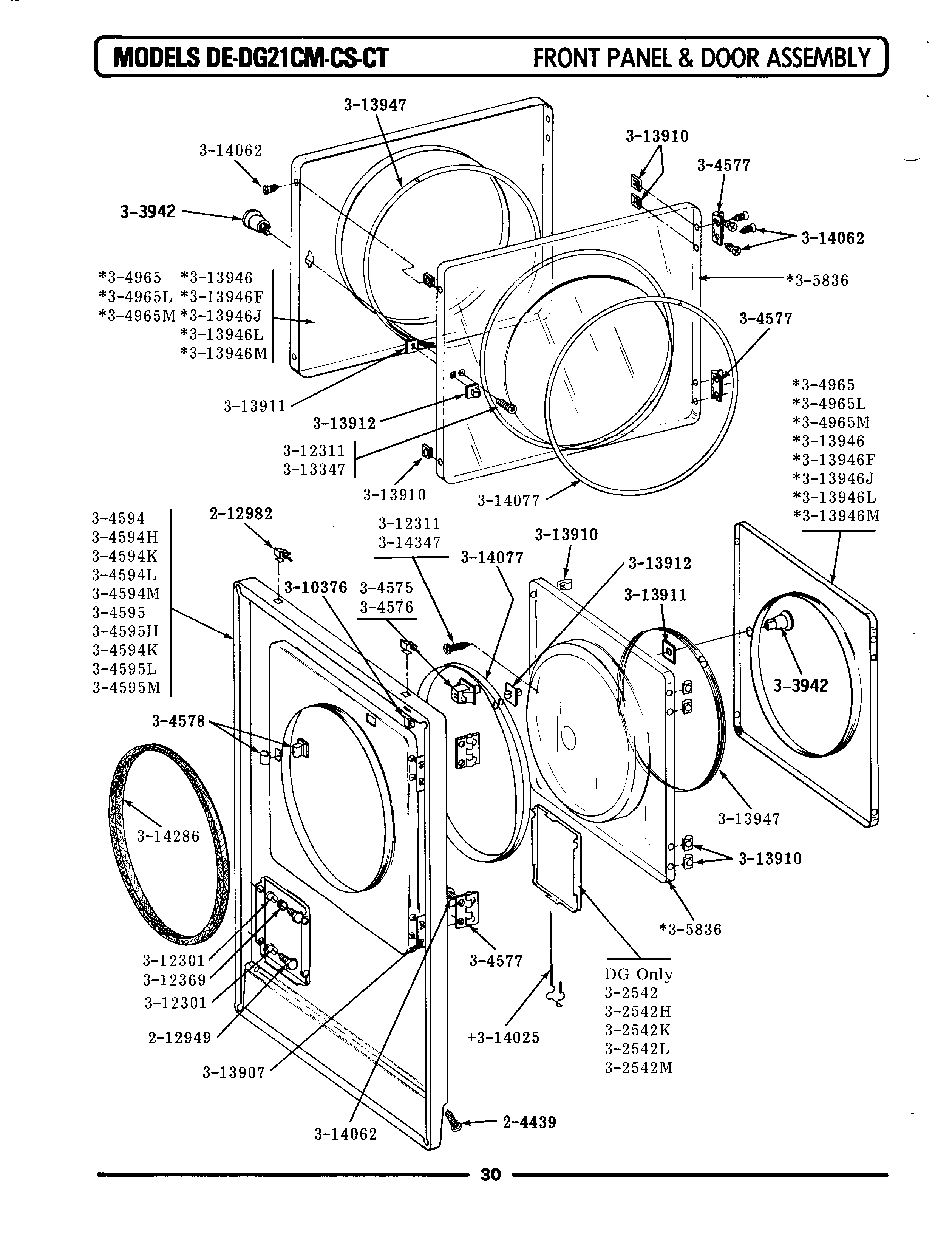

DE21CS 06 – FRONT PANEL & DOOR ASSEMBLY

DE21CS 06 – FRONT PANEL & DOOR ASSEMBLY

Written by

in

DE21CS 06 – FRONT PANEL & DOOR ASSEMBLY

Products

PositionProduct
001SCREW & FSTNER ASSY (FT. PNL)
002SCREW, BUSHINGS
003MAY 212982
004W10169313 Whirlpool Door Switch Kit
005MAY Y304577
006MAY Y304578
008MAY 304965
011MAY Y310376
014SLEEVE, ACCESS DOOR RUBBER
015LABEL, LINT SCREEN INSTR.
016MAY Y313907
017CLIP, DOOR LINER
018MAY Y313911
019MAY Y313912
020MAY Y313927
021MAY Y313946
022MAY Y313947
023LATCH, ACCESS DOOR
025MAY 314077
028DOWEL PIN FOR HANDLE
