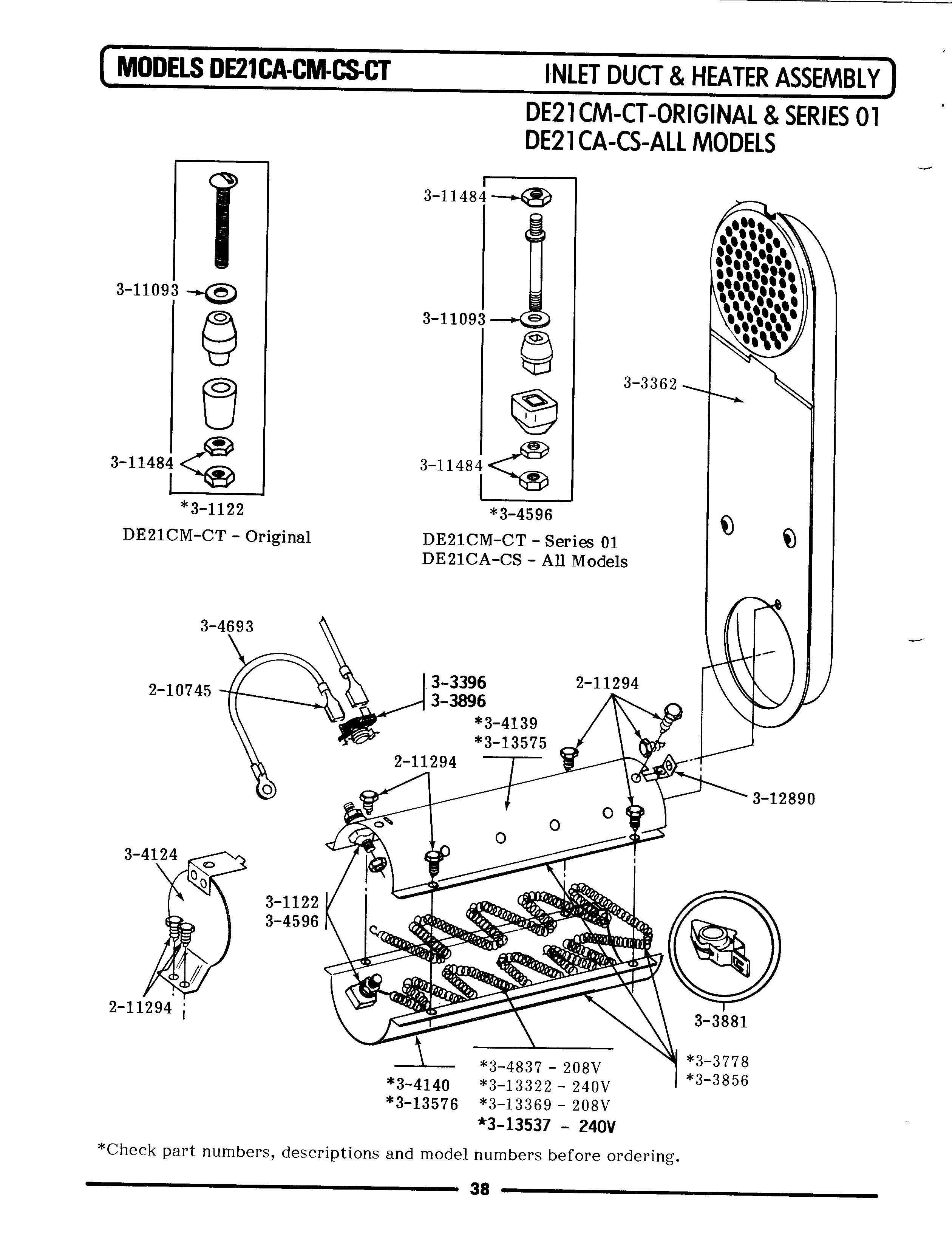

DE21CS 08 – INLET DUCT & HEATER ASSEMBLY

DE21CS 08 – INLET DUCT & HEATER ASSEMBLY

Written by

in

DE21CS 08 – INLET DUCT & HEATER ASSEMBLY

Products

PositionProduct
001MAY 210745
002WP90767 Whirlpool Screw
003Y304596 Whirlpool Terminal Insulator Assembly
004MAY Y303362
005WP303396 Whirlpool Thermostat
006MAY Y303778
007MAY Y303856
008WPY303881 Whirlpool Clip and Insulator
009MAY 304124
013WPY304693 Whirlpool Wire Jumper
014W10116793 Whirlpool Element
015WP311093 Whirlpool Washer 7
016WP112432 Whirlpool Nut Assembly
017MAY Y312890
018HEATER ELEMENT
019DOWEL PIN FOR HANDLE
020MAY Y313537
021MAY Y313575
022MAY Y313576
023WP303896 Whirlpool High Limit Thermostat
