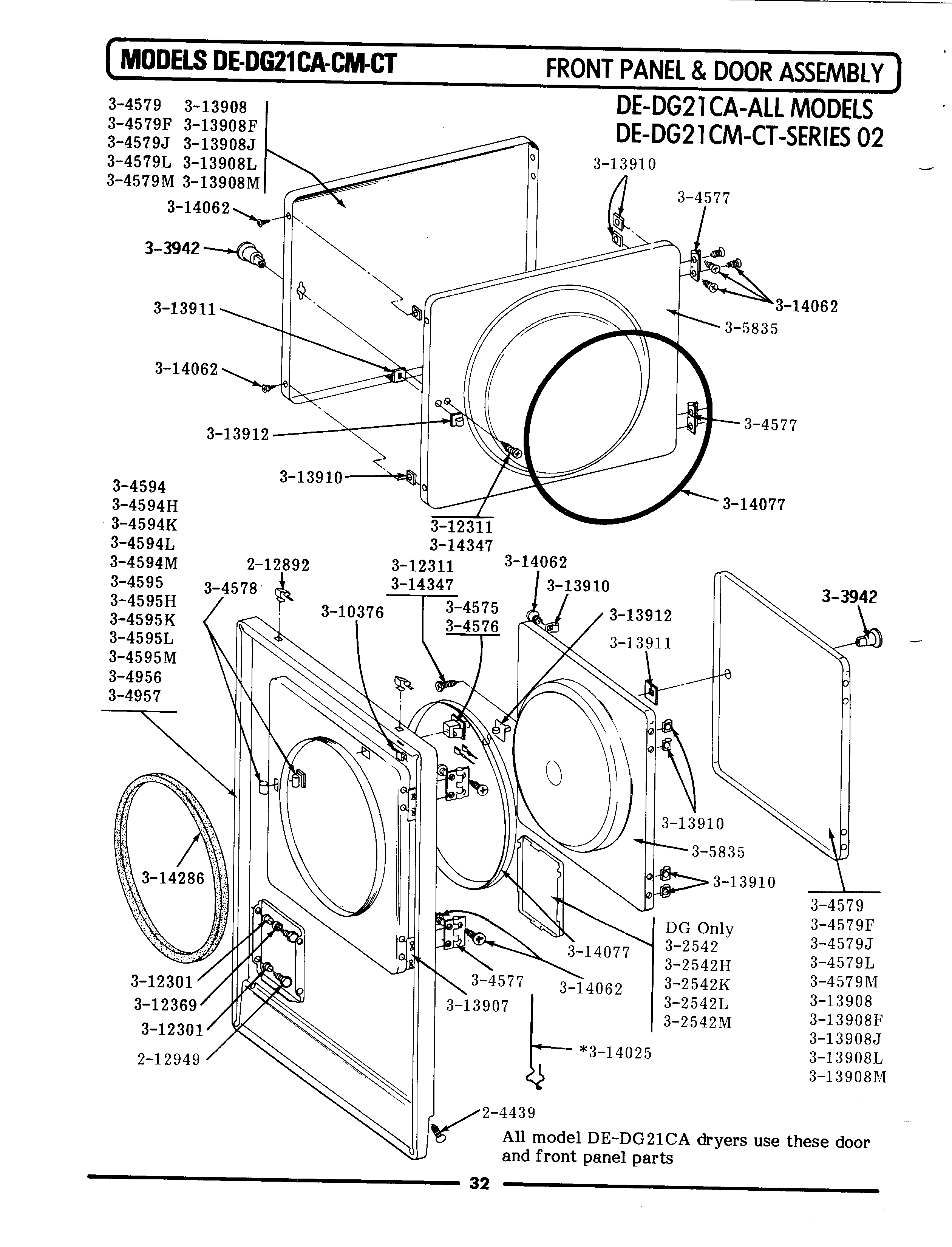

DE21CT 09 – FRONT PANEL\DOOR (SERIES 02)

DE21CT 09 – FRONT PANEL\DOOR (SERIES 02)

Written by

in

DE21CT 09 – FRONT PANEL\DOOR (SERIES 02)

Products

PositionProduct
001SCREW & FSTNER ASSY (FT. PNL)
002SCREW, BUSHINGS
003MAY 212982
004W10169313 Whirlpool Door Switch Kit
005MAY Y304577
006MAY Y304578
007MAY Y304579
011MAY Y310376
014SLEEVE, ACCESS DOOR RUBBER
015LABEL, LINT SCREEN INSTR.
016MAY Y313907
017MAY Y313908
018CLIP, DOOR LINER
019MAY Y313911
020MAY Y313912
021MAY Y313927
022LATCH, ACCESS DOOR
024MAY 314077
027DOWEL PIN FOR HANDLE
