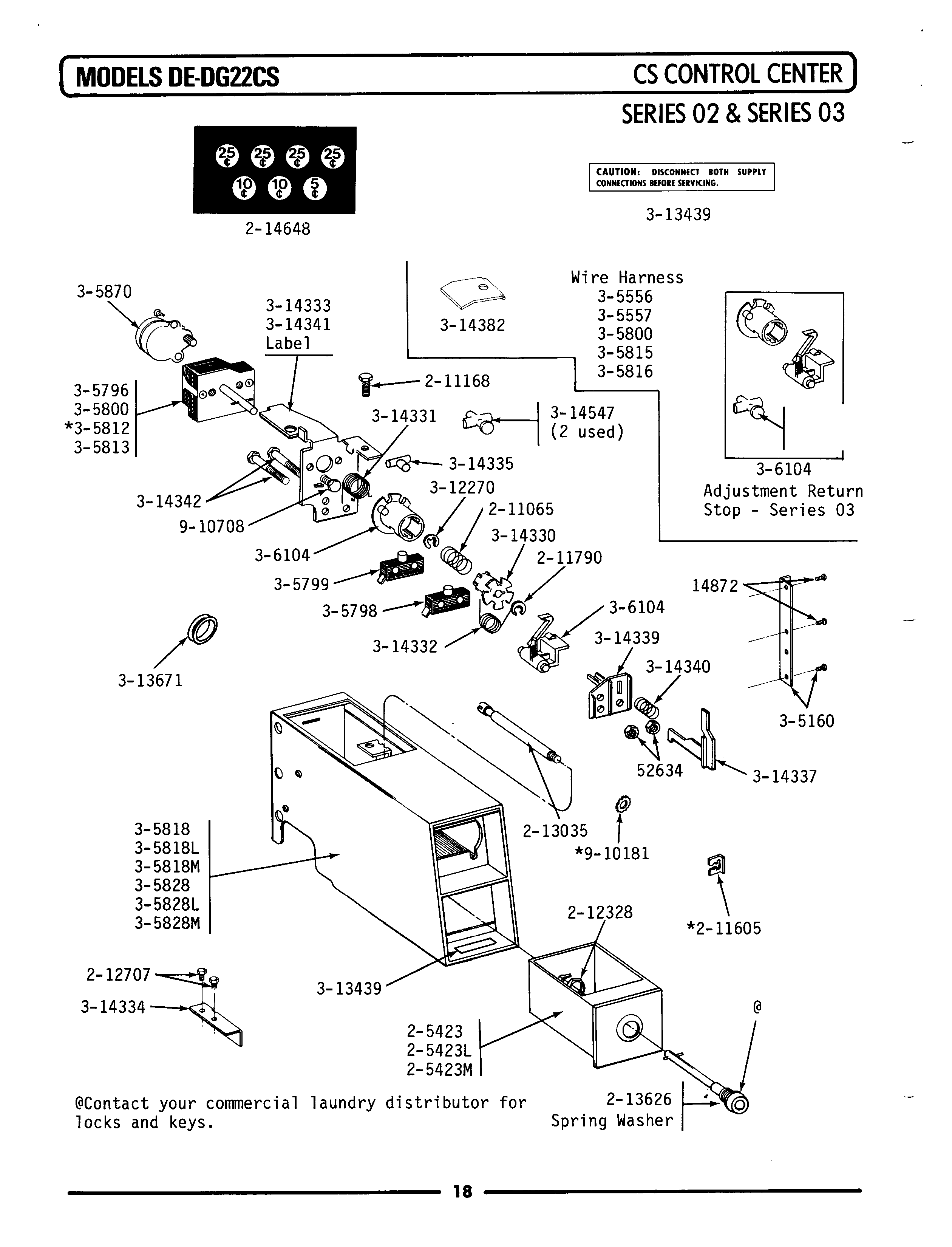

DE22CS 06 – CONTROL CENTER (SERIES 02 & SERIES 03)

DE22CS 06 – CONTROL CENTER (SERIES 02 & SERIES 03)

Written by

in

DE22CS 06 – CONTROL CENTER (SERIES 02 & SERIES 03)

Products

PositionProduct
001MAY Y014872
002MAY Y052634
003COIN BOX-WHITE
003COIN BOX-ALMOND
004WP211065 Whirlpool Timer Spring
005WPW10139210 Whirlpool Screw
006MAY 211605
008W11395752 Whirlpool Nut
009W11684507 Whirlpool Screw
010MAY 213035
012MAY 214648
014MAY 305796
015MAY 305798
016MAY Y305799
017MAY 305800
018MAY 305812
019MAY 305813
020MAY 305815
024TIMER MOTOR RPR
025MAY 306104
026MAY Y312270
027MAY Y313439
028MAY Y313671
029MAY 314330
031MAY 314332
032TIMER MOUNTING BRACKET
033BRACKET FOR COIN SLIDE
034TIME ADJUSTMENT PEG
03533002968 Whirlpool Slider
036MAY 314339
040DOWEL PIN FOR HANDLE
041MAY 314547
042MAY 910181
043MAY 910708
