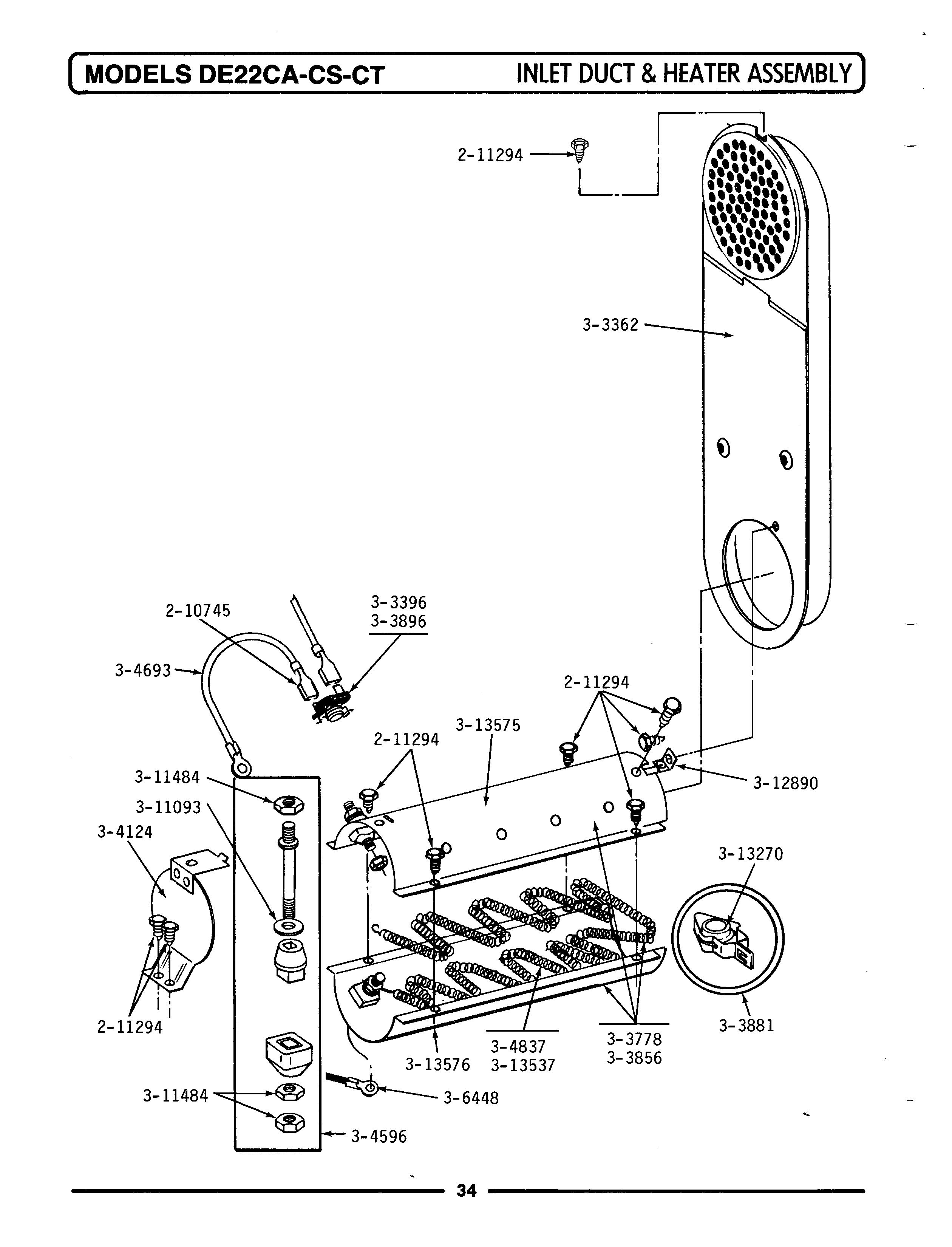

DE22CS 10 – INLET DUCT & HEATER ASSEMBLY

Products

Position	Product
001	MAY 210745
002	WP90767 Whirlpool Screw
003	MAY Y303362
004	WP303396 Whirlpool Thermostat
005	MAY Y303778
006	MAY Y303856
007	WPY303881 Whirlpool Clip and Insulator
008	WP303896 Whirlpool High Limit Thermostat
009	MAY 304124
010	Y304596 Whirlpool Terminal Insulator Assembly
011	WPY304693 Whirlpool Wire Jumper
012	W10116793 Whirlpool Element
013	DOWEL PIN FOR HANDLE
014	WP311093 Whirlpool Washer 7
015	WP112432 Whirlpool Nut Assembly
016	MAY Y312890
017	MAY Y313270
018	MAY Y313537
019	MAY Y313575
020	MAY Y313576
