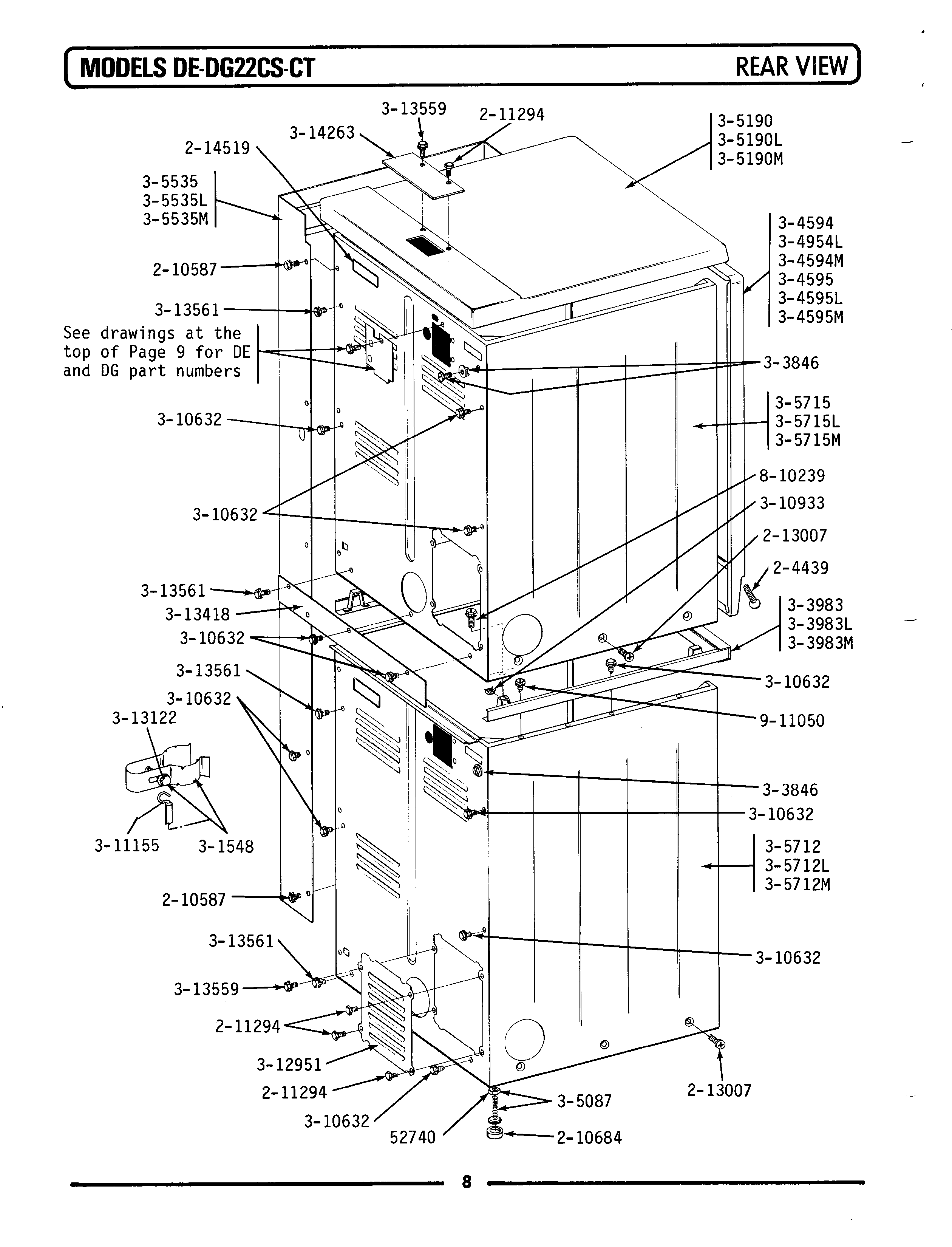

DE22CT 02 – REAR VIEW

Products

Position	Product
001	WP62739 Whirlpool Nut
002	SCREW & FSTNER ASSY (FT. PNL)
004	WP210684 Whirlpool Dishwasher Leveling Leg Pad
005	WP90767 Whirlpool Screw
006	213007 Whirlpool Screw #12
007	MAY 301548
011	MAY Y305087
012	MAY Y305190
016	MAY Y310632
017	MAY 310933
018	WP311155 Whirlpool Wire Assembly
019	WPY311270 Whirlpool Washer TE
020	PART NOT USED
021	WP112432 Whirlpool Nut Assembly
022	PART NOT USED
023	SCREW, No.10-24 X 3/4 INCH—–O
024	PART NOT USED
025	MAY Y312905
026	MAY Y312951
027	MAY 313122
029	MAY Y313559
030	MAY Y313561
032	PART NOT USED
033	DOWEL PIN FOR HANDLE
034	MAY 911050
