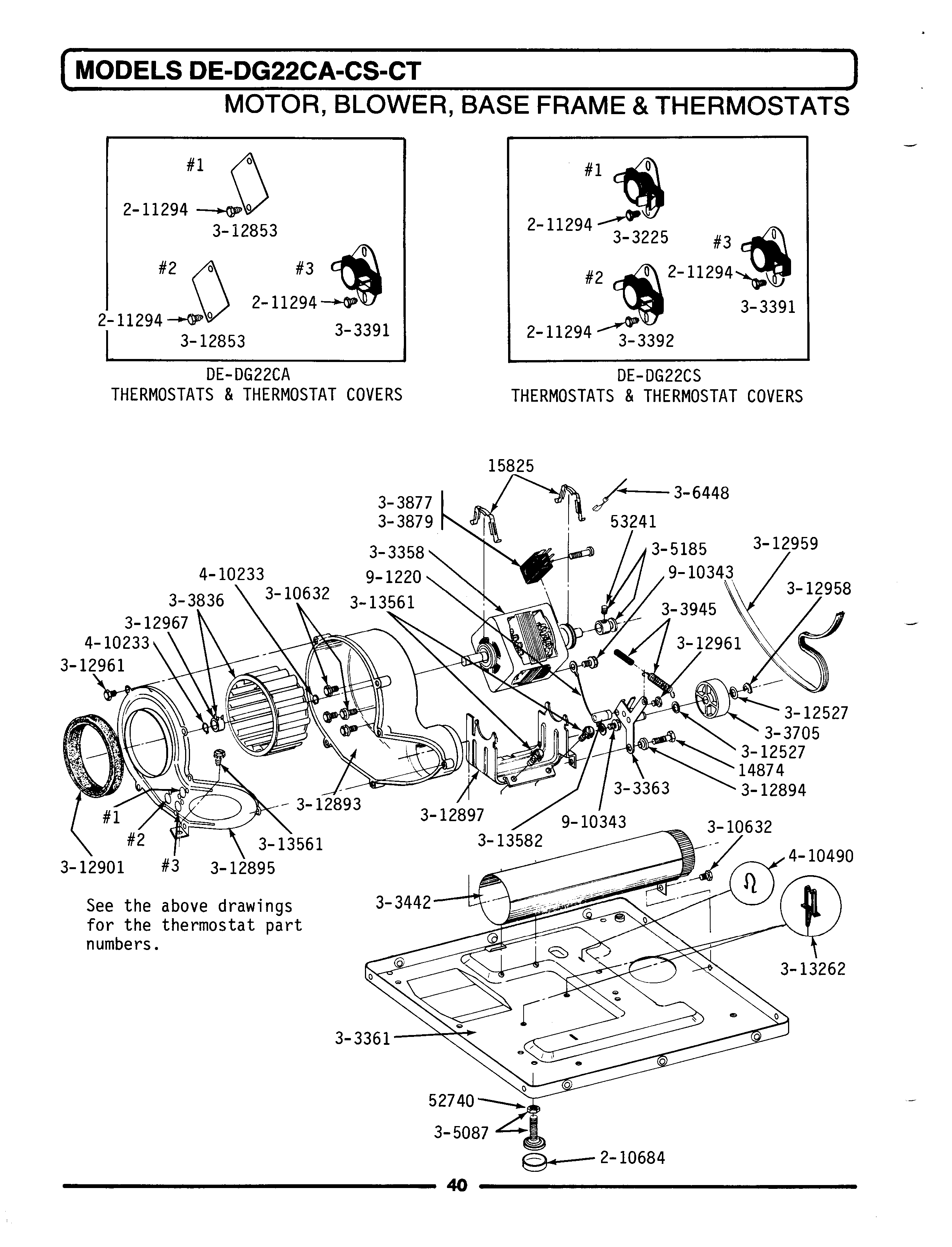

DE22CT 11 – MOTOR, BLOWER, BASE FRAME & THERMOSTATS

DE22CT 11 – MOTOR, BLOWER, BASE FRAME & THERMOSTATS

Written by

in

DE22CT 11 – MOTOR, BLOWER, BASE FRAME & THERMOSTATS

Products

PositionProduct
001WPY014874 Whirlpool Screw
002WPY015825 Whirlpool Motor Clip
003WP62739 Whirlpool Nut
004MAY Y053241
005WP210684 Whirlpool Dishwasher Leveling Leg Pad
006WP90767 Whirlpool Screw
007W10410999 Whirlpool Dryer Drive Motor
008MAY Y303361
009WP6-3033630 Whirlpool Dryer Idler Arm Assembly
010WP33303391 Whirlpool Thermostat
011WP694674 Whirlpool Cycling Thermostat
012MAY Y303442
013WP6-3037050 Whirlpool Idler Pulley
014Y303836 Whirlpool Dryer Blower Wheel
015MAY Y303877
016MAY Y303879
017MAY Y303945
018MAY Y305087
019MAY Y305185
021MAY Y310632
022MAY Y312527
023MAY Y312853
024MAY Y312893
025SLEEVE, IDLER ARM —-S
026MAY Y312895
027DOWEL PIN FOR HANDLE
028WPY312901 Whirlpool Blow Seal
029WP354987 Whirlpool C-Clip
030WPY312959 Whirlpool Dryer Drum Belt
031WPW10116751 Whirlpool Screw
032WP312967 Whirlpool Clamp
034MAY Y313262
035MAY Y313561
036WPW10116756 Whirlpool Spacer
037WP9703438 Whirlpool Snap Retaining Ring
038MAY 410490
039MAY 901220
040MAY 910343
