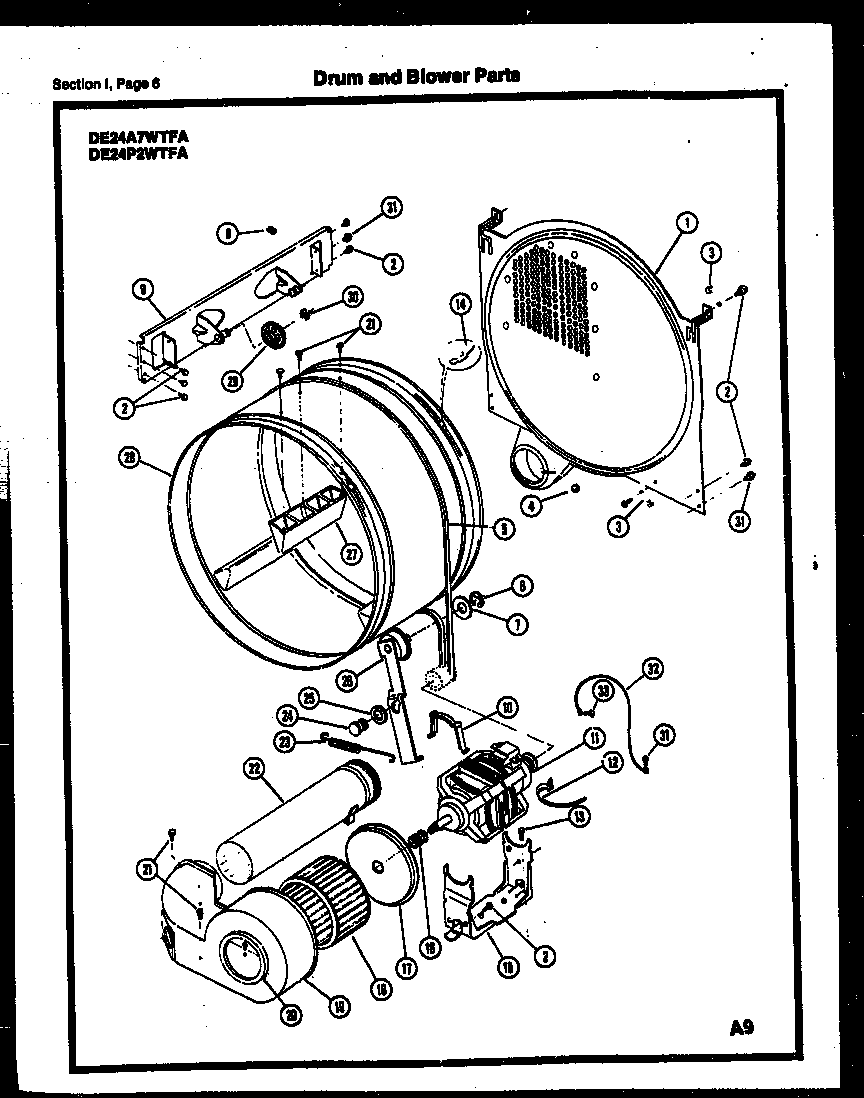

DE24A7WTFA 03 – DRUM AND BLOWER PARTS

Products

Position	Product
*32106	SWITCH-MTR-GE
1	WCI F078841-000
3A	CLIP-HARNESS TO PLENUM
4	WCI F131168-000
5	WCI F078448-000
6	F073088-000 Frigidaire Ring
7	5360792000 Frigidaire Washer
8	SPEED CLIP, PRESSURE HOSE TO CABINET (2)
9	WCI F078185-100
10	MOTOR CLIP (2)
11	WCI F140566-000
12	5304464772 Frigidaire Refrigerator Wire Tie
13	SEMS SCREW
14	WCI F131736-000
15	WCI F078190-026
16	WCI F064360-000
17	WCI F064354-028
18	WCI F140935-000
19	WCI F141418-000
20	WCI F141604-000
22	WCI F140414-000
23	WCI F130396-000
24	WCI F079485-000
25	WCI F076822-000
26	IDLER WHEEL ASSEMBLY (IDLER BAR ASSEMBLY WHEEL AND WASHE
27	WCI F078188-100
28A	WCI F079436-000
28	WCI F078183-032
29	WHEEL, TIRE, NYLINER ASSEMBLY (NOTE 1) (5)
30	WCI F076978-000
31D	5303015671 Frigidaire Bracket Termination Screw
32	GROUND WIRE, ELECTRIC
33	WCI F132144-000
