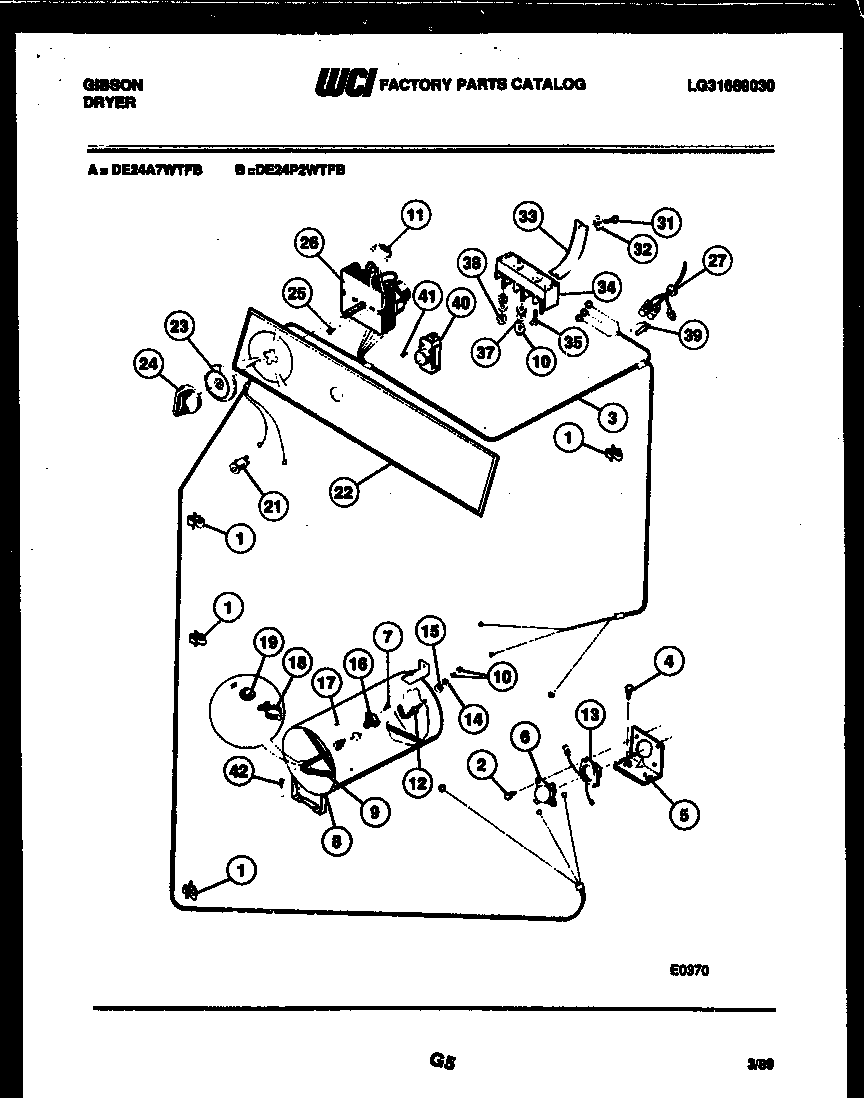

DE24A7WTFB 03 – CONSOLE AND CONTROL PARTS

Products

Position	Product
*15218	WCI F139540-000
*15218	CLIP HARNESS TO RH CAB (2)
1	CLIP, HARNESS TO RH SIDE PANEL (3)
2	WCI F130220-000
3	WCI F140760-000
4	WCI F130439-000
5	WCI F141414-000
6	WCI F136776-000
8	WCI F130228-200
9	WCI F134266-100
10B	NUT (2)
11	WCI F065111-011
11B	RESISTOR (ELECTRIC MODELS ONLY)
11A	WCI F065111-017
12	INSULATOR, MALE (2)
13	WCI F136777-000
14	WASHER (2)
15	INSULATOR, FEMALE (2)
16	WCI F132267-000
18	CLIP (11)
19	WCI F131735-000
21	DOOR SWITCH
22	WCI F140597-000
23	WCI F140767-000
24	KNOB-TIMER
25	WCI F060796-000
26B	TIMER MOTOR
26	WCI F140779-000
31	WCI F132225-000
32	WCI F078101-000
33	WCI F076793-100
34	5304409888 Frigidaire Oven Terminal Block with Hardware
35	SCREW (6)
37	WCI F073329-000
38	NUT (4)
39	WCI F131169-000
40	PUSH TO START SWITCH
41	SEMS SCREW (2)
42	5303015671 Frigidaire Bracket Termination Screw
