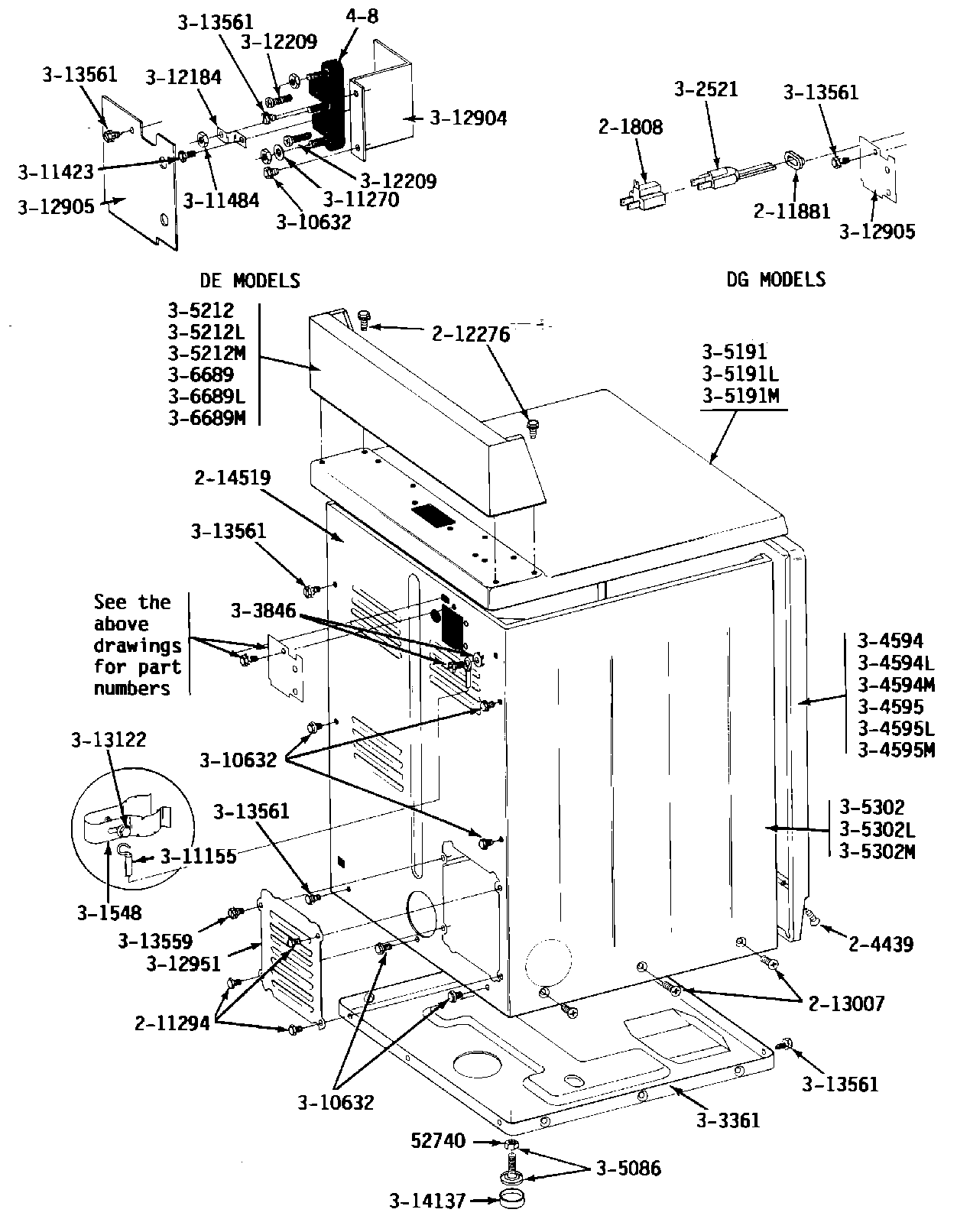

DE24CM 04 – REAR VIEW

DE24CM 04 – REAR VIEW

Written by

in

DE24CM 04 – REAR VIEW

Products

Position	Product
001	WP62739 Whirlpool Nut
002	MAY Y201808
003	SCREW & FSTNER ASSY (FT. PNL)
004	WP90767 Whirlpool Screw
005	GROMMET
006	MAY 212276
007	213007 Whirlpool Screw #12
008	INSTRUCTION LABEL
009	MAY 301548
010	MAY 302521
011	MAY Y303361
016	W10176519 Whirlpool Leveling Feet
017	MAY 305168
018	MAY Y305191
029	DOWEL PIN FOR HANDLE
030	MAY Y310632
031	WP311155 Whirlpool Wire Assembly
032	WPY311270 Whirlpool Washer TE
033	PART NOT USED
034	WP112432 Whirlpool Nut Assembly
035	PART NOT USED
036	SCREW, No.10-24 X 3/4 INCH—–O
037	PART NOT USED
038	MAY Y312905
039	MAY Y312951
040	MAY 313122
041	MAY Y313559
042	MAY Y313561
043	WPY314137 Whirlpool Rubber Foot
044	PART NOT USED
