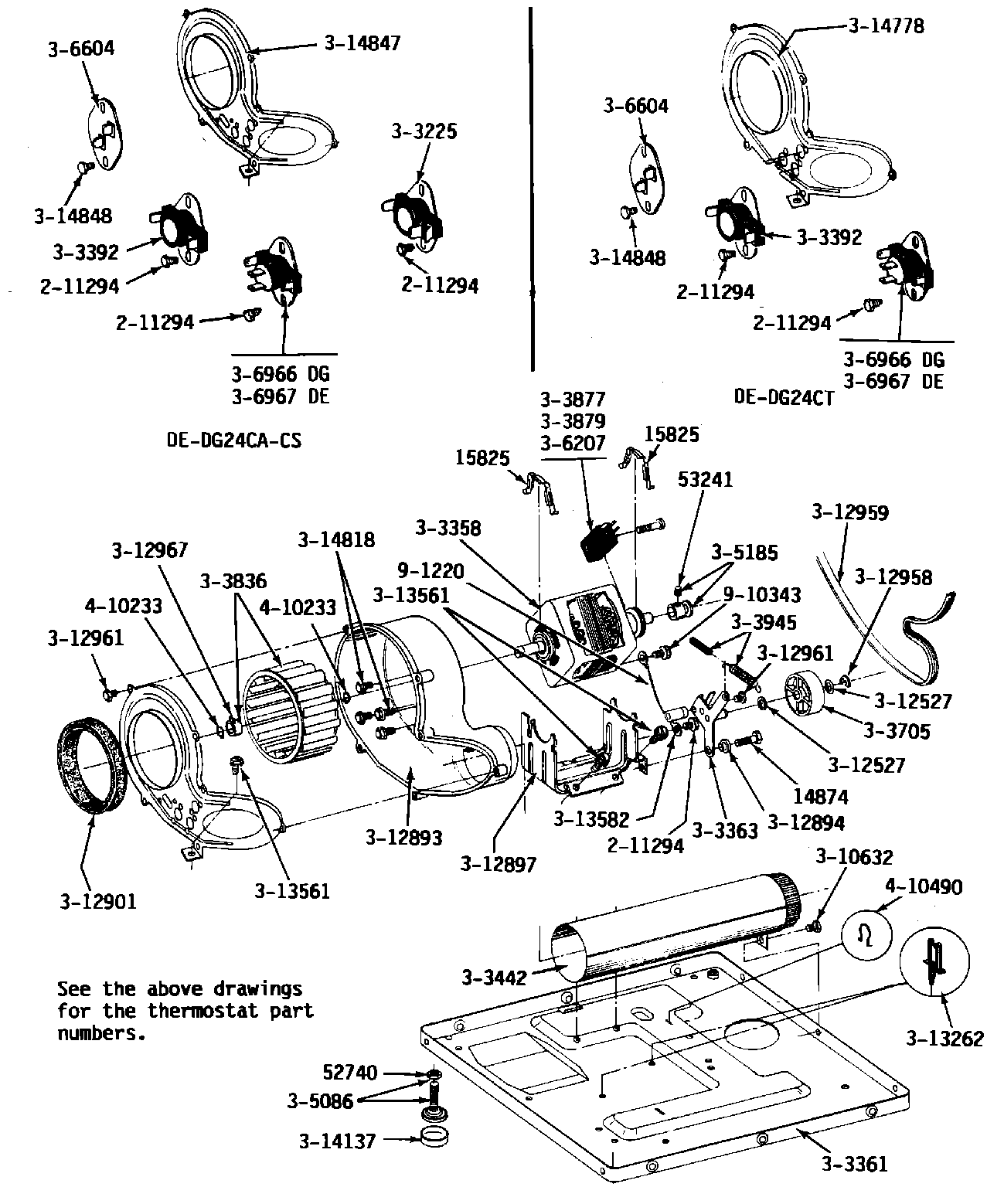

DE24CM 08 – MOTOR, BLOWER, BASE FRAME & THERMOSTATS

Products

Position	Product
001	WPY014874 Whirlpool Screw
002	WPY015825 Whirlpool Motor Clip
003	WP62739 Whirlpool Nut
004	MAY Y053241
005	WP90767 Whirlpool Screw
006	PART NOT USED
007	W10410999 Whirlpool Dryer Drive Motor
008	MAY Y303361
009	WP6-3033630 Whirlpool Dryer Idler Arm Assembly
010	WP694674 Whirlpool Cycling Thermostat
011	MAY Y303442
012	WP6-3037050 Whirlpool Idler Pulley
013	Y303836 Whirlpool Dryer Blower Wheel
014	MAY Y303877
015	MAY Y303879
016	MAY Y303945
017	W10176519 Whirlpool Leveling Feet
018	MAY Y305185
021	WP306604 Whirlpool Cut-off
022	THERMOSTAT, MULTI-TEMPERATURE
023	PART NOT USED
024	MAY Y310632
025	MAY Y312527
026	MAY Y312893
027	SLEEVE, IDLER ARM —-S
029	WPY312901 Whirlpool Blow Seal
030	WP354987 Whirlpool C-Clip
031	WPY312959 Whirlpool Dryer Drum Belt
032	WPW10116751 Whirlpool Screw
033	WP312967 Whirlpool Clamp
034	MAY Y313262
035	MAY Y313561
036	WPW10116756 Whirlpool Spacer
037	WPY314137 Whirlpool Rubber Foot
038	MAY 314818
039	MAY 314847
040	DOWEL PIN FOR HANDLE
041	WP9703438 Whirlpool Snap Retaining Ring
042	MAY 901220
043	MAY 910343
