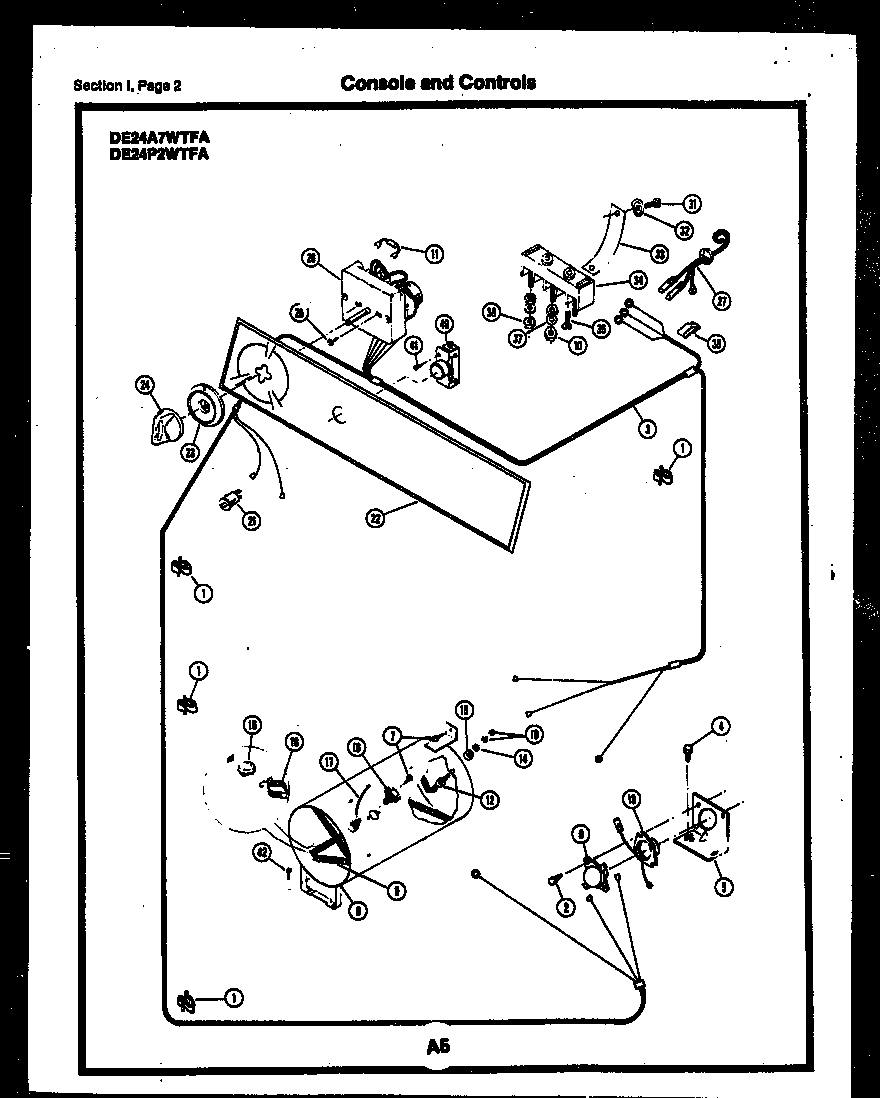

DE24P2WTFA 01 – CONSOLE AND CONTROLS

Products

PositionProduct
*32013WCI F079865-000
*32012CLIP HARNESS TO RH CAB (2)
1CLIP, HARNESS TO RH SIDE PANEL (3)
3WCI F140917-000
4WCI F130439-000
5WCI F141414-000
6WCI F078985-000
8WCI F130228-200
9WCI F134266-000
10BNUT (2)
12INSULATOR, MALE (2)
14WASHER (2)
15INSULATOR, FEMALE (2)
16WCI F132267-000
17WCI F132264-000
18CLIP (11)
19WCI F131735-000
21DOOR SWITCH
22WCI F140598-000
23WCI F140767-000
24KNOB-TIMER
25WCI F060796-000
26BWCI F079459-026
26AWCI F138738-000
26WCI F140778-000
27WCI F078231-000
31WCI F132225-000
40PUSH TO START SWITCH
41SEMS SCREW (2)
425303015671 Frigidaire Bracket Termination Screw
