DE250EDH1 05 – CONSOLE, CONTROLS, TOP PANEL, MISCE

Products

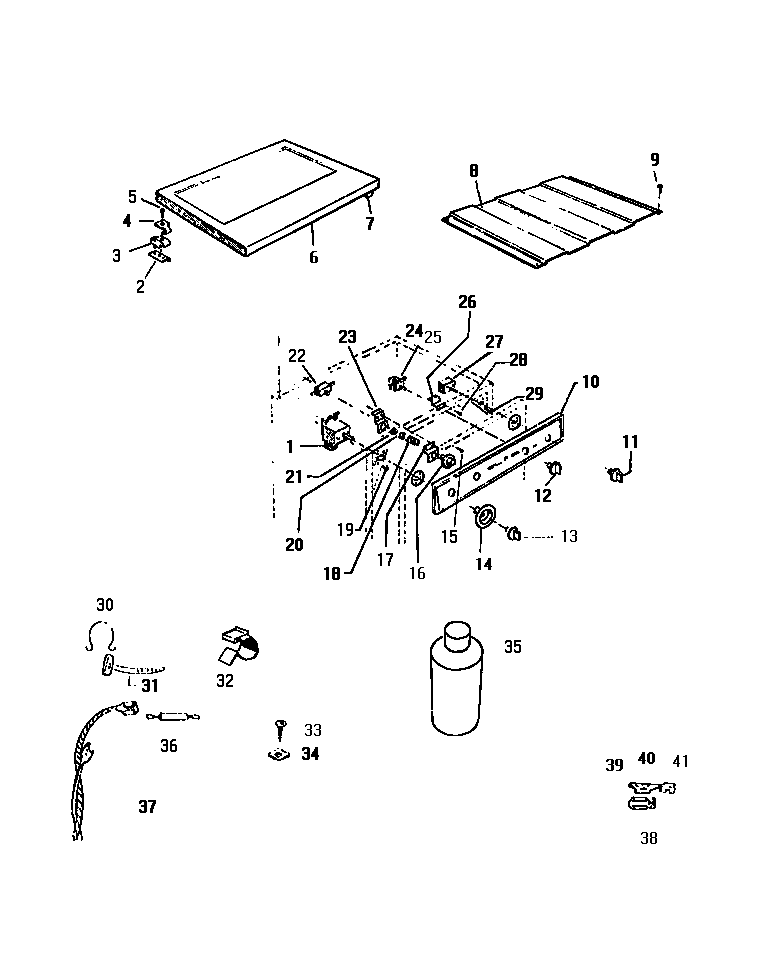

PositionProduct
*22929WCI Q606741
*22930WCI Q278114
*22926WCI 1443982
*22921WCI Q63137
*22928SCREW (4)
*22920WCI 086065
*22925SEALING MASTER
*22927WCI Q428901
1WCI Q630111
2WCI Q69552
3WCI Q69551
4WCI Q81666
5WCI Q415403
6WCI Q603222
7SPRING CATCH
8WCI Q119926
10WCI Q630231
13KNOB TIMER
14WCI Q617641
15WCI 435098
16PUSH BUT.
17WCI Q165150
18WCI Q66793
19SCREW (4)
20WCI Q501450
21WCI Q409004
22START SWITCH
23WCI Q165146
24WCI Q152915
25WCI Q435100
26WCI Q630224
27WCI Q168877
28WCI Q435098
29SCREW
30WCI Q62196
31WCI 1468242
32WCI Q502207
33WCI Q500565
34WCI Q500411
36WCI Q14905
37WCI Q619961
38RECEPTACLE, FLAG, 1/4“ BLADE TERMINAL
38AWCI Q301296
39ARECEPTACLE, STRAIGHT, 1/4“ BLADE TERMINAL (PKG. OF 12)
39RECEPTACLE, STRAIGHT, 1/4“ BLADE TERMINAL
40RECEPTACLE, STRAIGHT, 3/16“ BLADE TERMINAL
40ARECEPTACLE, STRAIGHT, FOR 3/16“ BLADE TERM. (PKG. OF 12)
41RECEPTACLE, STRAIGHT, 5/16“ BLADE TERMINAL
41ARECEPTACLE, STRAIGHT, FOR 5/16“ BLADE TERM. (PKG. OF 12)
