DE250EDV5 03 – HEATING ELEMENT, HOUSING

Products

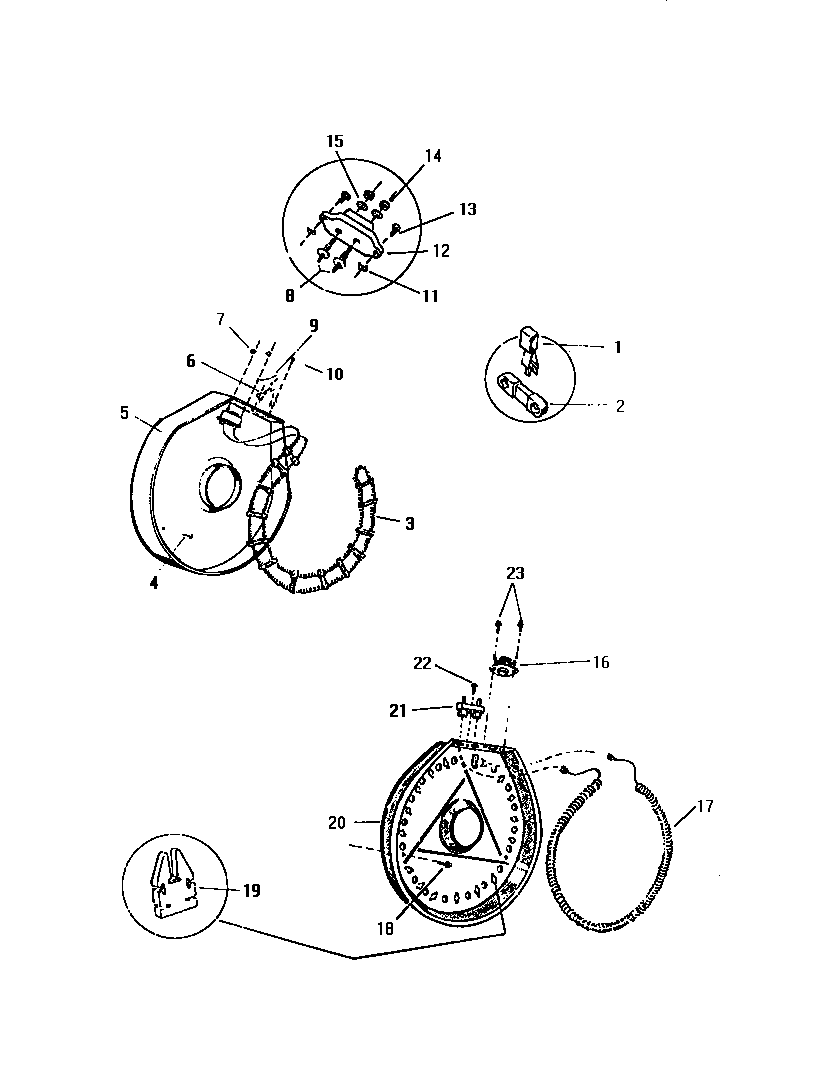

Position	Product
1	SUPPORT CLIP
2	BUSHING 14 REQ.
3	COIL 1-2 MODELS
3	COIL -4 MODELS
5	HEATER HSG
6	THERMOSTAT HI-LIMIT -4 MODELS
6	THERMOSTAT HI-LIMIT -1-2 MODELS
8	WCI Q64572
9	WIRE CONN. -2-4 MODELS
10	SCREW (4)
11	WCI Q500621
12	TERMINAL BLOCK -4 MODELS
12	TERMINAL BLOCK 1-2 MODELS
13	WCI Q402705
14	WCI Q401002
15	WCI Q440082
16	WCI Q602994
17	WCI Q622032
18	WCI Q505564
19	WCI Q622212
20	WCI Q619691
21	WCI Q622211
22	WCI Q435010
23	WCI Q435026
