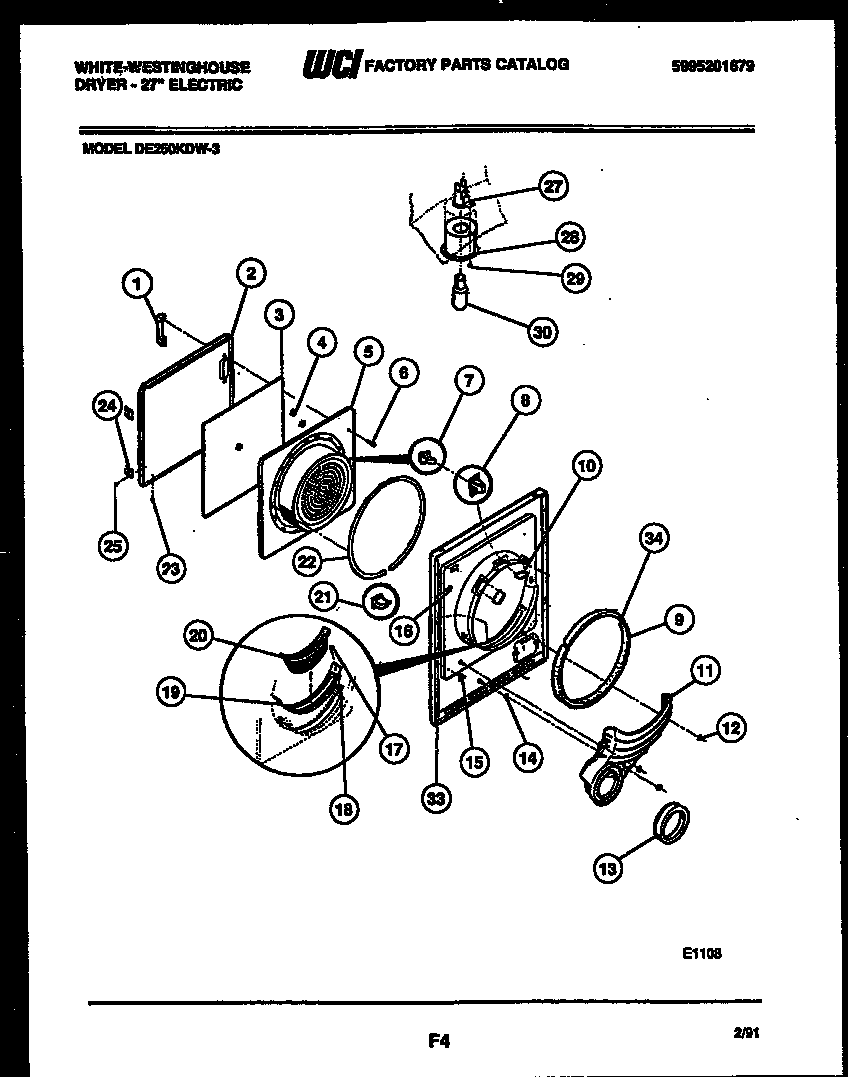

DE250KDH3 03 – DOOR PARTS

Products

Position	Product
1	WCI 3281053
2	DOOR-OUTER-WHEAT
3	HEAT SHIELD
4	SPACER (2)
4	WCI 3201205
5	DOOR-INNER-WHEAT
6	WCI 3281051
7	5303207102 Frigidaire Door Strike
8	131658800 Frigidaire Dryer Door Catch Repair Kit
9	SEAL
10	5303937139 Frigidaire Dryer Felt Seal and Glide Kit Drum
11	WCI 08015173
12	WCI 3281089
13	134417000 Frigidaire Seal
14	5300809968 Frigidaire Dishwasher P-1 Washer
15	CLIP-GUIDE (4)
16	CLIP (4)
17	131420300 Frigidaire Screw
18	CLIP
19	WCI 3281060
20	TRAP-LINT
21	DOOR-SWITCH
22	WCI 3201210
24	DOOR HINGE (2)
25	SCREW (8)
27	RECEPTACLE
28	LIGHT HOLDER
29	SCREW (2)
30	LAMP
31	DOOR-ACCESS WHEAT
32	5303300265 Frigidaire Oven Screw
33	WCI 5303270871
34	WCI 3201264
