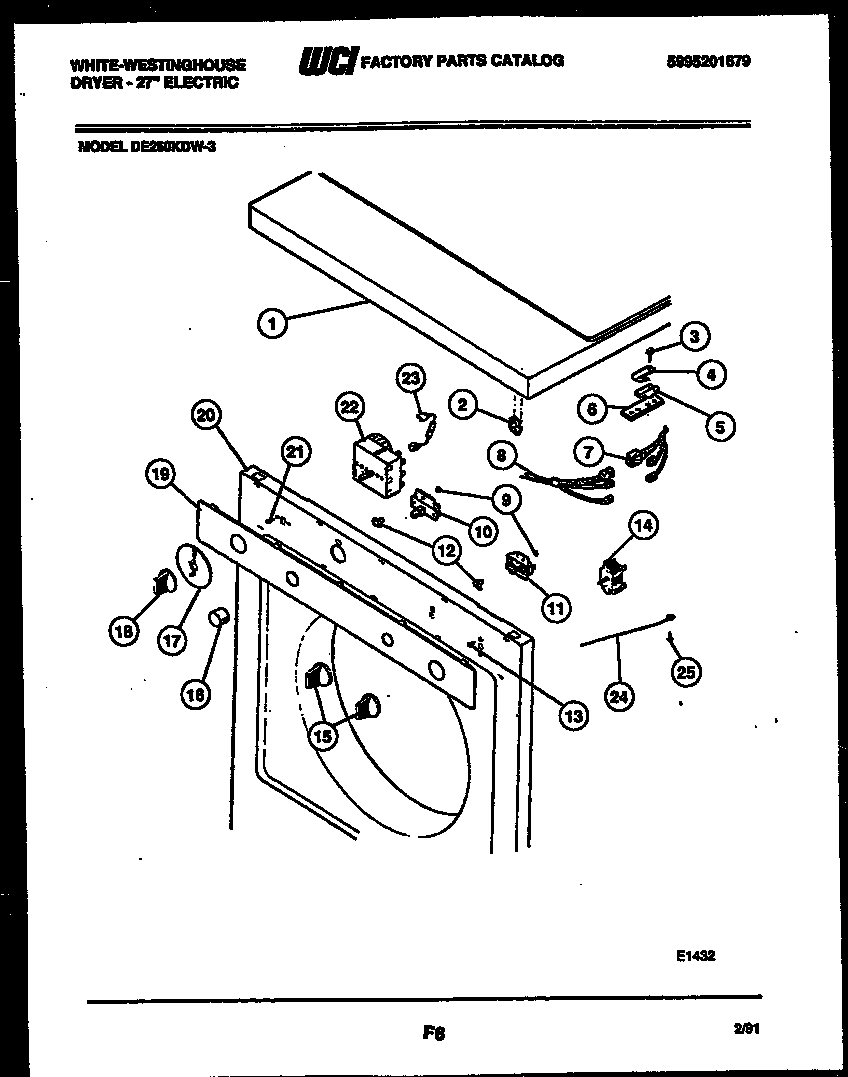

DE250KDH3 04 – CONSOLE AND CONTROL PARTS

DE250KDH3 04 – CONSOLE AND CONTROL PARTS

Written by

in

DE250KDH3 04 – CONSOLE AND CONTROL PARTS

Products

PositionProduct
*40696WCI 3281173
*40696WCI 3203253
*40696WCI 3281171
*40696316008401 Frigidaire Washer P-1
1WCI 3203290
2SPRING CATCH
3SCREW
4WCI 3281163
5WCI 3281164
6WCI 3281165
7WCI 5303269967
7A5303303590 Frigidaire Dryer 4.0" Cable Tie
8WCI 5303269968
9WCI 3281089
10WCI 3203292
11WCI Q000632404
12WCI 3281092
13WCI 3281101
14WCI 3281100
15WCI Q000633724
16WCI 3201221
17WCI 08027433
18KNOB-TIMER
19WCI Q000633781
20WCI 5303270871
21SCREW (2)
22WCI 3010440
22BFASTENER
22AWCI 3281021
23RESISTOR
24WIRE-GROUND
25SCREW (2)
