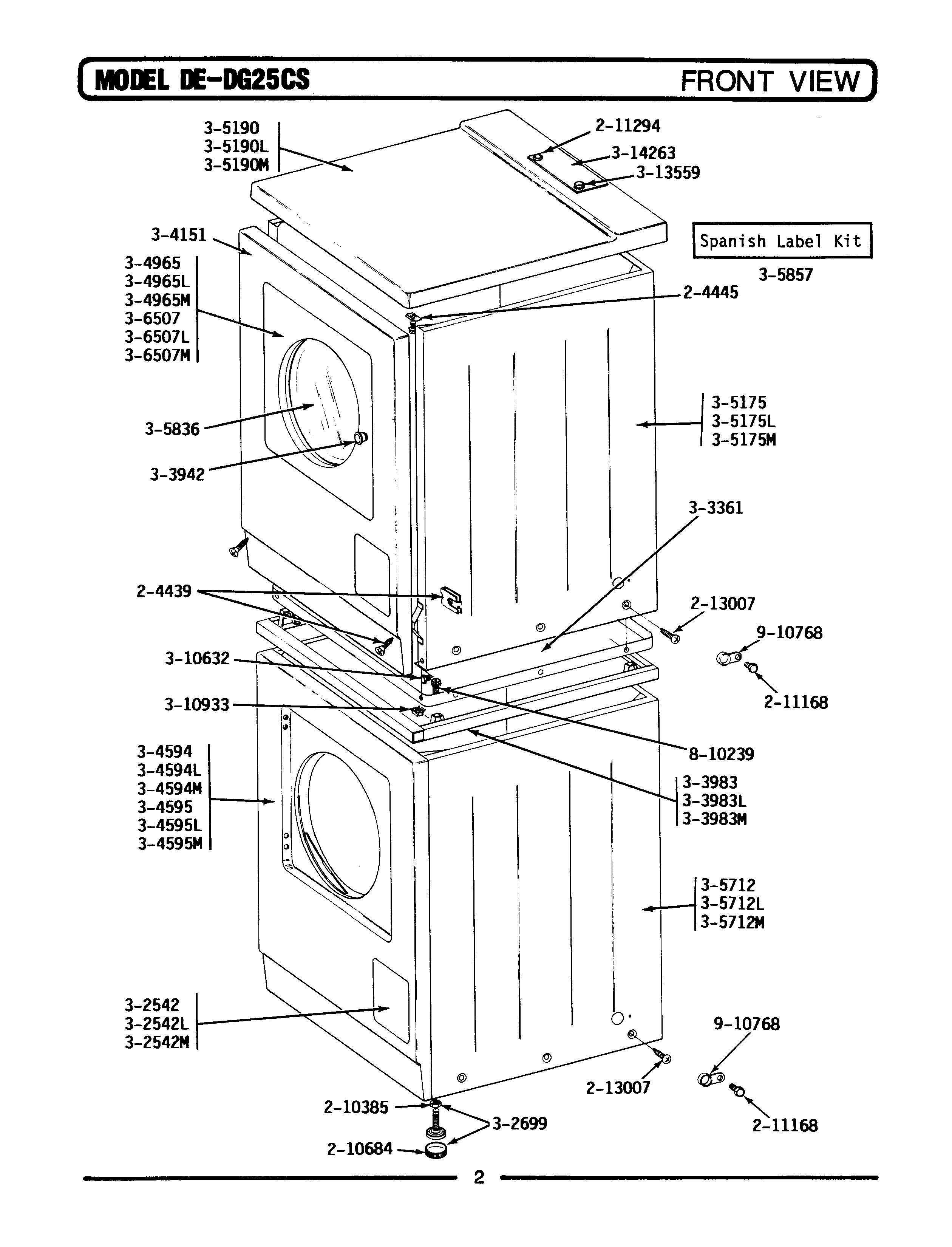

DE25CS 01 – FRONT VIEW

Products

Position	Product
001	SCREW & FSTNER ASSY (FT. PNL)
002	MAY 204445
003	WP210385 Whirlpool Lock Nut
004	WP210684 Whirlpool Dishwasher Leveling Leg Pad
005	WPW10139210 Whirlpool Screw
006	WP90767 Whirlpool Screw
007	213007 Whirlpool Screw #12
008	LEG, ADJUSTABLE (W/NUT)—S
009	MAY Y303361
014	MAY 304965
015	MAY Y305190
021	MAY Y310632
022	MAY 310933
023	MAY Y313559
025	DOWEL PIN FOR HANDLE
026	CABLE STRAP-HARNESS TO BASE
