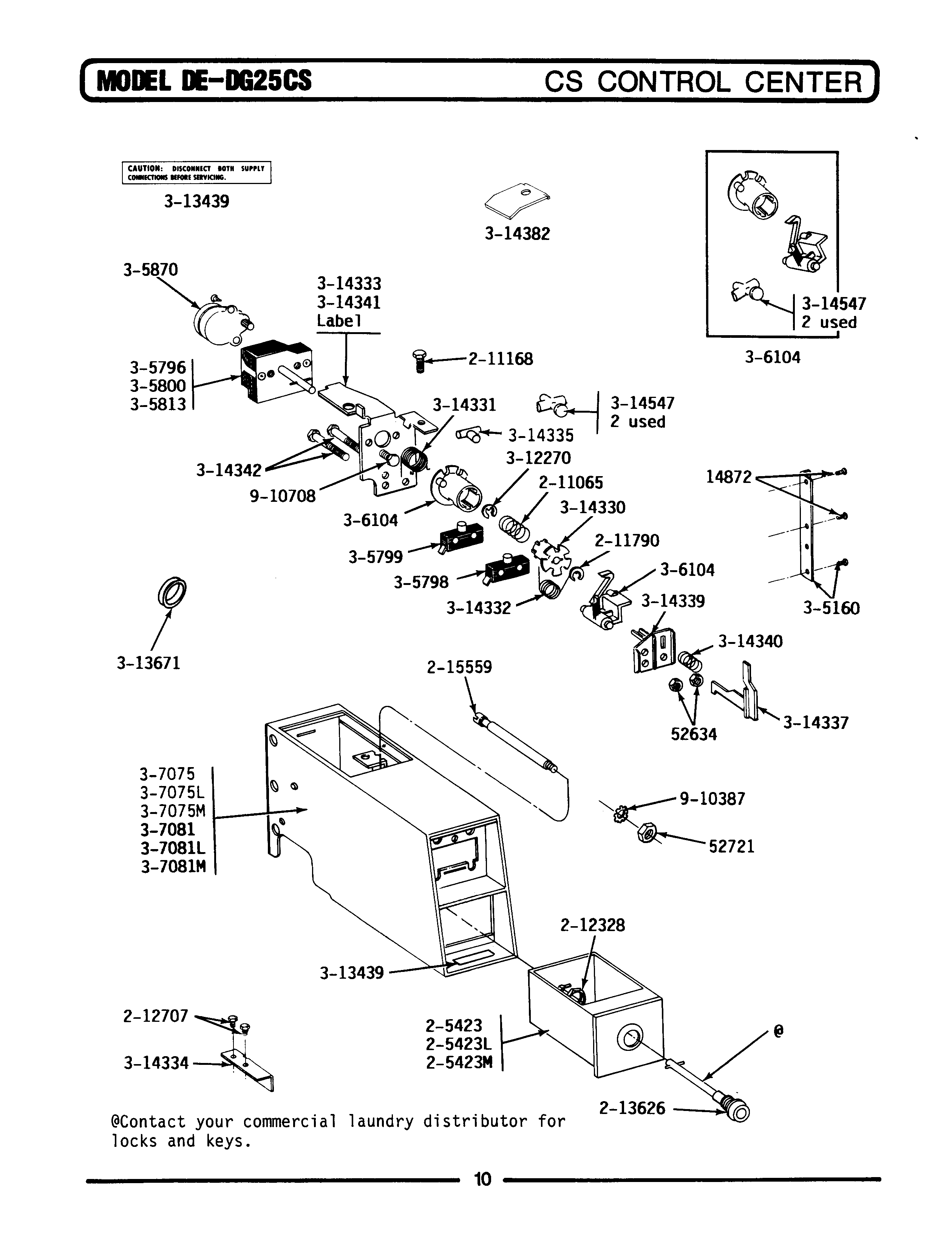

DE25CS 04 – CONTROL CENTER

DE25CS 04 – CONTROL CENTER

Written by

in

DE25CS 04 – CONTROL CENTER

Products

Position	Product
001	MAY Y014872
002	MAY Y052634
003	Y052721 Whirlpool Nut
004	COIN BOX-ALMOND
004	COIN BOX-WHITE
005	WP211065 Whirlpool Timer Spring
006	WPW10139210 Whirlpool Screw
008	W11395752 Whirlpool Nut
009	W11684507 Whirlpool Screw
011	MAY 215559
013	MAY 305796
014	MAY 305798
015	MAY Y305799
016	MAY 305800
017	MAY 305813
018	TIMER MOTOR RPR
019	MAY 306104
025	MAY Y307081
026	MAY Y312270
027	MAY Y313439
028	MAY Y313671
029	MAY 314330
031	MAY 314332
032	TIMER MOUNTING BRACKET
033	BRACKET FOR COIN SLIDE
034	TIME ADJUSTMENT PEG
035	33002968 Whirlpool Slider
036	MAY 314339
040	DOWEL PIN FOR HANDLE
041	MAY 314547
042	MAY 910387
043	MAY 910708
