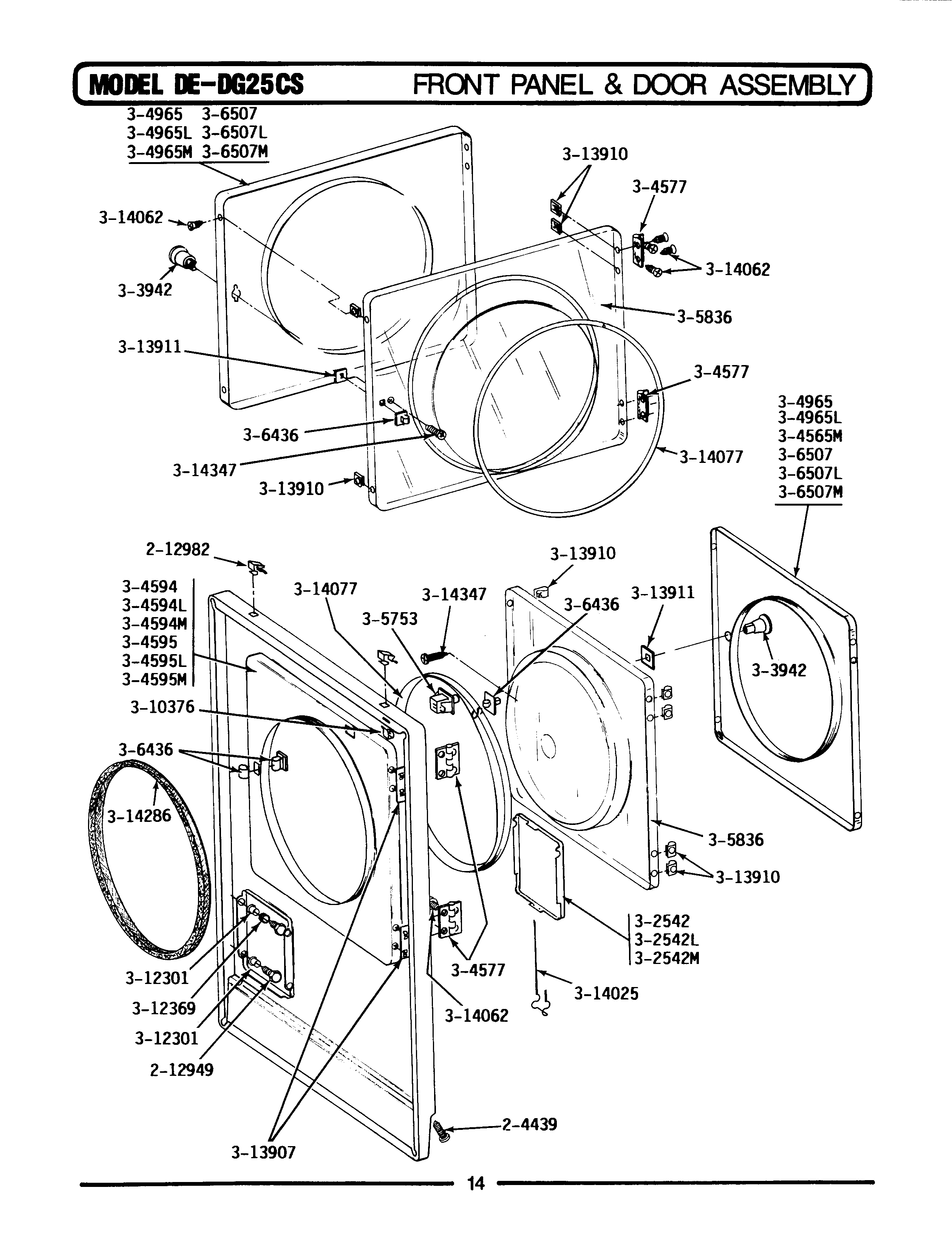

DE25CS 06 – FRONT PANEL & DOOR ASSEMBLY

DE25CS 06 – FRONT PANEL & DOOR ASSEMBLY

Written by

in

DE25CS 06 – FRONT PANEL & DOOR ASSEMBLY

Products

PositionProduct
001SCREW & FSTNER ASSY (FT. PNL)
002SCREW, BUSHINGS
003MAY 212982
005MAY Y304577
007MAY 304965
008W10169313 Whirlpool Door Switch Kit
010306436 Whirlpool Washer Dryer Door Catch and Plastic Strike
012MAY Y310376
014SLEEVE, ACCESS DOOR RUBBER
015LABEL, LINT SCREEN INSTR.
016MAY Y313907
017CLIP, DOOR LINER
018MAY Y313911
019MAY Y313927
020LATCH, ACCESS DOOR
022MAY 314077
025DOWEL PIN FOR HANDLE
