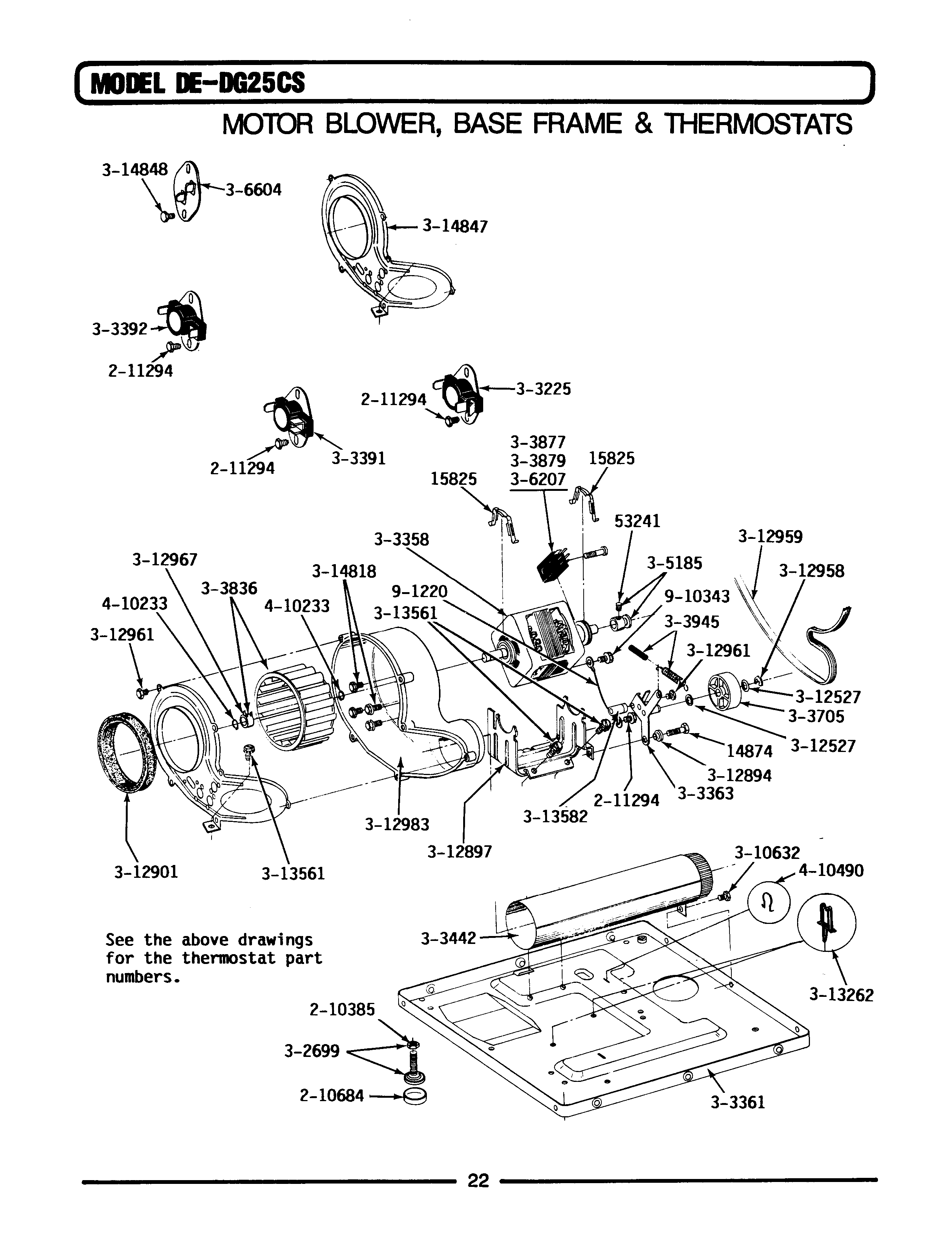

DE25CS 09 – MOTOR, BLOWER, BASE FRAME & THERMOSTATS

Products

Position	Product
001	WPY014874 Whirlpool Screw
002	WPY015825 Whirlpool Motor Clip
003	MAY Y053241
004	WP210385 Whirlpool Lock Nut
005	WP210684 Whirlpool Dishwasher Leveling Leg Pad
006	WP90767 Whirlpool Screw
007	LEG, ADJUSTABLE (W/NUT)—S
008	PART NOT USED
009	W10410999 Whirlpool Dryer Drive Motor
010	MAY Y303361
011	WP6-3033630 Whirlpool Dryer Idler Arm Assembly
012	WP33303391 Whirlpool Thermostat
013	WP694674 Whirlpool Cycling Thermostat
014	MAY Y303442
015	WP6-3037050 Whirlpool Idler Pulley
016	Y303836 Whirlpool Dryer Blower Wheel
017	MAY Y303877
018	MAY Y303879
019	MAY Y303945
020	MAY Y305185
023	WP306604 Whirlpool Cut-off
024	MAY Y310632
025	MAY Y312527
026	MAY Y312893
027	SLEEVE, IDLER ARM —-S
029	WPY312901 Whirlpool Blow Seal
030	WP354987 Whirlpool C-Clip
031	WPY312959 Whirlpool Dryer Drum Belt
032	WPW10116751 Whirlpool Screw
033	WP312967 Whirlpool Clamp
034	MAY Y313262
035	MAY Y313561
036	WPW10116756 Whirlpool Spacer
037	MAY 314818
038	MAY 314847
039	DOWEL PIN FOR HANDLE
040	WP9703438 Whirlpool Snap Retaining Ring
041	MAY 410490
042	MAY 901220
043	MAY 910343
