DE26CS 02 – CONTROL CENTER

DE26CS 02 – CONTROL CENTER

Written by

in

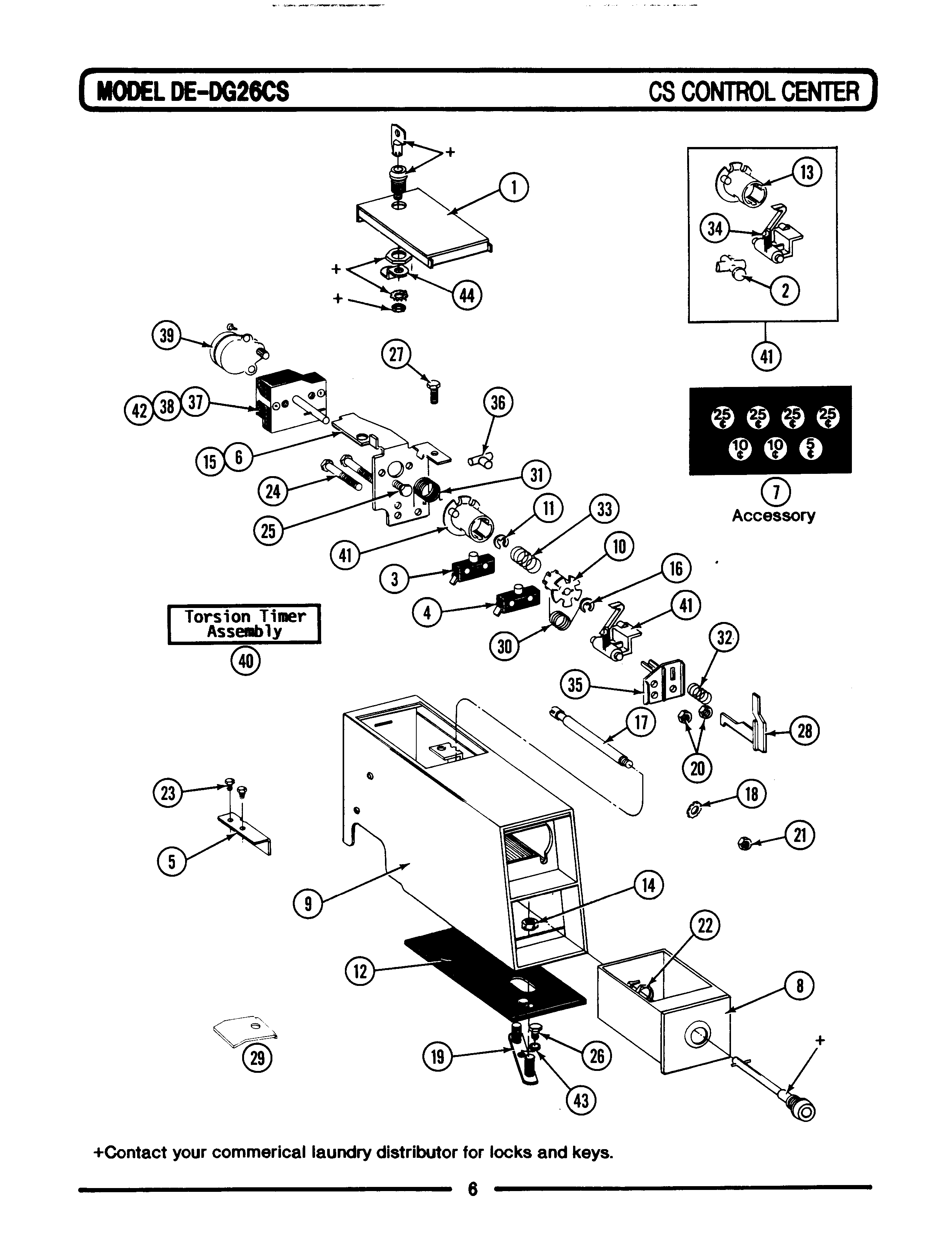

DE26CS 02 – CONTROL CENTER

Products

Position	Product
001	MAY 203188M
001	ACCESS DOOR-ALMOND
001	MAY 203188
002	MAY 314547
003	MAY Y305799
004	MAY 305798
005	BRACKET FOR COIN SLIDE
006	TIMER MOUNTING BRACKET
007	MAY 214648
008	MAY 207913
008	COIN BOX-WHITE
008	MAY 205423M
008	COIN BOX-ALMOND
009	MAY 206956M
009	MAY 206956
009	MAY 206956L
010	MAY 314330
011	MAY Y312270
012	MAY 214660
013	MAY 314546
014	WP62739 Whirlpool Nut
017	MAY 215559
018	MAY 910387
020	MAY Y052634
021	Y052721 Whirlpool Nut
022	W11395752 Whirlpool Nut
023	W11684507 Whirlpool Screw
025	MAY 910708
026	WP90767 Whirlpool Screw
027	WPW10139210 Whirlpool Screw
028	33002968 Whirlpool Slider
030	MAY 314332
032	DOWEL PIN FOR HANDLE
033	WP211065 Whirlpool Timer Spring
034	MAY 314548
035	MAY 314339
036	TIME ADJUSTMENT PEG
037	MAY 305796
038	MAY 305813
039	TIMER MOTOR RPR
040	MAY 305797
041	MAY 306104
042	MAY 305800
043	MAY 910309
044	W11165684 Whirlpool Cam
