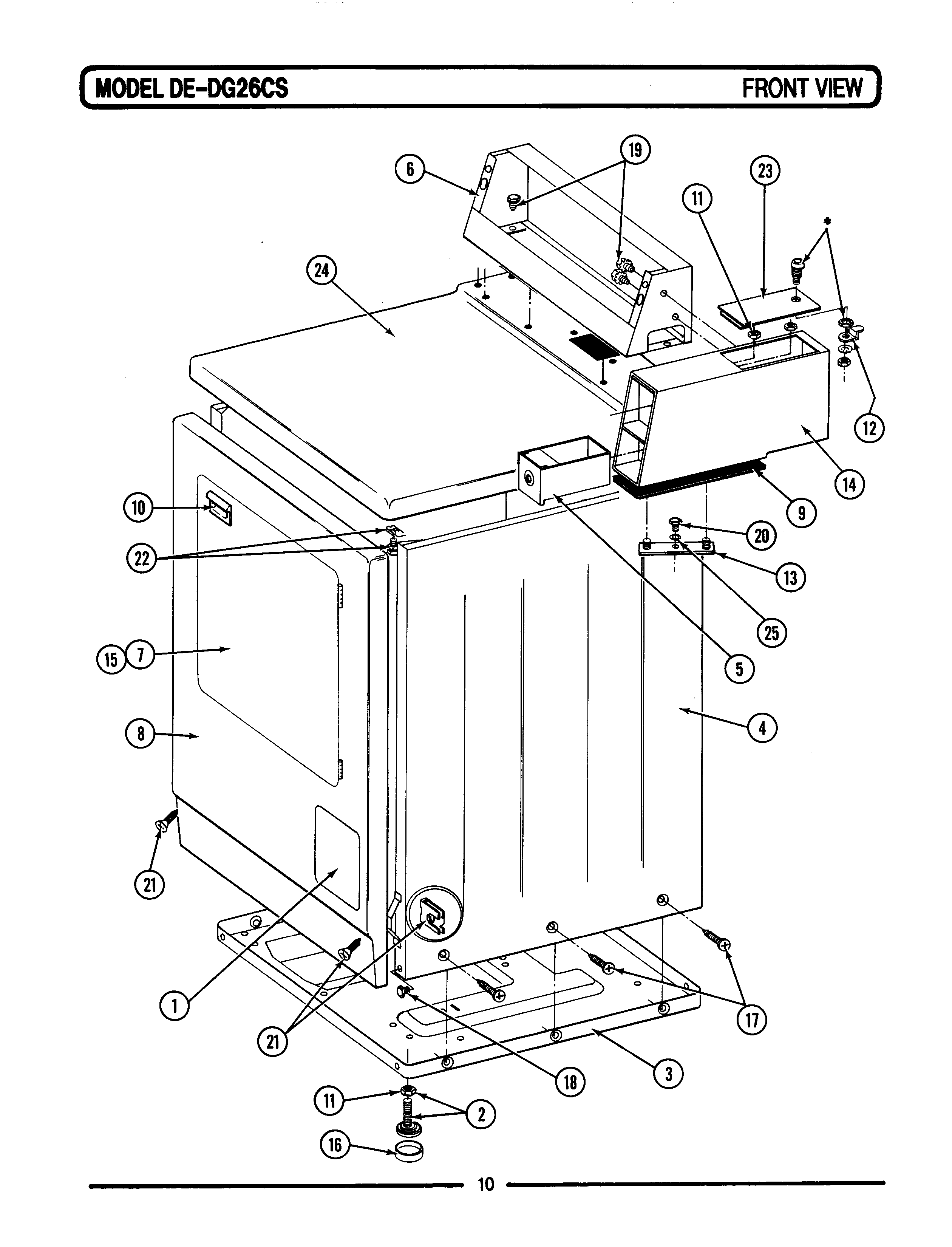

DE26CS 04 – FRONT VIEW

DE26CS 04 – FRONT VIEW

Written by

in

DE26CS 04 – FRONT VIEW

Products

Position	Product
002	W10176519 Whirlpool Leveling Feet
003	MAY Y303361
005	MAY 205423M
005	COIN BOX-WHITE
005	COIN BOX-ALMOND
007	MAY Y307111
009	MAY 214660
010	MAY 314946
010	MAY 314972
011	WP62739 Whirlpool Nut
012	W11165684 Whirlpool Cam
014	MAY 206956
014	MAY 206956L
014	MAY 206956M
015	MAY 314966
016	WPY314137 Whirlpool Rubber Foot
017	213007 Whirlpool Screw #12
018	MAY Y310632
019	MAY 212276
020	WP90767 Whirlpool Screw
021	SCREW & FSTNER ASSY (FT. PNL)
022	MAY 204445
023	MAY 203188M
023	ACCESS DOOR-ALMOND
023	MAY 203188
024	MAY 307105
024	DOWEL PIN FOR HANDLE
025	MAY 910309
