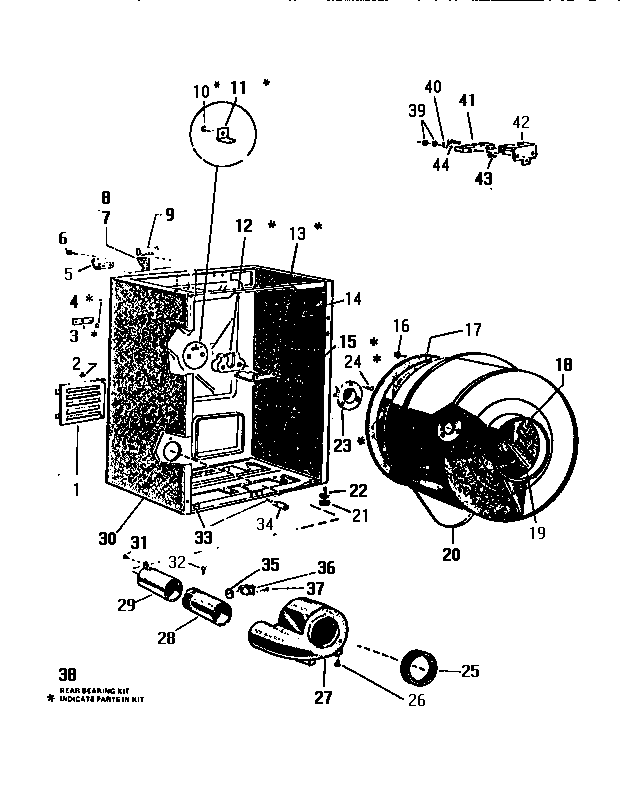

DE271EDW5 04 – BODY & DRUM

Products

Position	Product
1	WCI Q94811
3	SPEED NUT STRIP
4	BALL
5	WCI Q155561
7	WCI Q435098
8	WCI Q133283
9	WCI Q133281
11	BRACKET
12	BEARING
13	BRACKET
14	WCI Q505564
15	SCREW
16	SCREW (3)
17	WCI Q165773
18	SPINNER, BASKET
19B	WCI Q501592
19A	WCI Q615893
19	WCI Q615894
20	WCI Q63807
21	WCI Q16971
22	WCI Q16567
23	SHAFT
24	SCREW
25	WCI Q19462
26	SCREW (4)
27	WCI Q171281
28	DUCT, THERM.
29	WCI Q182901
30	BODY, WHITE (AVAILABLE DURING PRODUCTION ONLY)
32	SCREW (4)
33	WCI Q502956
34	WCI Q504281
35	WCI Q606131
36	THERMOSTAT, REGULAR HEAT
37	SCREW
38	REAR BEARING KIT (INCL. KEY NOS. 3,4,10-12,14,15,17,21)
39	WCI Q401002
40	WCI Q440092
41	TERMINAL BLOCK
42	WCI Q133288
43	WCI Q409702
44	WCI Q403005
