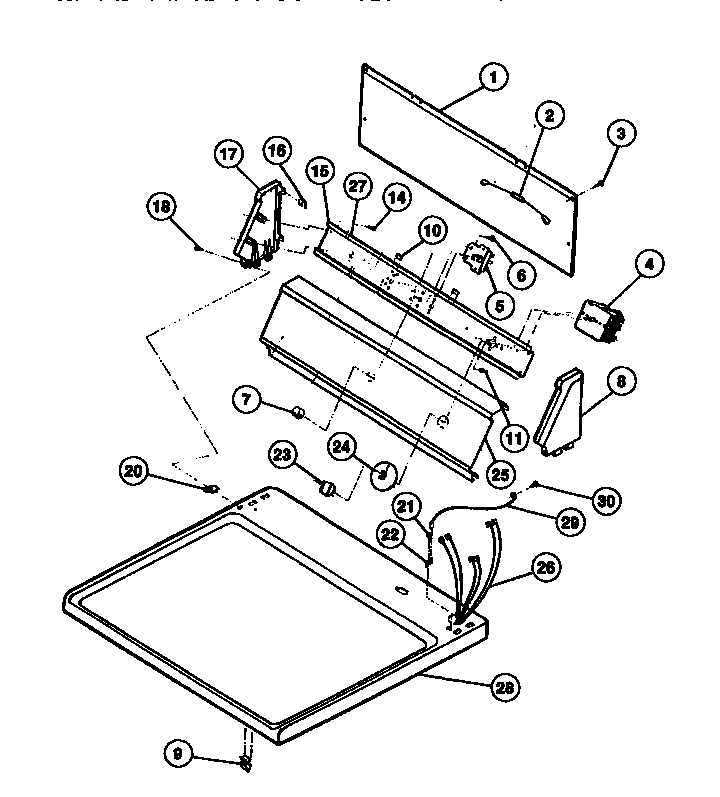

DE271KDD1 04 – CONSOLE AND CONTROL PARTS

Products

Position	Product
1	COVER-BACK
2	RESISTOR
3	SCREW
4	WCI Q000168603
5	SWITCH - START
6	WCI 08001544
7	WCI 3201222
8	WCI 3281191
9	SPRING CATCH
10	PAD
11	SCREW (2)
14	SCREW (2)
15	BRACKET-MOUNTING
16	WCI F140666-000
17	WCI 3281189
18	SCREW (2)
20	WCI 3281192
21	131243800 Frigidaire Screw
22	WCI F079171-000
23	WCI Q000617654
24	WCI 08015434
25	WCI Q000632351
26A	5303303590 Frigidaire Dryer 4.0" Cable Tie
26	WCI 3201389
27	CLIP-GROUND
29	WCI 3201308
30	SCREW (2)
