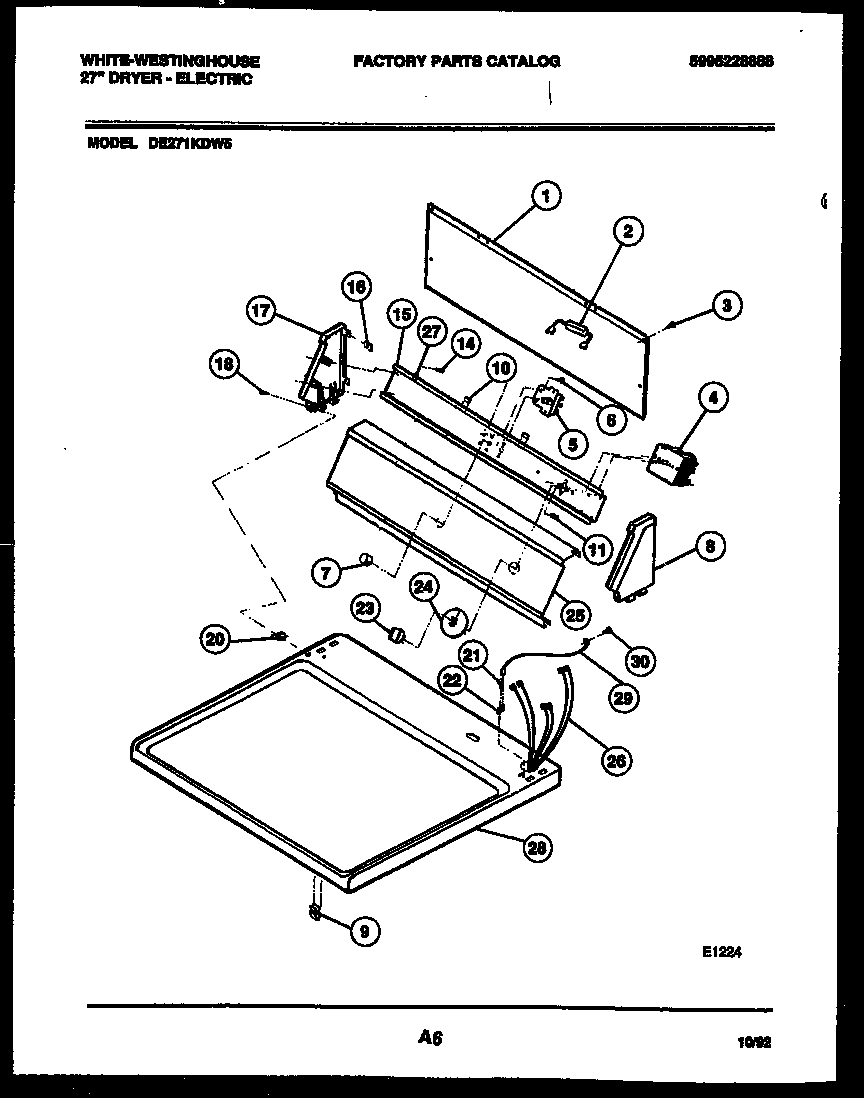

DE271KDW5 04 – CONSOLE AND CONTROL PARTS

Products

Position	Product
1	BACK COVER
2	RESISTOR
3	SCREW
4	WCI 5303292400
5	SWITCH – START
6	WCI 08001544
7	WCI 3201222
8	WCI 3205978
9	3205821 Frigidaire Clip
10	PAD (2)
11	218359202 Frigidaire Refrigerator Screw
14	SCREW (2)
15	WCI 5303285145
16	CLIP (8)
17	WCI 3205979
18	SCREW (2)
20	WCI 3281192
21	131243800 Frigidaire Screw
22	WCI 5379171000
23	WCI 5300617654
24	WCI 08015434
25	WCI 3206034
26A	5303303590 Frigidaire Dryer 4.0" Cable Tie
26	WCI 131007100
27	WCI 3281200
28	PANEL-TOP-WHITE
29	WCI 3201308
30	SCREW (2)
