DE271KDW7 04 – CONSOLE AND CONTROL PARTS

DE271KDW7 04 – CONSOLE AND CONTROL PARTS

Written by

in

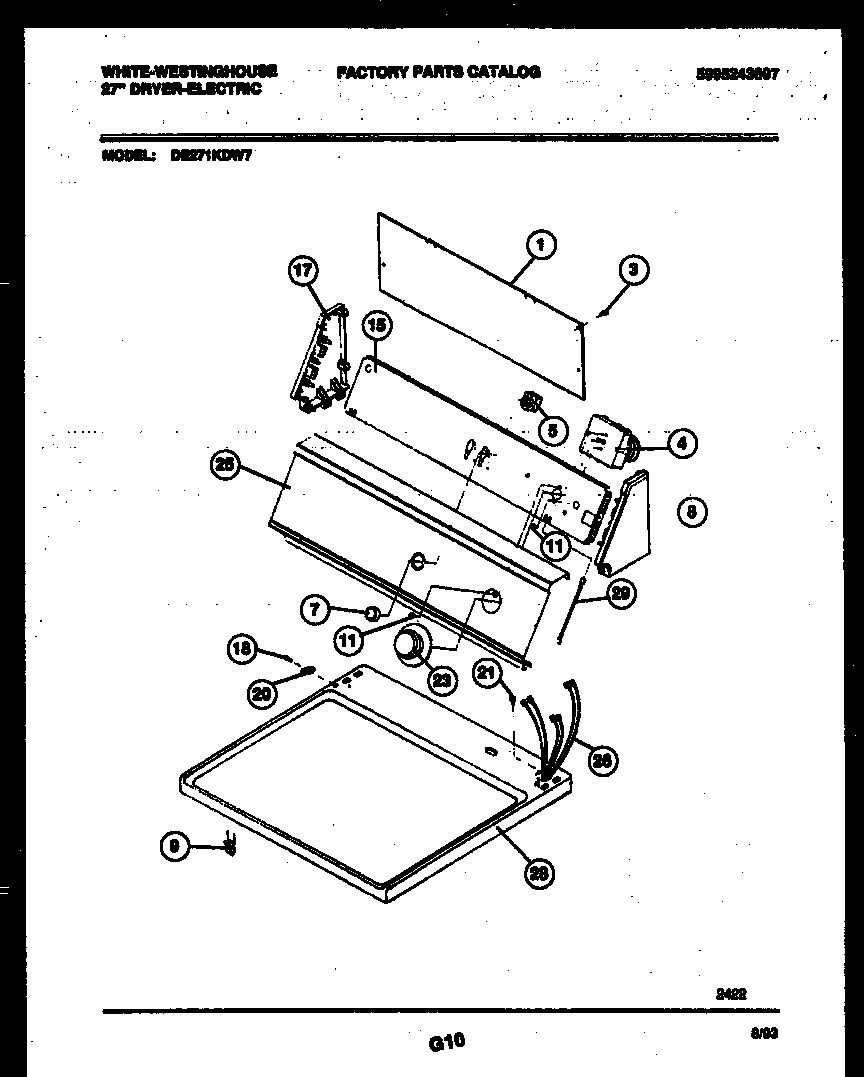

DE271KDW7 04 – CONSOLE AND CONTROL PARTS

Products

PositionProduct
1COVER-BACK
3131205100 Frigidaire Screw
4WCI 131063100
5WCI 131048000
7WCI 131032901
8WCI 5303291352
93205821 Frigidaire Clip
11218359202 Frigidaire Refrigerator Screw
15BRACKET – CONTROL
17WCI 5303291344
18WCI 5303289526
20CLIP
21131243800 Frigidaire Screw
23WCI 131118901
25WCI 131126300
26WCI 131158000
28PANEL-TOP-WHITE
29WCI 131062202
