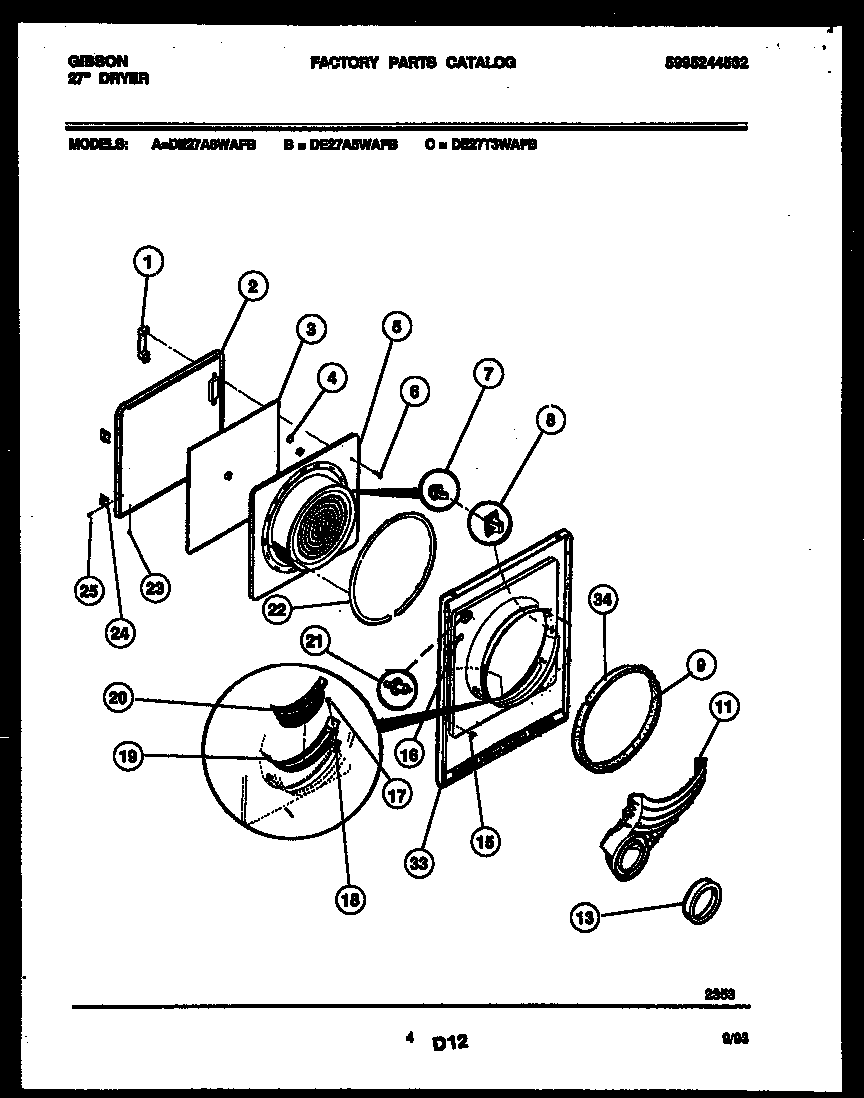

DE27A5WAFB 03 – DOOR PARTS

DE27A5WAFB 03 – DOOR PARTS

Written by

in

DE27A5WAFB 03 – DOOR PARTS

Products

PositionProduct
1WCI 5303288839
2PANEL-O.D. ALMD
2PANEL-O.D. WHITE
3SHIELD, HEAT
4WCI 3201205
5PANEL-I.D. ALMD
5PANEL – ID WHITE
6WCI 5303281051
75303207102 Frigidaire Door Strike
8131658800 Frigidaire Dryer Door Catch Repair Kit
9WCI 5303281049
11DUCT-AIR
13134417000 Frigidaire Seal
15CLIP GUIDE (4)
16CLIP
17131420300 Frigidaire Screw
18CLIP
20TRAP-LINT
21SWITCH-DOOR
22GASKET, DOOR
24HINGE, DOOR (2)
25SCREW (8)
33WCI 5303937118
33PANEL, FRONT, ALMOND
345303937139 Frigidaire Dryer Felt Seal and Glide Kit Drum
