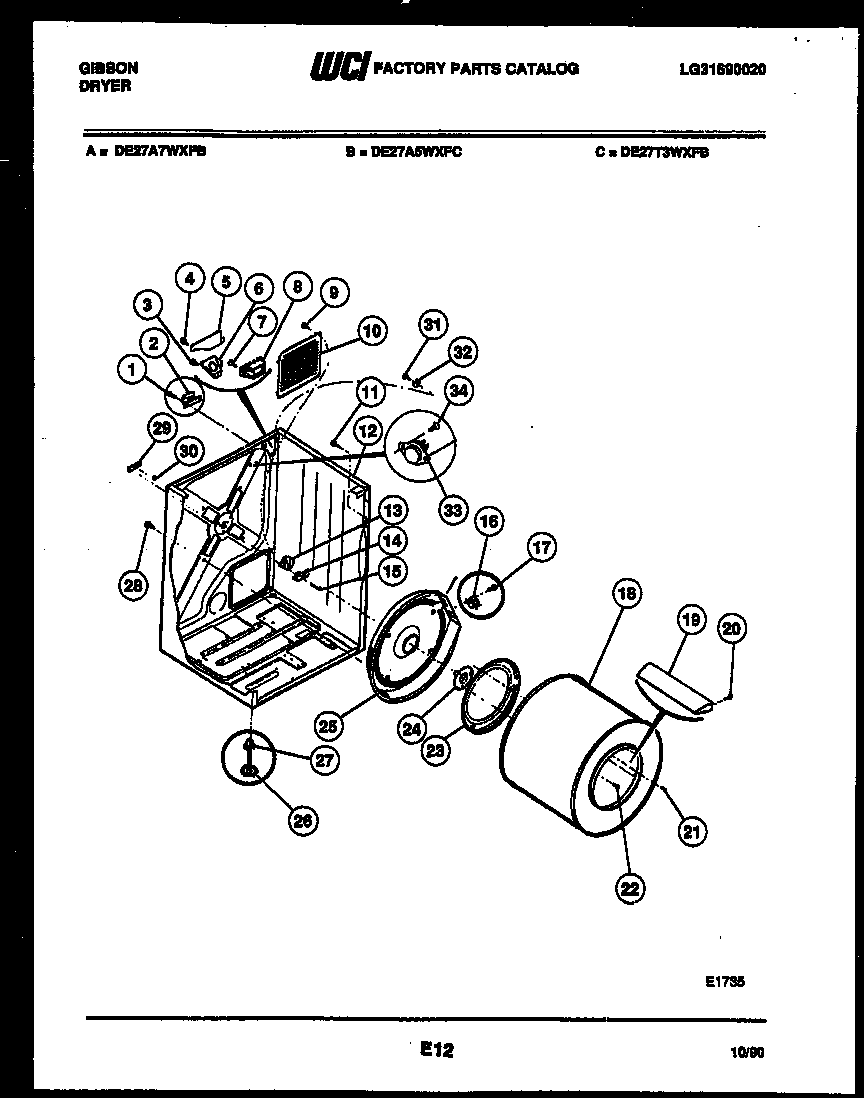

DE27A5WXFC 02 – CABINET AND COMPONENT PARTS

DE27A5WXFC 02 – CABINET AND COMPONENT PARTS

Written by

in

DE27A5WXFC 02 – CABINET AND COMPONENT PARTS

Products

PositionProduct
*31564WCI 5303281153]
1WCI 08011338
2WCI 3205811
45303015671 Frigidaire Bracket Termination Screw
5WCI 5303211428
6WCI 3281040
7WCI 5308015309
8134037400 Frigidaire Block
10WCI 5303211429
12CABINET ASSEMBLY (ALMOND) (1)
12CABINET ASSEMBLY (WHITE) (1)
12CABINET ASSEMBLY (HARVEST WHEAT) (1)
13131825900 Frigidaire Dryer Rear Drum Bearing Support Cup White
14131724301 Frigidaire Dryer Drum Bearing Bracket
15131205400 Frigidaire Screw
16WCI 5303281113
17SCREW
18DRUM (1)
19137552900 Frigidaire Vane
20131382300 Frigidaire Screw-VANE
21WCI 5303207393
22SCREW (3) (PART OF REAR BEARING KIT.)
233204254 Frigidaire Baffle Assembly
245303931781 Frigidaire Shaft
253937010 Frigidaire Dryer Heating Element Coil Kit
26BOLT-FOOT (4)
27WCI 3201202
28WCI 5303010202
295303281020 Frigidaire Ball Clip
305303281019 Frigidaire Ball Assembly
31134154100 Frigidaire Screw 10-32 x 0.375 Co
32WASHER
33134120900 Frigidaire Dryer Limiter Thermal
34WCI 08010804
