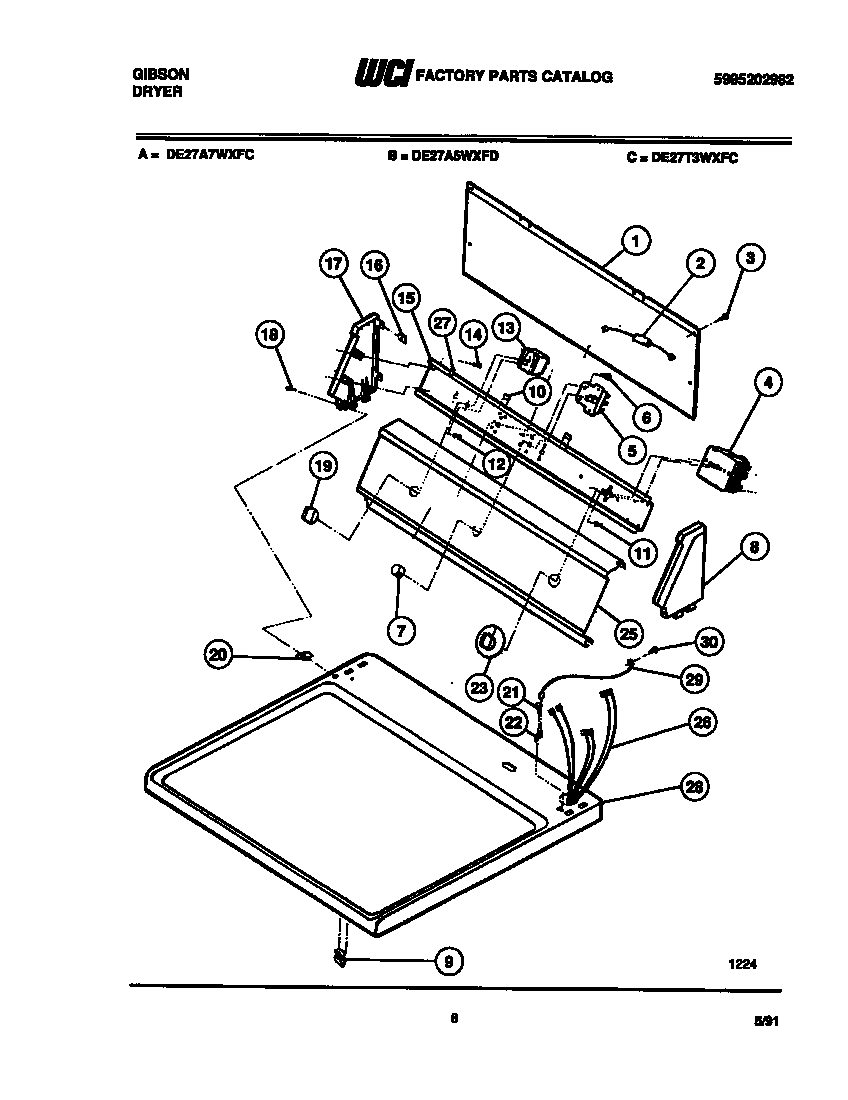

DE27A5WXFD 03 – CONSOL AND CONTROL PARTS

Products

Position	Product
*19602	WCI 08010804
*19603	HARNESS, BUZZER (NON-ILLUSTRATED)
*19601	WCI 5308004087
1	COVER-BACK
2	RESISTOR, 3.0K
2	RESISTOR
5	SWITCH – START
6	WCI 08001544
7	WCI 3201220
8	WCI 3205840
9	3205821 Frigidaire Clip
10	PAD (2)
11	SCREW (2)
14	5303015671 Frigidaire Bracket Termination Screw
15	WCI 5303210137
16	CLIP (8)
17	WCI 3205842
18	SCREW (2)
20	CLIP
21	131243800 Frigidaire Screw
22	WCI 5379171000
23	WCI 3205843
25	WCI 5303211433
26	WCI 5303270869
26	5303303590 Frigidaire Dryer 4.0" Cable Tie
27	WCI 3281200
28	PANEL-TOP-WHITE
28	PANEL TOP-ALMOND
28	TOP PANEL-WHEAT
29	WCI 3201308
30	SCREW (2)
