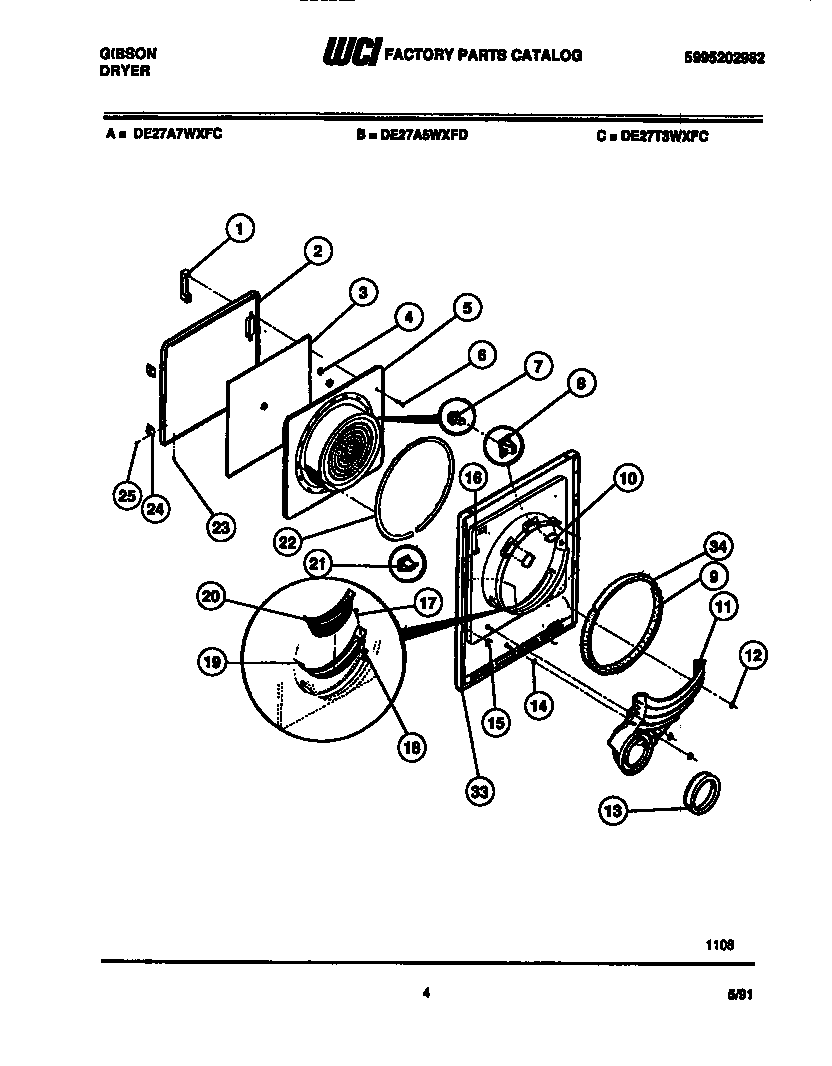

DE27A5WXFE 03 – DOOR PARTS

Products

Position	Product
1	WCI 5303281053
2	PANEL-O.D. ALMD
2	PANEL-O.D. WHITE
3	SHIELD, HEAT
4A	WCI 3201205
4	SPACER (2)
5	PANEL-I.D. ALMD
5	PANEL - ID WHITE
6	WCI 5303281051
7	5303207102 Frigidaire Door Strike
8	131658800 Frigidaire Dryer Door Catch Repair Kit
9	WCI 5303281049
11	WCI 5308015173
12	WCI 3281089
13	134417000 Frigidaire Seal
14	5300809968 Frigidaire Dishwasher P-1 Washer
15	CLIP GUIDE (4)
16	CLIP
17	131420300 Frigidaire Screw
18	CLIP
19	WCI 5303281060
20	WCI 5303281059
21	SWITCH-DOOR
22	GASKET, DOOR
24	HINGE, DOOR (2)
25	SCREW (8)
33	WCI 5303284107
33	WCI 5303937093
34	5303937139 Frigidaire Dryer Felt Seal and Glide Kit Drum
