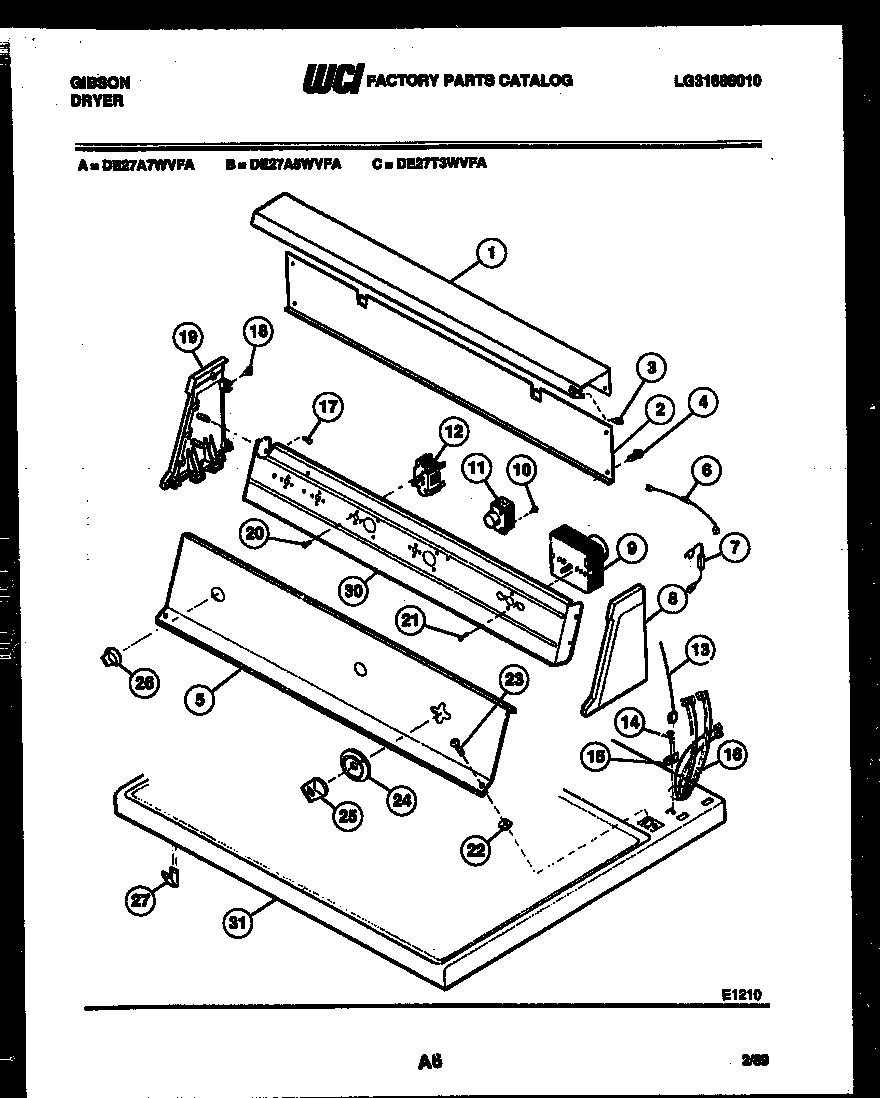

DE27A7WVFA 04 – CONSOLE AND CONTROL PARTS

Products

Position	Product
1	WCI 3201681
2	WCI 3201349
3	WCI 0801825
4	5303015671 Frigidaire Bracket Termination Screw
5	WCI 3201682
6	RESISTOR
8	WCI 3201685
9	WCI 3201383
10	WCI 08010804
11	WCI 01132293
12	WCI 3201615
13	WCI 3201385
14	131243800 Frigidaire Screw
15	WCI 3161198
16	WCI 3201307
16A	5303303590 Frigidaire Dryer 4.0" Cable Tie
17	131205100 Frigidaire Screw
18	WCI F139577-000
19	WCI 3201686
20	WCI 3161259
21	SCREW (2)
22	WCI 08001912
23	WCI F140203-000
24	WCI 08015702
25	KNOB TIMER
26	WCI 08008462
27	SPRING CATCH
30	BRACKET-CONTROL
31	PANEL TOP-ALMOND
31	PANEL-TOP-WHITE
