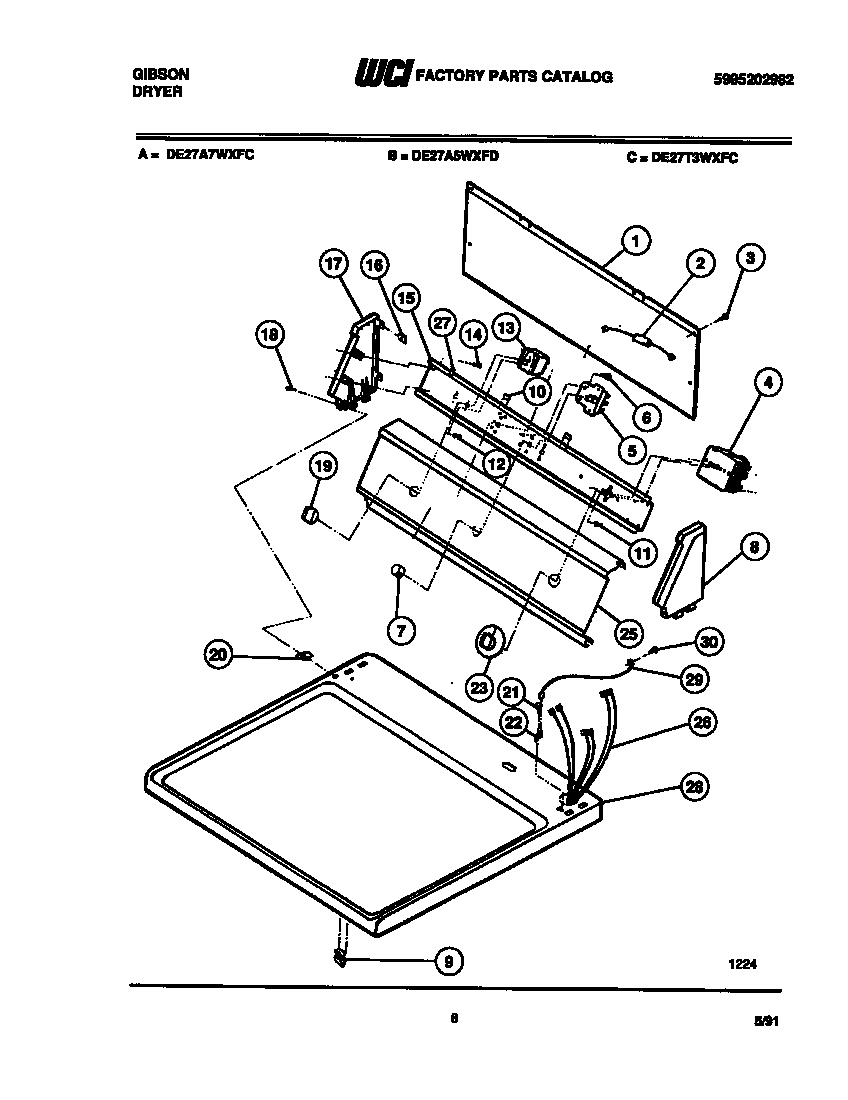

DE27A7WXFC 03 – CONSOL AND CONTROL PARTS

Written by

Products

Position	Product
1	COVER-BACK
2	RESISTOR
4A	WCI 5300630113
4B	WCI 5303211432
5	SWITCH – START
6	WCI 08001544
7	WCI 3201220
8	WCI 3205840
9	3205821 Frigidaire Clip
10	PAD (2)
11	SCREW (2)
12	WCI 3281101
13	WCI 5303281187
14	5303015671 Frigidaire Bracket Termination Screw
15	WCI 5303210137
16	CLIP (8)
17	WCI 3205842
18	SCREW (2)
19	WCI 5308015435
20	CLIP
21	131243800 Frigidaire Screw
22	WCI 5379171000
23	WCI 3205843
25	WCI 3206309
26	WCI 5303270867
26	5303303590 Frigidaire Dryer 4.0" Cable Tie
27	WCI 3281200
28	PANEL-TOP-WHITE
28	PANEL TOP-ALMOND
29	WCI 3201308
30	SCREW (2)
